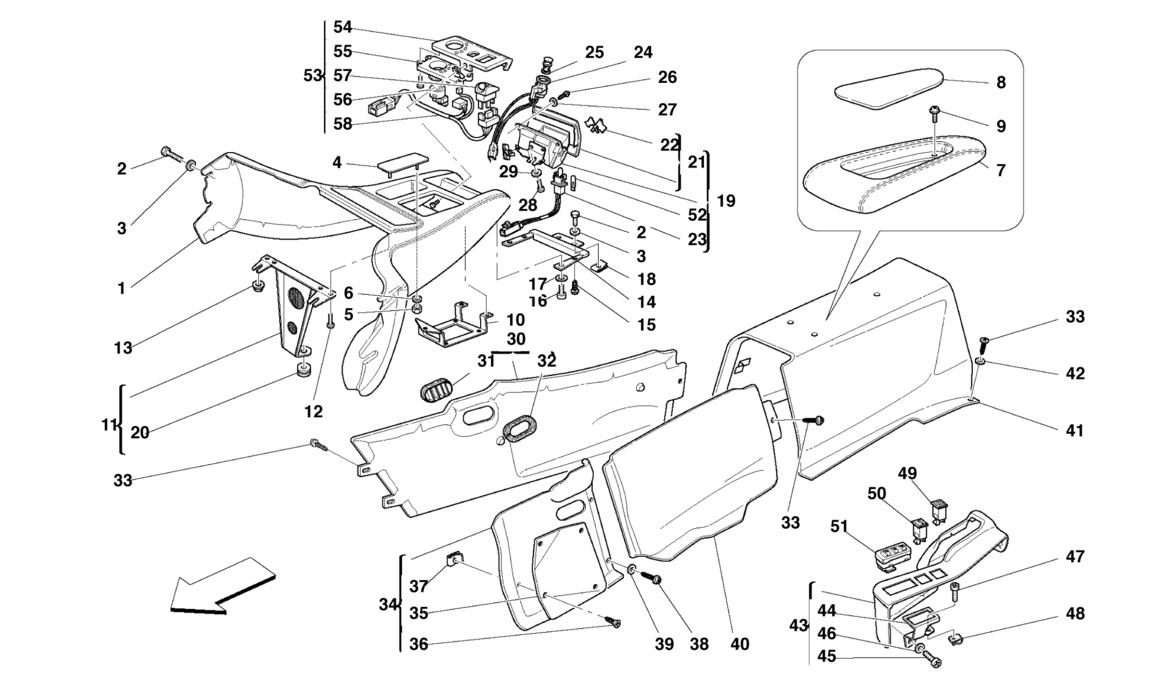

TUNNEL - FRAMEWORK AND ACCESSORIES

Go to Split View

TUNNEL - FRAMEWORK AND ACCESSORIES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 685908.. *Qty: 1 TUNNEL CONSOLE -Not for RHD- Unavailable
Location: 1 Prev | Next Part: 690997.. *Qty: 1 LINING -Not for RHD- Unavailable
Location: 1 Prev | Next Part: 690528.. *Qty: 1 TUNNEL CONSOLE -Valid for RHD- -Not for F1- Unavailable
Location: 1 Prev | Next Part: 692001.. *Qty: 1 LINING -Valid for RHD- -Not for F1- Unavailable
Location: 1 Prev | Next Part: 692721.. *Qty: 1 TUNNEL CONSOLE -Valid for RHD- -Valid for F1- Unavailable
Location: 1 Prev | Next Part: 667873.. *Qty: 1 LINING -Valid for RHD- -Valid for F1- -Not as spare part- -Replaced by 693959..- Unavailable
Location: 1 Prev | Next Part: 693959.. *Qty: 1 LINING -Valid for RHD- -Valid for F1- Unavailable
Location: 2 Prev | Next Part: 16297024 *Qty: 6 SCREW $0.90
Location: 3 Prev | Next Part: 12643724 *Qty: 6 WASHER Superseded
Location: 4 Prev | Next Part: 662271.. *Qty: 1 FRONT COMPARTMENT CARPET SHIELD -Not for RHD not F1- Unavailable
Location: 5 Prev | Next Part: 13046011 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 14446901 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 688368.. *Qty: 1 REAR GLOVE COMPARTMENT Unavailable
Location: 8 Prev | Next Part: 688371.. *Qty: 1 END PLATE Unavailable
Location: 9 Prev | Next Part: 13273811 *Qty: 3 SCREW $0.90
Location: 10 Prev | Next Part: 65046200 *Qty: 1 BRACKET -Valid for F1- $25.02
Location: 11 Prev | Next Part: 66400600 *Qty: 1 BRACKET $34.48
Location: 12 Prev | Next Part: 15688875 *Qty: 4 SCREW $0.90
Location: 13 Prev | Next Part: 14039614 *Qty: 2 NUT $0.90
Location: 14 Prev | Next Part: 66228000 *Qty: 1 REAR BRACKET $323.98
Location: 15 Prev | Next Part: 15781977 *Qty: 2 SCREW Unavailable
Location: 16 Prev | Next Part: 13273811 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: 12637878 *Qty: 2 WASHER Unavailable
Location: 18 Prev | Next Part: 62766300 *Qty: 2 CLIP FOR SCREW $0.90
Location: 19 Prev | Next Part: 66226400 *Qty: 1 COMPLETE ASH TRAY -Not for RHD- $926.84
Location: 19 Prev | Next Part: 66831200 *Qty: 1 COMPLETE ASH TRAY -Valid for RHD- $996.87
Location: 20 Prev | Next Part: 10396380 *Qty: 1 CABLE GROMMET $0.90
Location: 21 Prev | Next Part: 662265.. *Qty: 1 ASH TRAY DOOR Unavailable
Location: 22 Prev | Next Part: 64460400 *Qty: 1 FERRARI-PININFARINA MARK Unavailable
Location: 23 Prev | Next Part: 188731 *Qty: 1 YELLOW LIGHT LINK CABLE Unavailable
Location: 24 Prev | Next Part: 188730 *Qty: 1 CIGAR LIGHTER BODY $43.26
Location: 25 Prev | Next Part: 183270 *Qty: 1 CIGAR LIGHTER $23.26
Location: 26 Prev | Next Part: 15690678 *Qty: 2 SCREW Unavailable
Location: 27 Prev | Next Part: 13337347 *Qty: 2 WASHER $3.08
Location: 28 Prev | Next Part: 13273811 *Qty: 1 SCREW $0.90
Location: 29 Prev | Next Part: 12637878 *Qty: 1 WASHER Unavailable
Location: 30 Prev | Next Part: 660878.. *Qty: 1 R.H. LATERAL COVER -Not for RHD- -Not as spare part- -Replaced by 693114..- Unavailable
Location: 30 Prev | Next Part: 693114.. *Qty: 1 R.H. LATERAL COVER -Not for RHD- Unavailable
Location: 30 Prev | Next Part: 693124.. *Qty: 1 R.H. LATERAL COVER -Valid for RHD- Unavailable
Location: 31 Prev | Next Part: 63783700 *Qty: 2 AIR OPENING $53.99
Location: 32 Prev | Next Part: 63783800 *Qty: 2 GASKET $10.08
Location: 33 Prev | Next Part: 62771900 *Qty: 6 SCREW $0.90
Location: 34 Prev | Next Part: 645852.. *Qty: 1 L.H. FRONT LATERAL COVER -Not for RHD- -Not as spare part- -Replaced by 693116..- Unavailable
Location: 34 Prev | Next Part: 693116.. *Qty: 1 L.H. FRONT LATERAL COVER -Not for RHD- Unavailable
Location: 34 Prev | Next Part: 693122.. *Qty: 1 L.H. FRONT LATERAL COVER -Valid for RHD- Unavailable
Location: 35 Prev | Next Part: 63784900 *Qty: 1 PROTECTION PLATE -Not for RHD- $40.72
Location: 36 Prev | Next Part: 15909377 *Qty: 2 SCREW $0.90
Location: 37 Prev | Next Part: 61142100 *Qty: 2 BRACKET $0.90
Location: 38 Prev | Next Part: 15692577 *Qty: 2 SCREW $0.90
Location: 39 Prev | Next Part: 12611307 *Qty: 2 WASHER $0.90
Location: 40 Prev | Next Part: 660877.. *Qty: 1 L.H. CENTRAL LATERAL COVER -Not for RHD- -Not as spare part- -Replaced by 693118..- Unavailable
Location: 40 Prev | Next Part: 693118.. *Qty: 1 L.H. CENTRAL LATERAL COVER -Not for RHD- Unavailable
Location: 40 Prev | Next Part: 693120.. *Qty: 1 L.H. CENTRAL LATERAL COVER -Valid for RHD- Unavailable
Location: 41 Prev | Next Part: 688364.. *Qty: 1 TUNNEL REAR COVER -Not for RHD- Unavailable
Location: 41 Prev | Next Part: 666581.. *Qty: 1 TUNNEL REAR COVER -Valid for RHD- Unavailable
Location: 42 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 43 Prev | Next Part: 660873.. *Qty: 1 MOULDING FOR HAND-BRAKE LEVER -Not for RHD- Unavailable
Location: 43 Prev | Next Part: 666339.. *Qty: 1 MOULDING FOR HAND-BRAKE LEVER -Valid for RHD- Unavailable
Location: 43 Prev | Next Part: 66835800 *Qty: 1 MOULDING FOR HAND-BRAKE LEVER -Carbon- -Optional- -Not for RHD- Unavailable
Location: 43 Prev | Next Part: 66837800 *Qty: 1 MOULDING FOR HAND-BRAKE LEVER -Carbon- -Optional- -Valid for RHD- Unavailable
Location: 43 Prev | Next Part: 668327.. *Qty: 1 MOULDING FOR HAND-BRAKE LEVER -Optional- -Valid for sport seat- -Not for RHD- Unavailable
Location: 43 Prev | Next Part: 668332.. *Qty: 1 MOULDING FOR HAND-BRAKE LEVER -Optional- -Valid for sport seat- -Valid for RHD- Unavailable
Location: 43 Prev | Next Part: 66835700 *Qty: 1 MOULDING FOR HAND-BRAKE LEVER -Valid for sport seat- -Carbon- -Optional- -Not for RHD- $1,812.67
Location: 43 Prev | Next Part: 66837700 *Qty: 1 MOULDING FOR HAND-BRAKE LEVER -Valid for sport seat- -Carbon- -Optional- -Valid for RHD- Unavailable
Location: 44 Prev | Next Part: 66176200 *Qty: 1 BRACKET -Not for sport seat- -Not for RHD- $71.04
Location: 44 Prev | Next Part: 66764000 *Qty: 1 BRACKET -Not for sport seat- -Valid for RHD- $71.04
Location: 45 Prev | Next Part: 13273811 *Qty: 2 SCREW -Not for sport seat- $0.90
Location: 46 Prev | Next Part: 12638104 *Qty: 4 WASHER -Not for sport seat- $0.90
Location: 47 Prev | Next Part: 15689601 *Qty: 1 SCREW -Not for sport seat- $0.90
Location: 48 Prev | Next Part: 14371971 *Qty: 1 CLIP -Not for sport seat- Unavailable
Location: 49 Prev | Next Part: 188725 *Qty: 1 FUEL DOOR CONTROL PUSH-BUTTON $113.80
Location: 50 Prev | Next Part: 188724 *Qty: 1 REAR HOOD OPENING PUSH BUTTON Unavailable
Location: 51 Prev | Next Part: 174766 *Qty: 1 SEAT MEMORIES CONTROL SWITCH PANEL -Not for sport seat- $201.07
Location: 52 Prev | Next Part: 194307 *Qty: 1 BULB $2.26
Location: 53 Prev | Next Part: 68993400 *Qty: 1 COMPLETE ROOF CONTROLS PLATE $2,100.93
Location: 54 Prev | Next Part: 68993500 *Qty: 1 ROOF CONTROLS PLATE $1,795.05
Location: 55 Prev | Next Part: 68993600 *Qty: 1 ELETTROCROMIA CONTROL SUPPORT Unavailable
Location: 56 Prev | Next Part: 218796 *Qty: 1 KNOB $52.35
Location: 57 Prev | Next Part: 180709 *Qty: 1 CAPOTE BUTTON $124.15
Location: 58 Prev | Next Part: 216389 *Qty: 1 CABLE FOR CABLE $188.48

* Quantity shown indicates the number of pieces used in the diagram.
