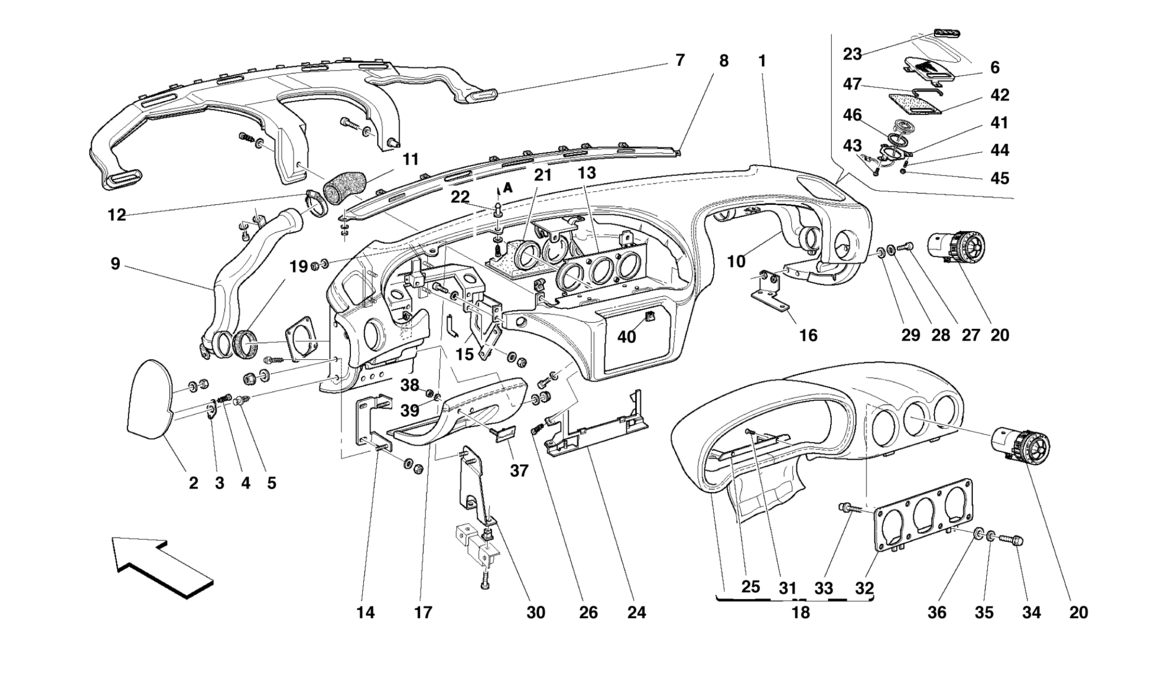

INSTRUMENTS PANEL

Go to Split View

INSTRUMENTS PANEL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 690985.. *Qty: 1 COVERED DASHBOARD WITH INSTRUMENTS -Not for RHD- Unavailable
Location: 1 Prev | Next Part: 690986.. *Qty: 1 COVERED DASHBOARD WITH INSTRUMENTS -Valid for RHD- Unavailable
Location: 2 Prev | Next Part: 647665.. *Qty: 1 L.H. LATERAL COVER Unavailable
Location: 2 Prev | Next Part: 668052.. *Qty: 1 L.H. LATERAL COVER -Valid for cars with passenger air-bag exclusion- -Optional- -Valid for RHD- Unavailable
Location: 2 Prev | Next Part: 647668.. *Qty: 1 R.H. LATERAL COVER Unavailable
Location: 2 Prev | Next Part: 660807.. *Qty: 1 R.H. LATERAL COVER -Valid for cars with passenger air-bag exclusion- -Optional- -Not for RHD- Unavailable
Location: 3 Prev | Next Part: 64712800 *Qty: 4 PLATE $1.90
Location: 4 Prev | Next Part: 15914877 *Qty: 8 SCREW $0.90
Location: 5 Prev | Next Part: 14188181 *Qty: 4 RETAINER $0.90
Location: 6 Prev | Next Part: 63204200 *Qty: 1 R.H. TWEETER PLATE $94.92
Location: 6 Prev | Next Part: 63204300 *Qty: 1 L.H. TWEETER PLATE $94.92
Location: 7 Prev | Next Part: 64707400 *Qty: 1 AIR DUCTING -Not for RHD- $770.92
Location: 7 Prev | Next Part: 65024100 *Qty: 1 AIR DUCTING -Valid for RHD- $770.95
Location: 8 Prev | Next Part: 63202100 *Qty: 1 WINDSCREEN LOWER ENCLOSURE Unavailable
Location: 9 Prev | Next Part: 64706200 *Qty: 1 L.H. AIR DUCTING -Not for RHD- $27.94
Location: 9 Prev | Next Part: 65212200 *Qty: 1 L.H. AIR DUCTING -Valid for RHD- $21.78
Location: 10 Prev | Next Part: 64706300 *Qty: 1 R.H. AIR DUCTING -Not for RHD- $27.94
Location: 10 Prev | Next Part: 65212100 *Qty: 1 R.H. AIR DUCTING -Valid for RHD- $21.78
Location: 11 Prev | Next Part: 64758200 *Qty: 1 L.H. SLEEVE -Not for RHD- $55.85
Location: 11 Prev | Next Part: 65217300 *Qty: 1 L.H. SLEEVE -Valid for RHD- $61.45
Location: 11 Prev | Next Part: 64758100 *Qty: 1 R.H. SLEEVE -Not for RHD- $56.72
Location: 11 Prev | Next Part: 65216600 *Qty: 1 R.H. SLEEVE -Valid for RHD- $64.26
Location: 12 Prev | Next Part: 13000890 *Qty: 2 SCREW COLLAR $1.22
Location: 13 Prev | Next Part: 64719500 *Qty: 1 AIR DUCT CONNECTION Unavailable
Location: 14 Prev | Next Part: 64701500 *Qty: 1 DASHBOARD R.H. LATERAL FIXING BRACKET $283.52
Location: 14 Prev | Next Part: 64701700 *Qty: 1 DASHBOARD L.H. LATERAL FIXING BRACKET $283.52
Location: 15 Prev | Next Part: 66280600 *Qty: 1 BRACKET -Not for RHD- $187.44
Location: 15 Prev | Next Part: 66638400 *Qty: 1 BRACKET -Valid for RHD- $115.78
Location: 16 Prev | Next Part: 66839200 *Qty: 1 R.H. BRACKET -Not for RHD- $29.71
Location: 16 Prev | Next Part: 65024700 *Qty: 1 L.H. BRACKET -Valid for RHD- $67.05
Location: 17 Prev | Next Part: 647591.. *Qty: 1 L.H. LOWER COVER -Not for RHD- Unavailable
Location: 17 Prev | Next Part: 650250.. *Qty: 1 R.H. LOWER COVER -Valid for RHD- Unavailable
Location: 18 Prev | Next Part: 690797.. *Qty: 1 COVERED DASH BOARD -Not for RHD- -Not as spare part- -Replaced by 666808..- Unavailable
Location: 18 Prev | Next Part: 660808.. *Qty: 1 COVERED DASH BOARD -Not for RHD- Unavailable
Location: 18 Prev | Next Part: 692006.. *Qty: 1 COVERED DASH BOARD -Valid for RHD- -Not as spare part- -Replaced by 666326..- Unavailable
Location: 18 Prev | Next Part: 666326.. *Qty: 1 COVERED DASH BOARD -Valid for RHD- Unavailable
Location: 19 Prev | Next Part: 62188300 *Qty: 2 GASKET Unavailable
Location: 20 Prev | Next Part: 66853800 *Qty: 5 AIR OPENING $172.07
Location: 21 Prev | Next Part: 64587400 *Qty: 1 UNION FROM EVAPORATOR UNIT TO AIR OPENING -Not for RHD- $73.54
Location: 21 Prev | Next Part: 65024300 *Qty: 1 UNION FROM EVAPORATOR UNIT TO AIR OPENING -Valid for RHD- $75.40
Location: 22 Prev | Next Part: 65879900 *Qty: 3 PIN $19.76
Location: 23 Prev | Next Part: 63204000 *Qty: 1 R.H. AIR DIFFUSER $5.59
Location: 23 Prev | Next Part: 63204100 *Qty: 1 L.H. AIR DIFFUSER $5.59
Location: 24 Prev | Next Part: 66280100 *Qty: 1 CONSOLLE LOWER BRACKET $113.66
Location: 25 Prev | Next Part: 66285900 *Qty: 1 FRONT CENTRAL BRACKET -Not for RHD- $173.59
Location: 25 Prev | Next Part: 66785000 *Qty: 1 FRONT CENTRAL BRACKET -Valid for RHD- $58.67
Location: 26 Prev | Next Part: 15688875 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 28 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 29 Prev | Next Part: 12605374 *Qty: 2 WASHER Superseded
Location: 30 Prev | Next Part: 168961 *Qty: 1 OBDII CONNECTOR FIXING BRACKET -Not for RHD- Unavailable
Location: 30 Prev | Next Part: 193633 *Qty: 1 OBDII CONNECTOR FIXING BRACKET -Valid for RHD- $133.83
Location: 31 Prev | Next Part: 13298917 *Qty: 2 SCREW $0.90
Location: 32 Prev | Next Part: 66675800 *Qty: 1 BRACKET FOR AIR OPENINGS FIXING -Not for RHD- $189.03
Location: 32 Prev | Next Part: 66638000 *Qty: 1 BRACKET FOR AIR OPENINGS FIXING -Valid for RHD- $197.14
Location: 33 Prev | Next Part: 15688875 *Qty: 8 SCREW $0.90
Location: 34 Prev | Next Part: 16286124 *Qty: 4 SCREW $0.90
Location: 35 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 36 Prev | Next Part: 12643724 *Qty: 8 WASHER Superseded
Location: 37 Prev | Next Part: 69065010 *Qty: 1 CAMPIONI DEL MONDO 2004 MARK Unavailable
Location: 38 Prev | Next Part: 16101711 *Qty: 2 NUT $0.90
Location: 39 Prev | Next Part: 12544079 *Qty: 2 WASHER Unavailable
Location: 40 Prev | Next Part: 62766300 *Qty: 2 CLIP $0.90
Location: 41 Prev | Next Part: 66402100 *Qty: 1 R.H. BRACKET FOR TWEETER FIXING $46.64
Location: 41 Prev | Next Part: 66402200 *Qty: 1 L.H. BRACKET FOR TWEETER FIXING $46.64
Location: 42 Prev | Next Part: 66616800 *Qty: 2 TWEETER COVER $7.14
Location: 43 Prev | Next Part: 15783177 *Qty: 4 SCREW $2.80
Location: 44 Prev | Next Part: 63528100 *Qty: 2 THREADED PIN $19.84
Location: 45 Prev | Next Part: 14058311 *Qty: 2 NUT $0.90
Location: 46 Prev | Next Part: 66616900 *Qty: 2 ANTI-VIBRATION GASKET $7.28
Location: 47 Prev | Next Part: 65404300 *Qty: 2 FORK $2.76

* Quantity shown indicates the number of pieces used in the diagram.
