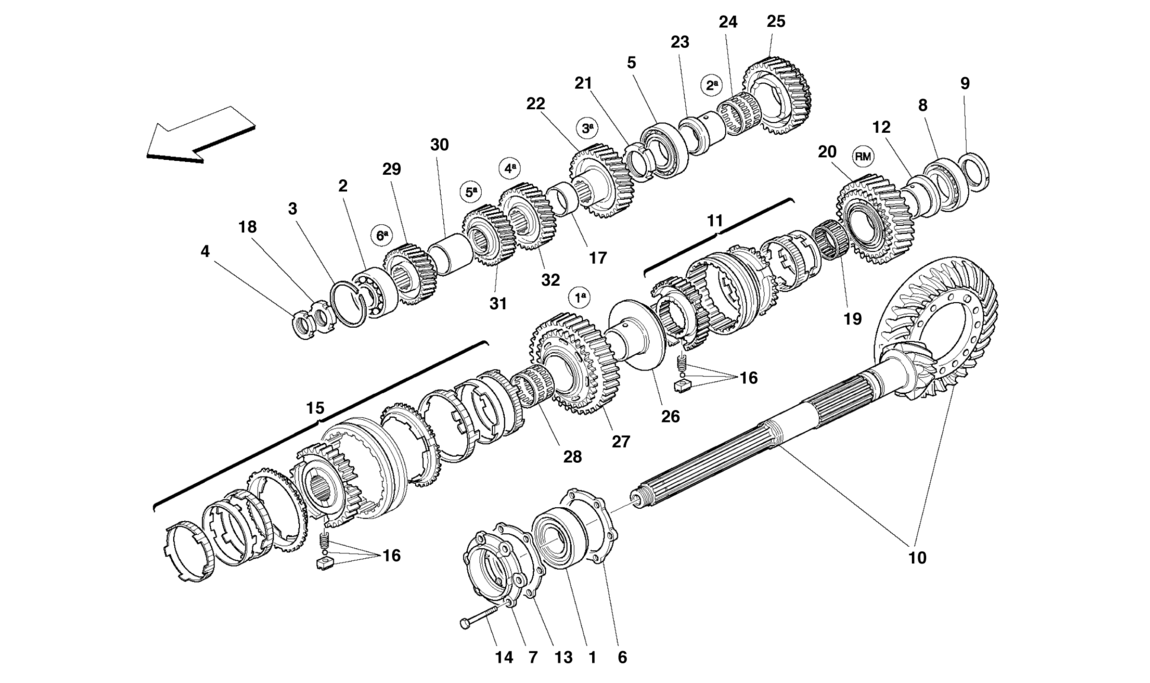

LAY SHAFT GEARS

Go to Split View

LAY SHAFT GEARS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 144498 *Qty: 1 BEARING FOR DRIVEN SHAFT DIFFERENTIAL SIDE $285.45
Location: 2 Prev | Next Part: 103030 *Qty: 1 ROLLER BEARING $243.84
Location: 3 Prev | Next Part: 144511 *Qty: 1 STOP RING $2.33
Location: 4 Prev | Next Part: 163684 *Qty: 1 RING NUT $21.57
Location: 5 Prev | Next Part: 131056 *Qty: 1 ROLLER BEARING $241.98
Location: 6 Prev | Next Part: 143924 *Qty: 1 RING $57.43
Location: 7 Prev | Next Part: 189460 *Qty: 1 BUSHING $186.93
Location: 8 Prev | Next Part: 189462 *Qty: 1 ROLLER BEARING $191.03
Location: 9 Prev | Next Part: 189459 *Qty: 1 SPACER $47.98
Location: 10 Prev | Next Part: 207262 *Qty: 1 COMPLETE BEVEL GEAR PAIR R.11/43 $1,789.55
Location: 11 Prev | Next Part: 189522 *Qty: 1 REVERSE GEAR COMPLETE SYNCHRONIZER $479.87
Location: 12 Prev | Next Part: 189525 *Qty: 1 BUSHING $109.69
Location: 13 Prev | Next Part: 155722 *Qty: 1 SPACER Thick. mm. 2,4 $18.88
Location: 14 Prev | Next Part: 16321430 *Qty: 6 SCREW $1.04
Location: 15 Prev | Next Part: 189587 *Qty: 1 1th AND 2th GEAR COMPLETE SYNCHRONIZER $1,313.11
Location: 16 Prev | Next Part: 194029 *Qty: 2 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $32.82
Location: 17 Prev | Next Part: 189701 *Qty: 1 SPACER $40.69
Location: 18 Prev | Next Part: 163670 *Qty: 1 RING NUT $65.97
Location: 19 Prev | Next Part: 150004 *Qty: 1 ROLLER CAGE $21.10
Location: 20 Prev | Next Part: 210497 *Qty: 1 REVERSE GEAR $830.35
Location: 21 Prev | Next Part: 189747 *Qty: 1 RING NUT $115.12
Location: 22 Prev | Next Part: 207261 *Qty: 1 PINION FOR 3RD GEAR $615.85
Location: 23 Prev | Next Part: 189590 *Qty: 1 BUSHING $209.05
Location: 24 Prev | Next Part: 189580 *Qty: 1 ROLLER CAGE $28.11
Location: 25 Prev | Next Part: 189589 *Qty: 1 PINION FOR 2nd GEAR $548.45
Location: 26 Prev | Next Part: 189579 *Qty: 1 BUSHING $412.39
Location: 27 Prev | Next Part: 189588 *Qty: 1 PINION FOR 1st GEAR $548.45
Location: 28 Prev | Next Part: 189580 *Qty: 1 ROLLER CAGE $28.11
Location: 29 Prev | Next Part: 189703 *Qty: 1 PINION FOR 6th GEAR $387.17
Location: 30 Prev | Next Part: 189702 *Qty: 1 SPACER $40.69
Location: 31 Prev | Next Part: 189670 *Qty: 1 PINION FOR 5th GEAR $401.80
Location: 32 Prev | Next Part: 189668 *Qty: 1 PINION FOR 4th GEAR $421.98

* Quantity shown indicates the number of pieces used in the diagram.
