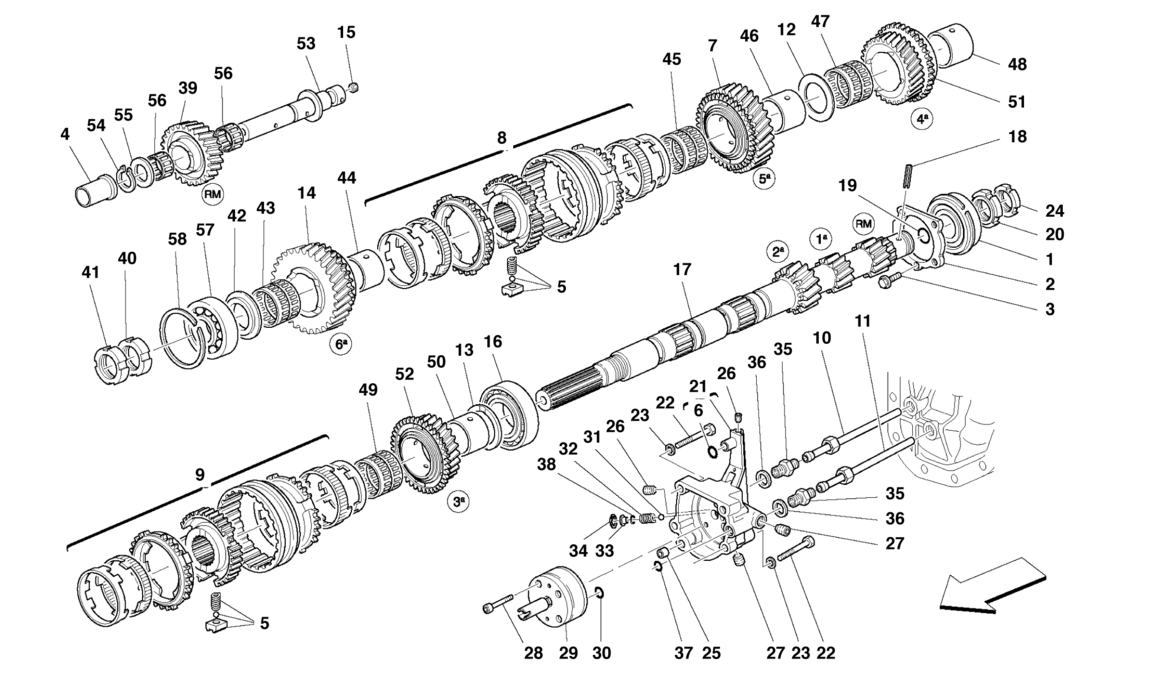

MAIN SHAFT GEARS AND CLUTCH OIL PUMP

Location Part # Quantity* Description Price Add To Cart
1 196155 1 COMPLETE OIL PUMP BODY $528.98
1 144502 1 BEARING FOR MAIN SHAFT PUMP OIL SIDE $227.34
2 144444 1 SUPPORT RING $67.34
3 16287124 1 SCREW $1.66
4 211961 1 SPACER BUSHING $23.67
5 194029 2 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $40.48
6 14452981 1 O.R. GASKET $1.97
7 197563 1 PINION FOR 5th GEAR $1,311.36
8 189689 1 5th AND 6th GEAR COMPLETE SYNCHRONIZER $925.66
9 189657 1 3th AND 4th GEAR COMPLETE SYNCHRONIZER $1,963.19
10 179660 1 OIL RETURN PIPE $127.67
11 179659 1 OIL DELIVERY TUBE $127.67
12 195810 1 RING $32.76
13 189700 1 RING $50.12
14 189693 1 PINION FOR 6th GEAR $925.66
15 189573 1 PLUG $6.33
16 131056 1 ROLLER BEARING $290.70
17 210495 1 MAIN SHAFT FOR GEAR LEVER $3,954.87
18 14601270 1 FLEXIBLE PIN Unavailable
19 109724 1 O.R. GASKET $1.81
20 163670 1 RING NUT $79.15
21 195013 1 OIL PUMP BODY -With complete oil pump body- Unavailable
22 16044321 4 SCREW Unavailable
23 12601374 4 WASHER $0.90
24 163684 1 RING NUT $25.86
25 102704 1 CENTERING DOWEL $4.24
26 14326150 2 PLUG Unavailable
27 10269550 2 PLUG Unavailable
28 14303474 4 SCREW Unavailable
29 185458 1 COMPLETE BEARBOX OIL PUMP $1,449.40
30 137192 1 O.R. GASKET $0.90
31 135770 1 BALL Unavailable
32 171889 1 SPRING $5.20
33 162315 1 SPACER Superseded
34 11057576 1 SEEGER RING Unavailable
35 150577 2 UNION $21.86
36 10257060 2 GASKET $0.90
37 137192 1 GASKET $0.90
38 14453281 1 GASKET $1.81
39 210496 1 IDLE GEAR FOR REVERSE $1,686.16
40 189707 1 RING NUT $70.01
41 189708 1 RING NUT $105.03
42 189704 1 SPACER -Th. mm. 3,9- $31.14
42 189709 1 SPACER -Th. mm. 4,15- $44.34
43 109002 1 ROLLER CAGE $40.58
44 189705 1 BUSHING $80.98
45 109002 1 ROLLER CAGE $40.58
46 195809 1 BUSHING $146.55
47 109002 1 ROLLER CAGE $40.58
48 195809 1 BUSHING $146.55
49 109002 1 ROLLER CAGE $40.58
50 189656 1 BUSHING $90.62
51 197562 1 PINION FOR 4th GEAR $2,264.04
52 189659 1 PINION FOR 3RD GEAR $925.66
53 211960 1 PIN $104.32
54 211962 1 FLEXIBLE RING $3.21
55 193891 1 SPACER WASHER $39.56
56 104256 2 ROLLER CAGE $13.78
57 103030 1 ROLLER BEARING $292.30
58 144511 1 STOP RING Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
