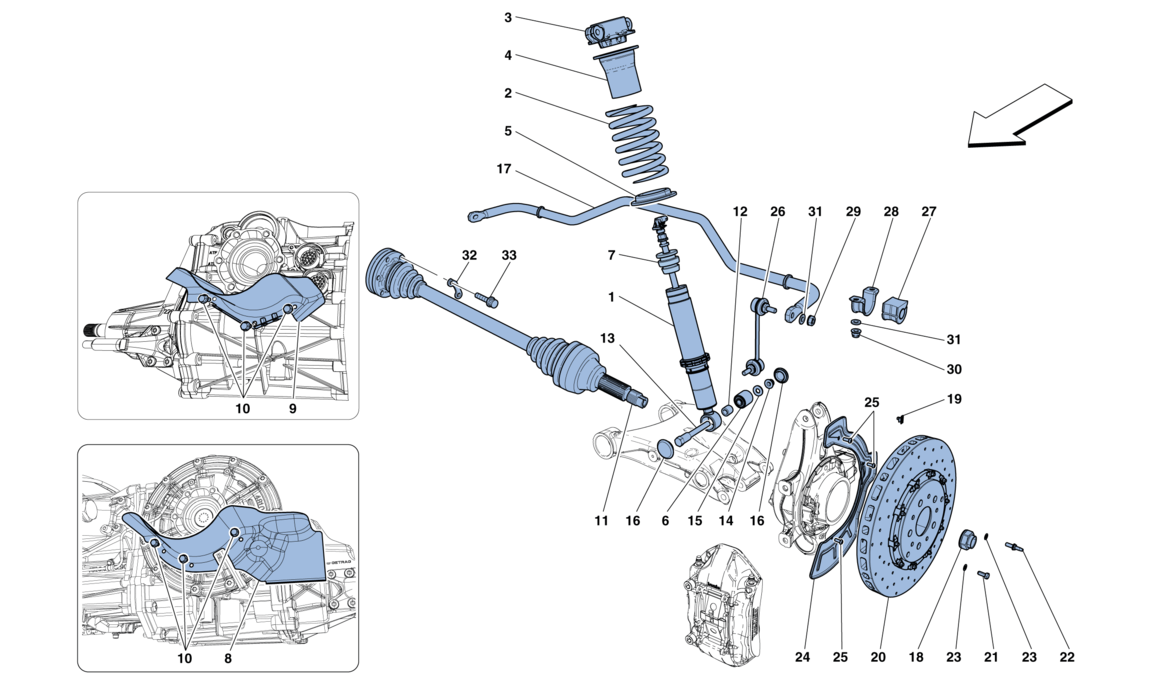

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Location Part # Quantity* Description Price Add To Cart
1 286346 2 REAR SHOCK ABSORBER $1,906.66
2 267376 2 SPRING $845.47
3 274308 2 STOP CAP $220.40
4 212517 2 UPPER SPACER $12.75
5 211236 2 LOWER SPACER $34.49
6 157630 2 SHOCK ABSORBER BUSHING $127.67
7 281221 2 ENDSTOP BUSH $43.12
8 259461 1 RH AXLE SHAFT HEAT SHIELD Unavailable
9 248707 1 LH AXLE SHAFT HEAT SHIELD $81.08
10 16296924 6 SCREW -M6 X 14- Unavailable
11 274635 2 AXLE SHAFT $1,174.48
12 237821 2 BUSHING $6.37
13 246962 2 SPECIAL SCREW $41.09
14 255271 2 NUT $1.81
15 12646921 2 WASHER $0.90
16 14507987 6 CAP $6.50
17 262790 1 STABILISER BAR $385.92
18 203780 2 NUT $30.43
19 204781 2 CLIP $1.16
20 278814 2 BRAKE DISC $5,093.19
21 228131 2 SCREW -M8 X 20- Unavailable
22 104370 2 SCREW Unavailable
23 228132 4 WASHER Unavailable
24 257424 1 RH DISC SHIELD $67.27
24 257423 1 LH DISC SHIELD $67.27
25 250657 6 SCREW -M6 X 14- $8.30
26 242392 1 LH SPHERICAL TIE-ROD $132.84
26 242391 1 RH SPHERICAL TIE-ROD $132.84
27 236242 2 STABILISER BAR BUSH $34.49
28 244778 2 RETAINER BRACKET $25.86
29 12164714 2 NUT $0.90
30 12578321 2 NUT Unavailable
31 12601474 4 WASHER Unavailable
32 220325 6 SHIM PLATE $5.16
33 237590 12 SCREW $6.37

* Quantity shown indicates the number of pieces used in the diagram.
