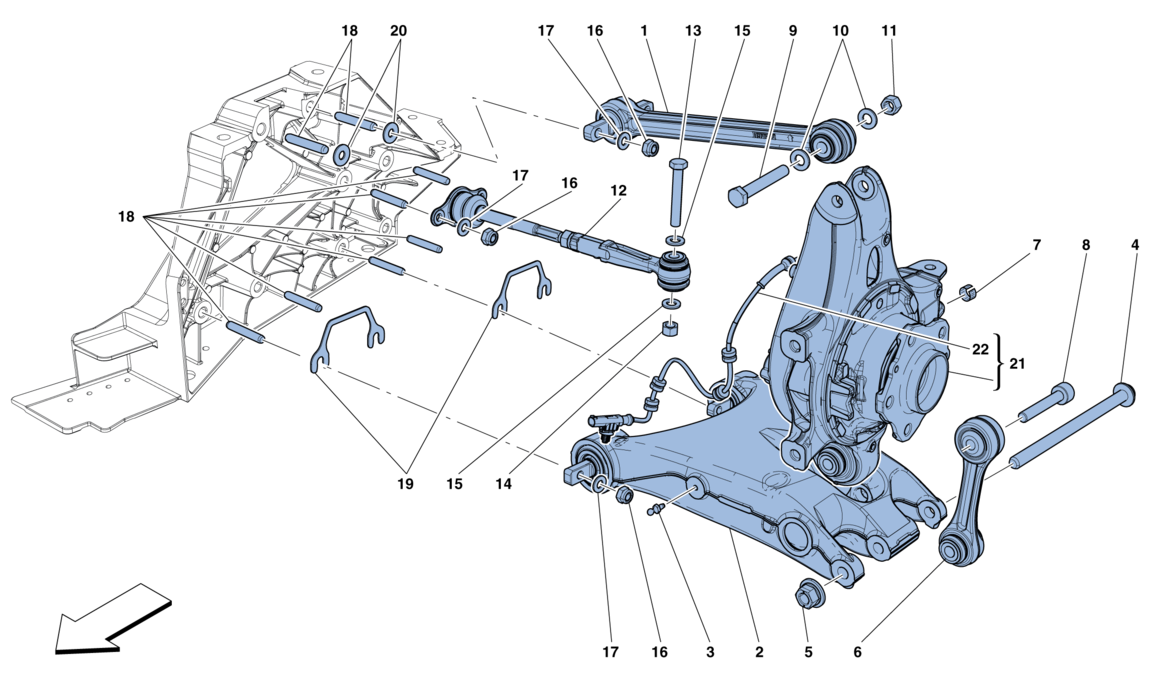

REAR SUSPENSION - ARMS

Go to Split View

REAR SUSPENSION - ARMS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 259687 *Qty: 2 COMPL. REAR UPPER ARM $414.83
Location: 2 Prev | Next Part: 262595 *Qty: 1 COMPL. RH REAR LOWER ARM $1,183.57
Location: 2 Prev | Next Part: 262594 *Qty: 1 COMPL. LH REAR LOWER ARM $1,352.65
Location: 3 Prev | Next Part: 216973 *Qty: 2 BALL JOINT $3.62
Location: 4 Prev | Next Part: 238656 *Qty: 2 SPECIAL SCREW $25.58
Location: 5 Prev | Next Part: 238063 *Qty: 2 NUT $4.45
Location: 6 Prev | Next Part: 259688 *Qty: 2 ANTI-ROTATION LINKAGE $173.34
Location: 7 Prev | Next Part: 222956 *Qty: 2 COMPENSATOR RING $14.82
Location: 8 Prev | Next Part: 238258 *Qty: 2 SCREW -M12 X 1.25 X 75- $35.60
Location: 9 Prev | Next Part: 15541434 *Qty: 2 SCREW -M12 X 1.25 X 80- $2.42
Location: 10 Prev | Next Part: 14496721 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 203666 *Qty: 2 NUT $1.04
Location: 12 Prev | Next Part: 245161 *Qty: 2 COMPLETE TIE-ROD $294.66
Location: 13 Prev | Next Part: 15541434 *Qty: 2 SCREW -M12 X 1.25 X 80- $2.42
Location: 14 Prev | Next Part: 203666 *Qty: 2 NUT $1.04
Location: 15 Prev | Next Part: 14496721 *Qty: 4 WASHER $0.90
Location: 16 Prev | Next Part: 104114 *Qty: 16 NUT Superseded
Location: 17 Prev | Next Part: 14496624 *Qty: 16 WASHER $0.90
Location: 18 Prev | Next Part: 264528 *Qty: 16 THREADED ROD $4.25
Location: 19 Prev | Next Part: 262544 *Qty: 4 ADJUSTMENT PLATE -Th. 0.5 mm- $10.55
Location: 19 Prev | Next Part: 262545 *Qty: 4 ADJUSTMENT PLATE -Th. 1 mm- $10.55
Location: 19 Prev | Next Part: 262546 *Qty: 4 ADJUSTMENT PLATE -Th. 1.5 mm- $10.55
Location: 19 Prev | Next Part: 262539 *Qty: 4 ADJUSTMENT PLATE -Th. 2 mm- $10.55
Location: 19 Prev | Next Part: 262540 *Qty: 4 ADJUSTMENT PLATE -Th. 2.5 mm- $10.55
Location: 19 Prev | Next Part: 262541 *Qty: 4 ADJUSTMENT PLATE -Th. 3 mm- $10.55
Location: 19 Prev | Next Part: 262542 *Qty: 4 ADJUSTMENT PLATE -Th. 3.5 mm- $10.55
Location: 19 Prev | Next Part: 262543 *Qty: 4 ADJUSTMENT PLATE -Th. 4 mm- $10.55
Location: 20 Prev | Next Part: 12646821 *Qty: 4 WASHER $0.90
Location: 21 Prev | Next Part: 294851 *Qty: 1 RH HUB CARRIER $1,847.39
Location: 21 Prev | Next Part: 294850 *Qty: 1 LH HUB CARRIER $1,847.39
Location: 22 Prev | Next Part: 252514 *Qty: 2 ABS SENSOR $205.78

* Quantity shown indicates the number of pieces used in the diagram.
