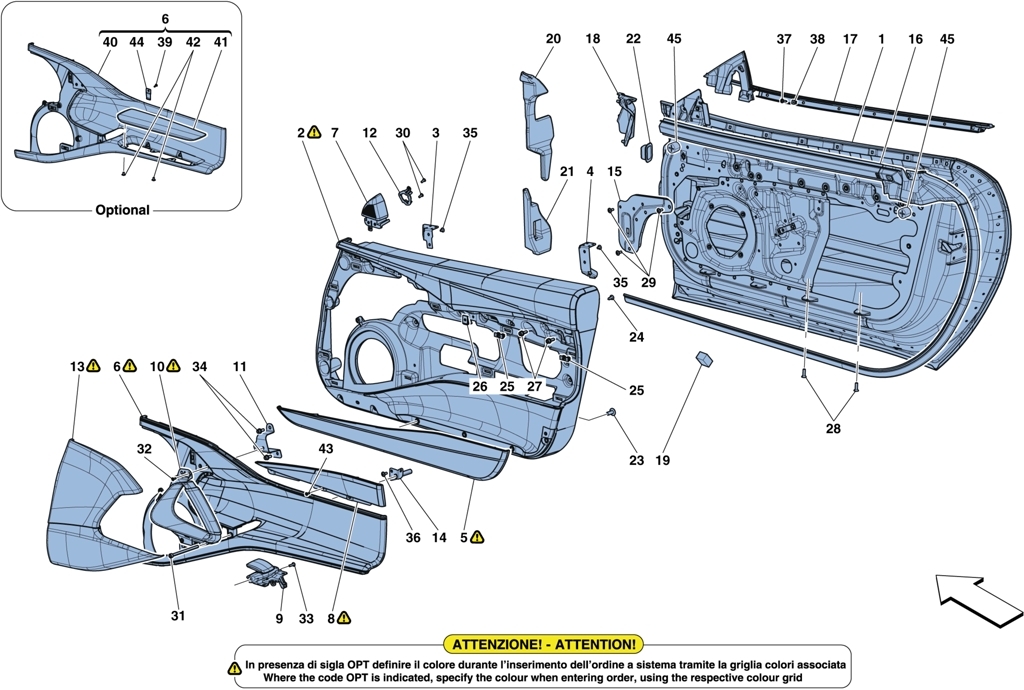

DOORS – STRUCTURES AND TRIMS

Go to Split View

DOORS – STRUCTURES AND TRIMS

Location Part # Quantity* Description Price Add To Cart
1 88070711 1 COMPL. RH LATERAL DOOR -NOT FOR GD- $6,932.22
1 88714411 1 COMPL. RH LATERAL DOOR -APPLICABLE FOR GD- $6,969.92
1 88070611 1 COMPL. LH LATERAL DOOR -NOT FOR GD- $6,932.22
1 88714311 1 COMPL. LH LATERAL DOOR -APPLICABLE FOR GD- $6,969.92
2 87973912 1 RH UPHOLSTERED PANEL -INTP- -LEATHER- $5,020.48
2 87980012 1 RH UPHOLSTERED PANEL -INTP- -PREMIUM HI-FI VERSION- -LEATHER- $5,020.48
2 87973800 1 LH UPHOLSTERED PANEL -INTP- -LEATHER- Unavailable
2 87979912 1 LH UPHOLSTERED PANEL -INTP- -PREMIUM HI-FI VERSION- -LEATHER- $5,020.48
3 87974200 1 FRONT LH SHELF REINFORCEMENT BRACKET $68.64
3 88359900 1 FRONT RH SHELF REINFORCEMENT BRACKET $68.64
4 88062800 1 REAR RH SHELF REINFORCEMENT BRACKET $114.38
4 88062700 1 REAR LH SHELF REINFORCEMENT BRACKET $114.38
5 87974312 1 COMPL. LH DOOR PANEL POCKET -INTP- -LEATHER- $68.64
5 87974412 1 COMPL. RH DOOR PANEL POCKET -INTP- -LEATHER- $705.42
6 87972900 1 COMPL. LH CENTRAL MEDALLION DOOR PANEL - Unavailable
6 803959 1 COMPL. LH CENTRAL MEDALLION DOOR PANEL - Unavailable
6 89330200 1 COMPL. LH CENTRAL MEDALLION DOOR PANEL - Unavailable
6 794485 1 COMPL. LH CENTRAL MEDALLION DOOR PANEL - $77.65
6 87973012 1 COMPL. RH CENTRAL MEDALLION DOOR PANEL - $2,716.40
6 804038 1 COMPL. RH CENTRAL MEDALLION DOOR PANEL - $3,754.83
6 89330400 1 COMPL. RH CENTRAL MEDALLION DOOR PANEL - Unavailable
6 803955 1 COMPL. RH CENTRAL MEDALLION DOOR PANEL - Unavailable
6 794484 1 COMPL. RH CENTRAL MEDALLION DOOR PANEL - Unavailable
6 804041 1 COMPL. LH CENTRAL MEDALLION DOOR PANEL - $3,440.93
7 88202300 1 LH MIRROR TRIANGLE TRIM $33.06
7 88202400 1 RH MIRROR TRIANGLE TRIM $33.06
8 88032312 1 COMPL. RH INTERNAL MEDALLION DOOR PANEL -INTP- -LEATHER- $497.60
8 88032200 1 COMPL. LH INTERNAL MEDALLION DOOR PANEL -INTP- -LEATHER- Unavailable
9 88061300 1 COMPL. RH HANDLE MOUNT $309.11
9 88061200 1 COMPL. LH HANDLE MOUNT $309.11
10 88677200 1 COMPL. RH DOOR PULL -INTP- -LEATHER- -AP $3,182.17
10 88727400 1 COMPL. LH DOOR PULL -INTP- -LEATHER- -PE $1,449.58
10 765717 1 COMPL. RH DOOR PULL -INTP- -LEATHER- -CA $181.13
10 89147500 1 COMPL. RH DOOR PULL -INTP- -LEATHER- -CA $2,832.91
10 88062300 1 COMPL. LH DOOR PULL -INTP- -LEATHER- -AP Unavailable
10 88677400 1 COMPL. LH DOOR PULL -INTP- -LEATHER- -PE $3,182.17
10 765722 1 COMPL. LH DOOR PULL -INTP- -LEATHER- -CA $2,899.55
10 89147600 1 COMPL. LH DOOR PULL -INTP- -LEATHER- -CA $2,832.91
10 88062412 1 COMPL. RH DOOR PULL -INTP- -LEATHER- -PE $31.77
10 765714 1 COMPL. RH DOOR PULL -INTP- -LEATHER- -CA $181.13
10 88727000 1 COMPL. RH DOOR PULL -INTP- -LEATHER- -PE $105.50
10 89147900 1 COMPL. LH DOOR PULL -INTP- -LEATHER- -CA $3,481.78
11 88202600 1 RH DOOR PULL SUPPORT FASTENER BRACKET $31.77
11 88061800 1 LH DOOR PULL SUPPORT FASTENER BRACKET $31.77
12 88202500 2 TWEETER SUPPORT -NOT FOR HI-FI PREMIUM VERSION- $2.54
13 88108912 1 LH FRONT MEDALLION PANEL -INTP- -PREMIUM $1,307.86
13 88108712 1 LH FRONT MEDALLION PANEL -INTP- -LEATHER $1,307.86
13 88109000 1 RH FRONT MEDALLION PANEL -INTP- -PREMIUM $1,307.86
13 88108800 1 RH FRONT MEDALLION PANEL -INTP- -LEATHER Unavailable
14 89289900 1 RH DOORPULL FASTENER BRACKET $44.50
14 89290100 1 LH DOORPULL FASTENER BRACKET $44.50
15 88257600 1 COMPL. RH DOOR SUBSTRUCTURE COVER PANEL $66.09
15 88257500 1 COMPL. LH DOOR SUBSTRUCTURE COVER PANEL $66.09
16 88059300 1 INTERNAL LH WINDOW SCRAPER SEAL Unavailable
16 88059400 1 INTERNAL RH WINDOW SCRAPER SEAL Unavailable
17 88059500 1 EXTERNAL LH WINDOW SCRAPER SEAL $384.73
17 88059600 1 EXTERNAL RH WINDOW SCRAPER SEAL $384.73
18 88060000 1 L.H. GASKET $46.51
18 88060100 1 R.H. GASKET $46.51
19 89386300 2 SEAL BUSHING $1.90
20 88996700 1 RH UPPER DOOR PILLAR PULER $52.75
20 88996800 1 LH UPPER DOOR PILLAR PULER $52.75
21 748607 1 LH DOOR PILLAR PULER $39.41
21 748609 1 RH DOOR PILLAR PULER $39.41
22 85058100 2 RECTANGULAR PLUG Unavailable
23 85692200 12 SCREW -M5 X 10- -APPLICABLE FOR RUSSIA- Unavailable
24 16082801 10 SCREW Unavailable
25 68700200 30 CLIP Unavailable
26 84583500 6 PLATE -APPLICABLE FOR RUSSIA- ARMENIA- B Unavailable
27 231618 18 SCREW -M6 X 20- Unavailable
28 14441434 8 SCREW -M6 X 20- Unavailable
29 85692200 6 SCREW -M5 X 10- -APPLICABLE FROM ASS. NO. 159276- Unavailable
30 15643975 4 SCREW $1.42
31 14300724 2 SCREW -M6 X 90- $5.32
32 65377400 4 SCREW -M6 X 1 X 18- Superseded
33 85834000 2 SCREW -M5 X 25- Unavailable
33 64830600 2 SCREW Unavailable
34 248334 6 SCREW $0.90
35 85691900 8 SCREW Unavailable
36 85691900 4 SCREW Unavailable
36 85692200 4 SCREW -M5 X 10- Unavailable
37 15689809 14 SCREW Unavailable
38 14115885 14 BLOCK Unavailable
39 85691900 2 SCREW Unavailable
40 88928300 1 LH CENTRAL MEDALLION DOOR PANEL SUBSTRUCTURE -CARBON VERSION- $5,084.03
40 88928400 1 RH CENTRAL MEDALLION DOOR PANEL SUBSTRUCTURE -CARBON VERSION- $5,084.03
41 765512 1 COMPL. LH ARMREST -VERSION WITH CARBON F $686.35
41 765503 1 COMPL. RH ARMREST -VERSION WITH CARBON F $686.35
42 85691900 8 SCREW Unavailable
43 85833700 6 SCREW -M5 X 14- Unavailable
44 807258 2 CENTRE MEDALLION DOOR PANEL MOUNTING BRA $8.64
45 83888400 4 DOOR ALIGNMENT FOAM PAD Unavailable
46 63343400 2 SCREW -M4 X 15- $3.17
46 826584 2 SCREW $0.90
47 12637801 2 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
