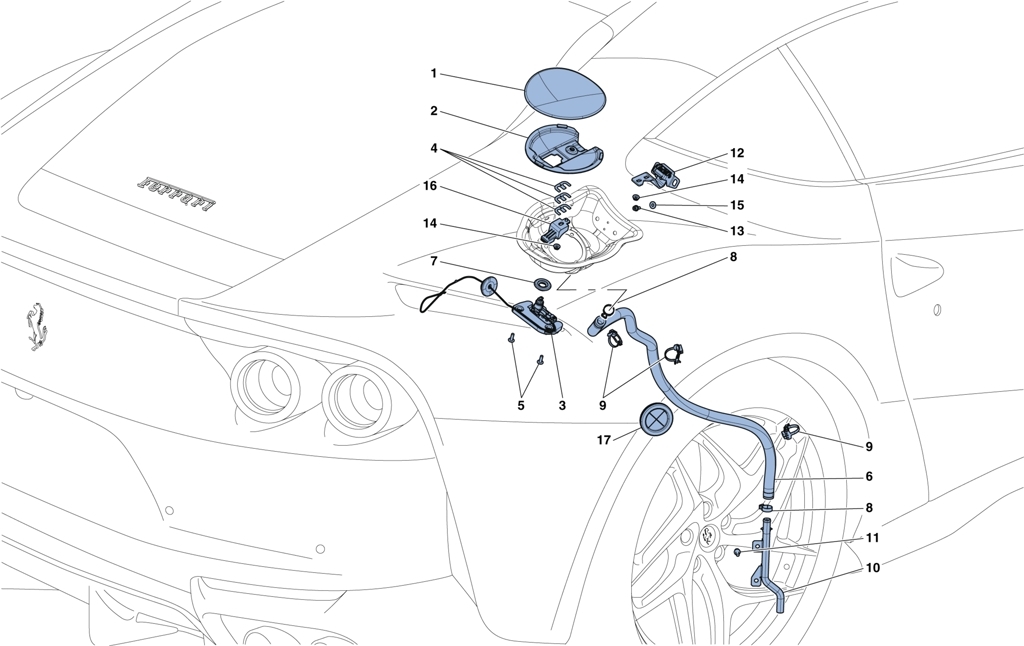

FUEL FILLER DOOR AND OPENING DEVICES

Location Part # Quantity* Description Price Add To Cart
1 985807826 1 COMPL. FUEL FILLER FLAP -APPLICABLE UP T $381.61
1 985807826 1 COMPL. FUEL FILLER FLAP -FOR VEHICLES UP $381.61
2 807842 1 INNER COVER FOR FUEL FILLER FLAP -APPLIC $18.31
2 807842 1 INNER COVER FOR FUEL FILLER FLAP -FOR VE $18.31
3 88436300 1 COMPL. ACTUATOR BRACKET $147.44
4 84046900 3 SPACER PLATE Unavailable
5 85833900 2 SCREW -APPLICABLE FOR J- Unavailable
6 84716500 1 DRAIN PIPE Unavailable
7 89180500 1 GASKET $9.48
8 13433570 2 COLLAR Unavailable
9 177553 5 CLAMP $0.90
10 84741100 1 RIGID DRAIN PIPE $132.00
11 231617 2 SCREW Unavailable
12 807829 1 COMPL. HINGE -FOR VEHICLES UP TO ASS.LY $89.23
12 83993700 1 COMPL. HINGE -APPLICABLE UP TO ASS. NO. 158015- $92.78
13 11566227 2 SCREW -NO LONGER SUPPLIED- -REPLACED BY 15689601- Unavailable
14 14059114 3 NUT Unavailable
15 12638124 2 WASHER $0.90
16 807843 1 STRIKER FOR ACTUATOR -APPLICABLE UNTIL DEPLETION- $6.99
16 807843 1 STRIKER FOR ACTUATOR -APPLICABLE AFTER DEPLETION OF 88437400- $6.99
17 81535200 1 GROMMET WITH MEMBRANE $36.09

* Quantity shown indicates the number of pieces used in the diagram.
