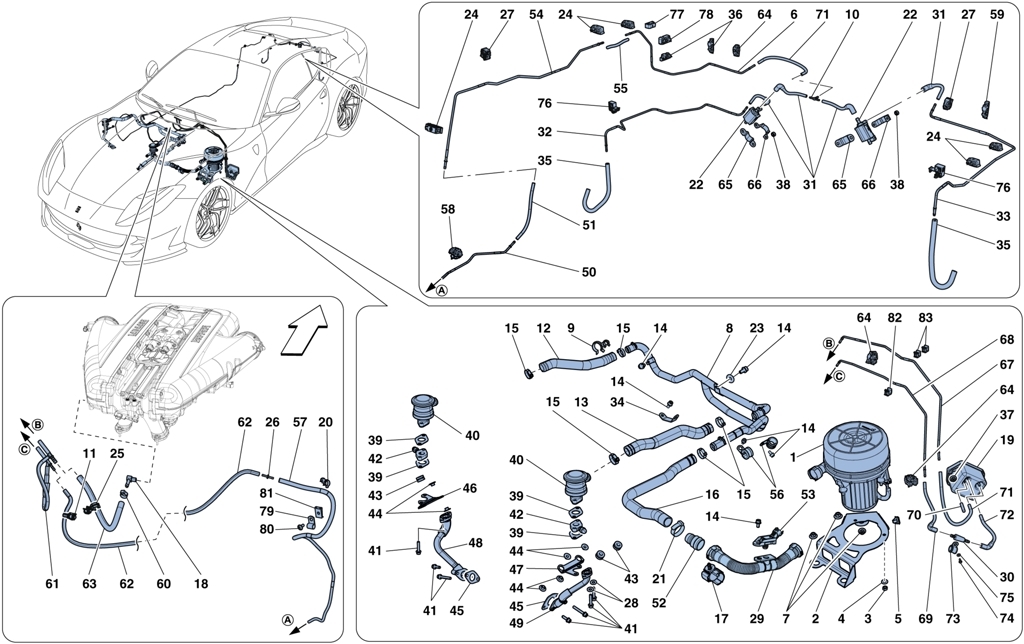

SECONDARY AIR SYSTEM

Go to Split View

SECONDARY AIR SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 247795 1 SECONDARY AIR SYSTEM PUMP $771.60
2 272314 1 PUMP MOUNTING BRACKET Unavailable
3 15896214 3 NUT Unavailable
4 11194674 3 WASHER Unavailable
5 253769 1 CLIP Unavailable
6 293314 1 RIGID PIPE Unavailable
7 14039614 3 NUT Unavailable
8 289538 1 ALUMINIUM PIPE Unavailable
9 225165 1 FLEXIBLE CLIP $0.90
10 257691 1 THREE WAY $1.91
11 319429 1 CLIP $1.61
12 279862 1 R.H. SLEEVE Unavailable
13 274855 1 L.H. SLEEVE Unavailable
14 233600 6 SCREW Unavailable
15 13128970 5 COLLAR Unavailable
16 279692 1 ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR Unavailable
17 82051100 1 CLIP $1.16
18 319271 1 UNION $53.68
19 198339 1 DEPRESSION ACCUMULATION TANK $47.66
20 225165 1 FLEXIBLE CLIP $0.90
21 262111 1 COLLAR -APPLICABLE AFTER DEPLETION OF 10860370- $1.93
22 178309 2 SOLENOID VALVE $103.71
23 12643724 1 WASHER Superseded
24 294206 1 CLIP -2 COMPARTMENTS- Unavailable
24 280281 4 CLIP -2 COMPARTMENTS- Unavailable
25 305301 1 CLIP $0.90
26 199696 1 UNION $13.34
27 234284 2 CLIP Unavailable
28 12601274 4 WASHER $0.90
29 288959 1 SECONDARY AIR SYSTEM PIPE WITH SENSOR CARRIER Unavailable
30 295349 1 VACUUM RETAINER VALVE Unavailable
31 294268 4 RUBBER HOSE Unavailable
32 281020 1 RH RIGID PIPE Unavailable
33 269073 1 LH RIGID PIPE Unavailable
34 289882 1 PIPE MOUNTING BRACKET Unavailable
35 339752 2 RUBBER PIPE -D. 3.5-8 X 250- $24.42
36 294207 2 CLIP -3 COMPARTMENTS- Unavailable
37 14039614 2 NUT Unavailable
38 14059111 4 NUT Unavailable
39 186781 4 GASKET $5.40
40 284235 2 SECONDARY AIR VALVE $256.63
41 231618 2 SCREW -M6 X 20- Unavailable
41 231623 2 SCREW Unavailable
41 10902824 4 SCREW Unavailable
42 286011 1 SPACER ASSEMBLY -LH SIDE- Unavailable
42 264020 1 SPACER ASSEMBLY $65.08
43 177576 4 CABLE GROMMET $2.60
44 183898 8 FLANGED BUSHING $3.51
45 202980 2 GASKET $2.96
46 258254 1 RH VALVE FASTENER BRACKET $12.32
47 258252 1 LH VALVE FASTENER BRACKET $12.32
48 256598 1 PIPE FROM AIR VALVE TO RH HEAD $291.69
49 256596 1 PIPE FROM AIR VALVE TO LH HEAD $287.16
50 284631 1 EMISSIONS CONTROL PIPE Unavailable
51 264088 1 RUBBER PIPE -D. 3.5-8 X 185- Unavailable
52 267093 1 COUPLING Unavailable
53 282849 1 PRESSURE SENSOR Unavailable
54 284629 1 RIGID PIPE Unavailable
55 199691 1 RUBBER HOSE Unavailable
56 10450690 2 BRACKET WITH SHEATH Unavailable
57 289048 1 RUBBER PIPE -NOT FOR GD- Unavailable
57 340100 1 RUBBER PIPE -APPLICABLE FOR GD- $228.78
58 284622 2 CLIP -3 COMPARTMENTS- Unavailable
59 294207 1 CLIP -3 COMPARTMENTS- Unavailable
60 13432070 1 COLLAR FOR SLEEVE Unavailable
61 327787 1 COMPL. VACUUM PIPING $266.30
62 338350 1 RUBBER HOSE $47.02
63 319507 1 RUBBER HOSE $29.92
64 234285 3 CLIP Unavailable
65 343599 2 SOLENOID VALVE MOUNTING BRACKET $28.61
66 343605 2 SOLENOID VALVE MOUNTING BRACKET $42.71
67 295777 1 RUBBER PIPE -APPLICABLE FOR GD- Unavailable
67 274272 1 TANK ACTUATOR RIGID PIPE ON FIREWALL -NOT FOR GD- Unavailable
68 295778 1 RUBBER PIPE -APPLICABLE FOR GD- Unavailable
68 274271 1 TANK VACUUM RIGID PIPE ON FIREWALL -NOT FOR GD- Unavailable
69 294265 1 RUBBER HOSE Unavailable
70 225098 1 PLUG $1.62
71 115412 2 PIPE FROM R.H. CUT-OFF VALVE TO UNION $4.49
72 294265 1 RUBBER HOSE Unavailable
73 10441490 1 BRACKET WITH SHEATH Unavailable
74 15516204 1 SCREW Unavailable
75 12637878 1 WASHER Unavailable
76 294205 2 CLIP -1 COMPARTMENT- Unavailable
77 294206 1 CLIP -2 COMPARTMENTS- Unavailable
78 294207 1 CLIP -3 COMPARTMENTS- Unavailable
79 10418501 1 BRACKET -NOT FOR GD- $4.00
80 85692200 1 SCREW -M5 X 10- -APPLICABLE FOR RUSSIA- Unavailable
81 66927700 1 BRACKET WITH COLLAR Unavailable
82 140130 4 FLEXIBLE CLIP $0.90
83 141546 8 CLIP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
