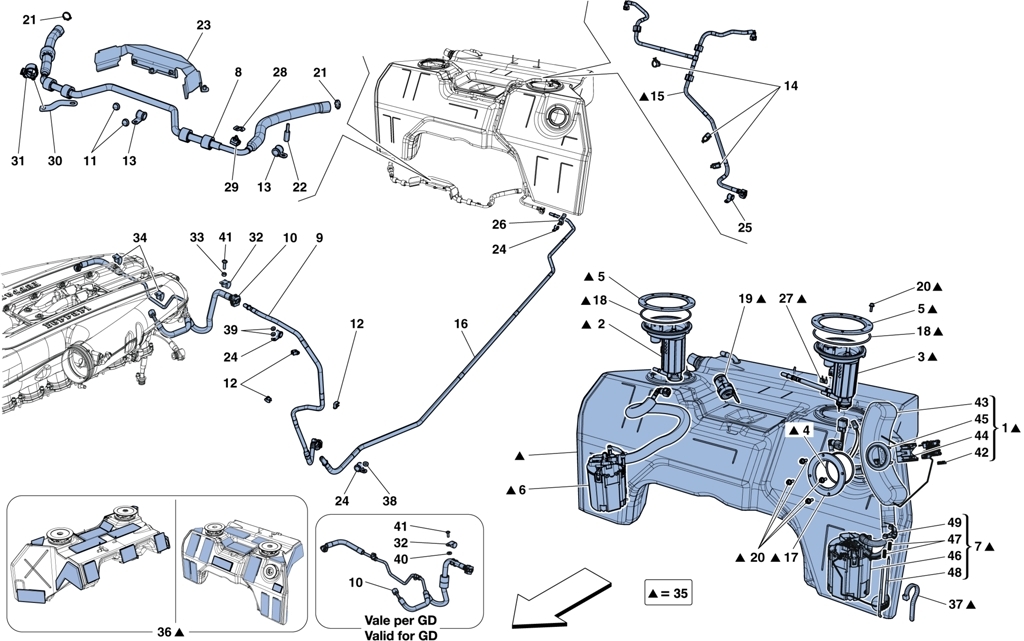

FUEL TANK, PUMPS, AND PIPES

Go to Split View

FUEL TANK, PUMPS, AND PIPES

Location Part # Quantity* Description Price Add To Cart
1 328595 1 COMPL. INCLINATION SENSOR -NO LONGER SUPPLIED- Unavailable
2 282784 1 RH FUEL PUMP FILTER -APPLICABLE UP TO AS... $842.00
3 282785 1 LH FUEL PUMP FILTER -APPLICABLE UP TO AS... $1,342.99
4 239413 1 O-RING $6.39
5 275998 2 FASTENER RING $75.23
6 272086 1 RH FUEL PUMP -APPLICABLE FOR HELE- Unavailable
7 332723 1 COMPL. LH FUEL PUMP -NO LONGER SUPPLIED- Unavailable
8 290771 1 LOWER CONNECTOR PIPE $391.40
9 295009 1 FUEL DELIVERY PIPE, FRONT SECTION -NOT FOR GD- Unavailable
9 295010 1 FUEL DELIVERY PIPE, FRONT SECTION -APPLICABLE FOR GD- Unavailable
10 769765 1 LOW PRESSURE FUEL PIPE -NOT FOR GD- Unavailable
10 340200 1 LOW PRESSURE FUEL PIPE -APPLICABLE FOR GD- Unavailable
11 14622387 2 PLUG $3.63
12 235682 3 CLIP -VALID FOR GD- Unavailable
13 10441890 2 BRACKET WITH SHEATH $0.90
14 177553 3 CLAMP $0.90
15 281180 1 REAR FUEL DELIVERY PIPE Unavailable
16 277364 1 FUEL DELIVERY PIPE, CENTRE SECTION $30.59
17 276001 1 LEVEL SENSOR FASTENER RING $303.65
18 239412 2 O-RING Superseded
19 237407 1 ANTI SPIT-BACK VALVE $33.62
20 256323 20 SCREW -M5 X 16- Unavailable
21 281598 2 COLLAR WITH SNAP FASTENER Unavailable
22 178772 1 SPACER STUD $10.19
23 277360 1 HEAT SHIELD Unavailable
24 10441290 3 BRACKET WITH SHEATH Unavailable
25 10441490 1 BRACKET WITH SHEATH Unavailable
26 286193 1 FUEL PIPE FASTENER BRACKET Unavailable
27 238688 2 CONNECTOR $51.72
28 290800 1 CONNECTOR PIPE MOUNTING BRACKET Unavailable
29 263230 1 CLIP Unavailable
30 286534 1 PIPE MOUNTING BRACKET Unavailable
31 259508 1 CLIP Unavailable
32 10441490 1 BRACKET WITH SHEATH -NOT FOR GD- Unavailable
32 290424 1 BRACKET WITH SHEATH -APPLICABLE FOR GD- Unavailable
33 14040611 1 NUT $2.25
34 67190200 2 BRACKET WITH SHEATH $2.31
35 341208 1 COMPL. TANK $8,529.61
36 324999 1 FUEL TANK ANTI-VIBRATION PAD KIT $317.75
37 10815787 1 RING CLAMP -APPLICABLE FOR USA, CDN- Unavailable
38 179318 1 SPACER $2.65
39 125516 2 WASHER $5.89
40 254442 1 WASHER -APPLICABLE FOR GD- Unavailable
41 65377400 1 SCREW -M6 X 1 X 18- Superseded
42 238688 1 CONNECTOR $51.72
43 328592 1 FUEL LEVEL SENSOR $228.78
44 254311 1 CORNER ADAPTER $10.09
45 273479 1 FUEL LEVEL SENSOR MOUNT $116.68
46 332702 1 LH FUEL PUMP $1,217.56
47 253407 2 COMPRESSION SPRING $36.86
48 253408 1 QUICK RELEASE STUD BOLTS $63.55
49 253409 1 UPPER PLATE $38.12

* Quantity shown indicates the number of pieces used in the diagram.
