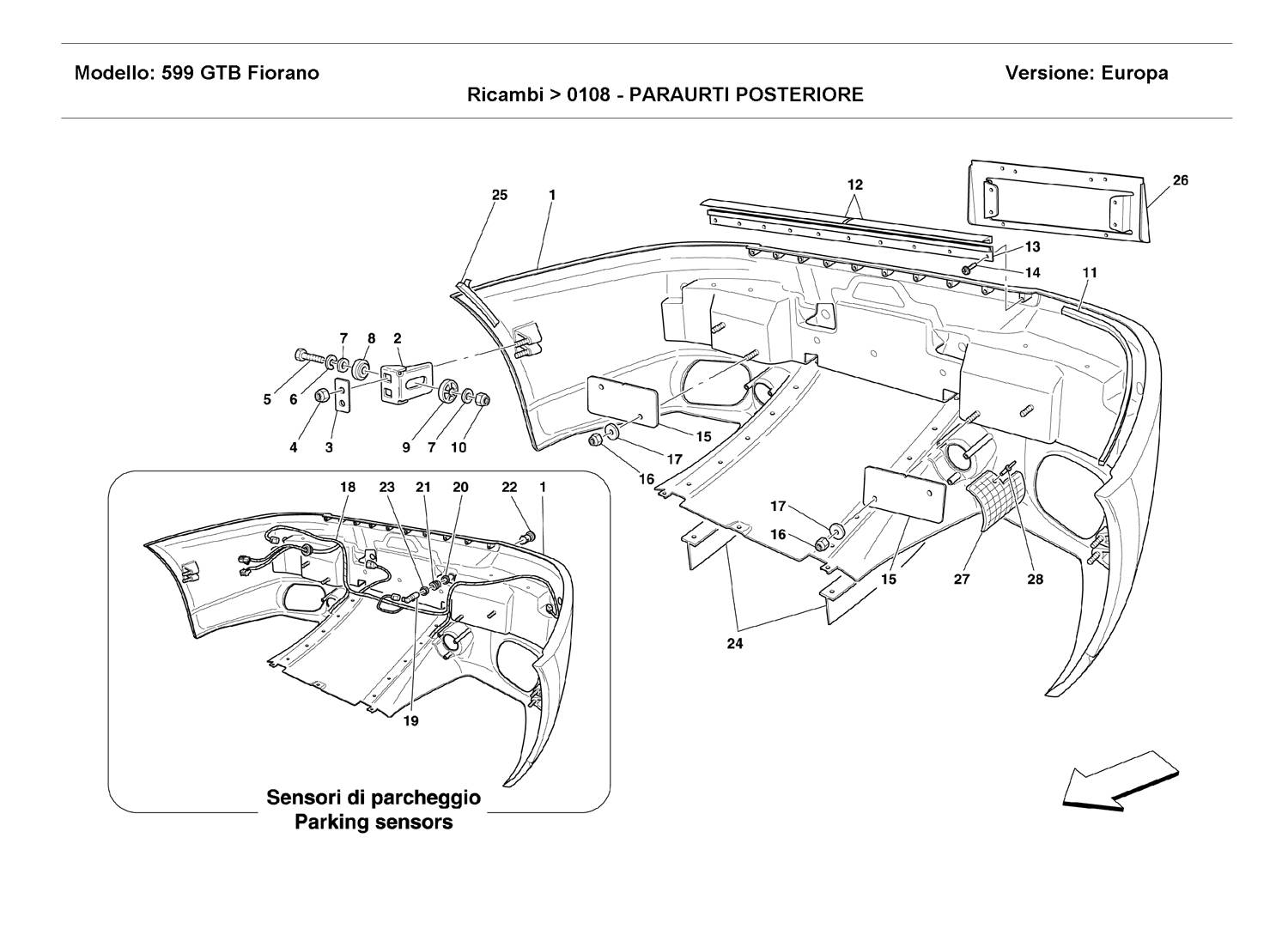

REAR BUMPER

Location	Part #	Quantity*	Description	Price	Add To Cart
1	69899210	1	REAR BUMPER -Standard- -Not for USA and CDN-	$7,868.26
1	69983010	1	REAR BUMPER -Standard- -Valid for USA and CDN-	$6,972.36
1	69899310	1	REAR BUMPER -Parking sensors- -Not for USA and CDN-		Unavailable
1	69983110	1	REAR BUMPER -Parking sensors- -Valid for USA and CDN-	$10,232.22
2	62126500	2	BUMPER LATERAL FIXING BRACKET	$22.41
3	62126600	2	PLATE	$12.81
4	104030	4	NUT	$0.90
5	11307021	2	SCREW	$8.51
6	12644301	2	WASHER		Unavailable
7	12646801	4	WASHER		Unavailable
8	62128200	2	EXTERNAL SMALL BLOCK	$2.58
9	62128300	2	INTERNAL SMALL BLOCK	$1.52
10	12574521	2	NUT	$1.22
11	69010100	2	RUBBER PROFILE -Not for USA and CDN-	$86.25
12	69354100	1	CENTRAL GASKET	$63.81
13	69354200	1	REAR CHANNEL	$77.63
14	15689501	10	SCREW		Superseded
14	15783204	10	SCREW M4x 2 -Alternative-		Unavailable
15	68113300	8	SPACER -Not as spare part- -Replaced by 80203700-	$4.00
15	80203700	8	SPACER	$12.85
15	68113400	4	SPACER -Possible fitting- -Not as spare part- -Replaced by 80203800-	$3.15
15	80203800	4	SPACER -Possible fitting-	$21.17
16	104114	4	NUT		Superseded
17	12644301	4	WASHER		Unavailable
18	217831	1	BUMPER CABLE WITH PARKING SENSOR -Not parking sensors- -Not for USA and CDN-	$72.45
18	217830	1	BUMPER CABLE WITH PARKING SENSOR -Parking sensors- -Not for USA and CDN-	$448.61
18	217828	1	BUMPER CABLE WITH PARKING SENSOR -Not for parking sensors- -Valid for USA and CDN-	$74.05
18	217829	1	BUMPER CABLE WITH PARKING SENSOR -Parking sensors- -Valid for USA and CDN-	$241.55
19	214561	4	PARKING SENSOR -Parking sensors-	$243.58
20	223516	4	GASKET -Parking sensors-	$12.16
21	69377600	4	SPRING -Parking sensors-	$14.84
22	69377300	4	OUTER SLEEVE -Parking sensors-	$82.80
23	69377500	4	RING NUT -Parking sensors-	$14.84
24	69245200	2	FIN	$415.38
25	69352900	2	LATERAL SPONGE	$4.30
26	69713200	1	PLATE FRAME SUPPORT -Not for USA, CDN, J and GB-	$217.82
26	69713400	1	PLATE FRAME SUPPORT -Usa/Canada-	$310.57
26	69714100	1	PLATE FRAME SUPPORT -Japan-	$217.82
27	69701400	1	L.H. HEAT SHIELD	$241.55
27	69701300	1	R.H. HEAT SHIELD	$241.55
28	64385900	4	RIVET		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
