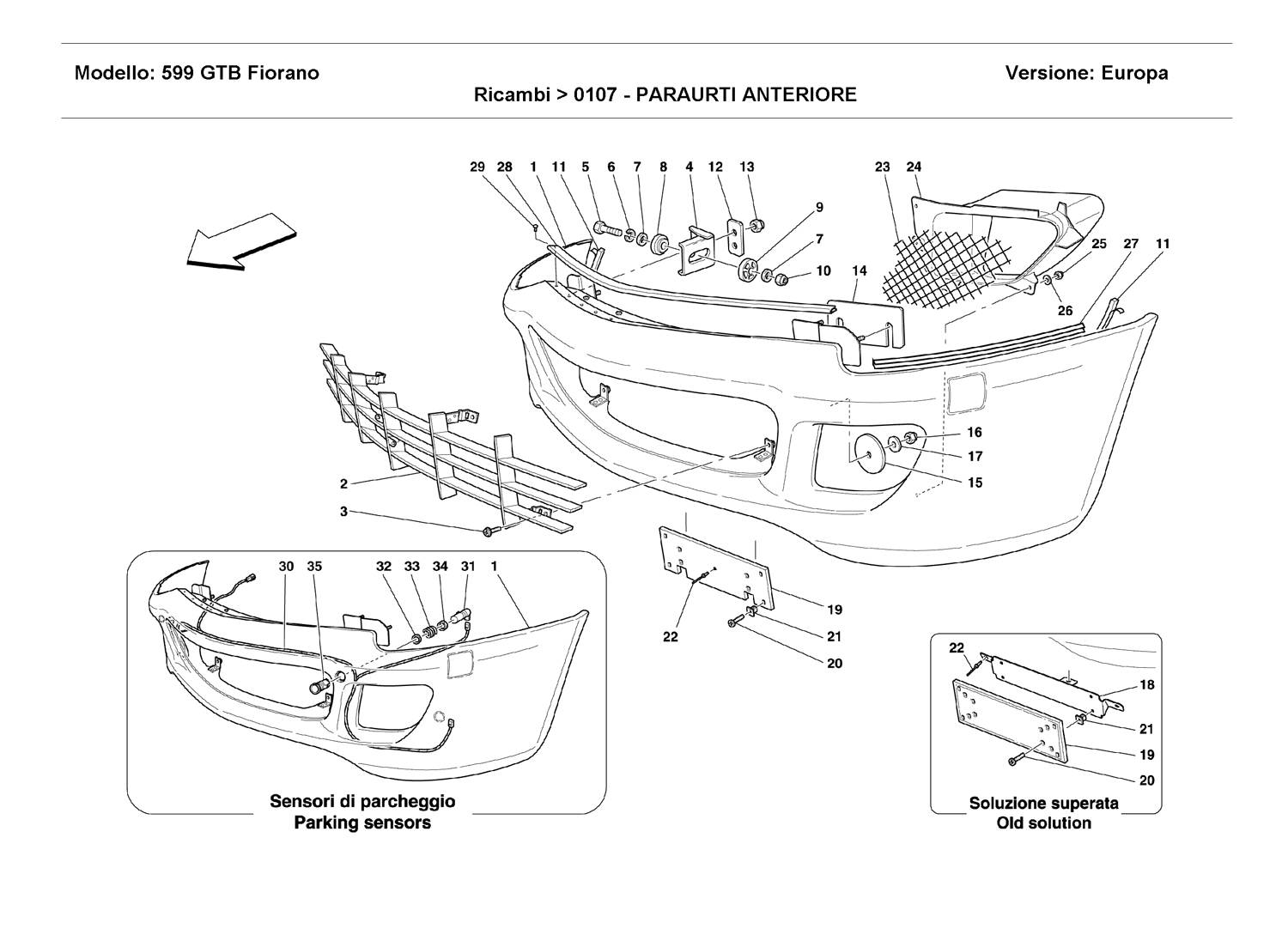

FRONT BUMPER

Location	Part #	Quantity*	Description	Price	Add To Cart
1	69899010	1	FRONT BUMPER -Standard- -Not for USA and CDN-	$10,575.57
1	69982810	1	FRONT BUMPER -Standard- -Valid for USA and CDN-	$11,452.12
1	69899110	1	FRONT BUMPER -Parking sensors- -Not for USA and CDN-		Unavailable
1	69982910	1	FRONT BUMPER -Parking sensors- -Valid for USA and CDN-	$12,401.15
2	69242300	1	FRONT GRILL	$2,354.78
3	13290077	4	SCREW	$10.64
4	62126500	2	BUMPER LATERAL FIXING BRACKET	$22.41
5	11307021	2	SCREW	$8.51
6	127497	2	WASHER	$0.90
7	12646801	4	WASHER		Unavailable
8	62128200	2	EXTERNAL SMALL BLOCK	$2.58
9	62128300	2	INTERNAL SMALL BLOCK	$1.52
10	12574521	2	NUT	$1.22
11	68565200	2	LATERAL SPONGE	$4.30
12	62126600	2	PLATE	$12.81
13	104030	4	NUT	$0.90
14	69376800	4	UPPER SPACER	$8.51
14	69376900	2	UPPER SPACER	$27.38
15	68113100	4	LOWER SPACER	$7.77
15	68113200	2	LOWER SPACER	$17.84
16	104114	6	NUT		Superseded
17	12644301	6	WASHER		Unavailable
18	68577500	1	BRACKET -Not as spare part-		Unavailable
19	63736400	1	FRONT PLATE FRAME -Italy- -Not as spare part- -Replaced by 69856300-	$77.93
19	69856300	1	FRONT PLATE FRAME -Italy-	$178.62
19	63736300	1	FRONT PLATE FRAME -CEE- -Not as spare part- -Replaced by 69856500-	$82.80
19	69856500	1	FRONT PLATE FRAME -CEE-	$396.84
19	69862300	1	FRONT PLATE FRAME -Usa/Canada-	$224.82
19	69862200	1	FRONT PLATE FRAME -Australia-	$224.82
19	69862600	1	FRONT PLATE FRAME -Japan-	$224.29
19	69863200	1	FRONT PLATE FRAME -Cina-	$224.82
20	15687275	4	SCREW	$0.90
21	14215480	4	BLOCK		Superseded
22	14641793	3	RIVET -Not as spare part- -Replaced by 14296196-		Unavailable
22	14296196	3	RIVET	$0.90
23	69241100	1	L.H. AIR INTAKE GRILLE	$178.62
23	69241000	1	R.H. AIR INTAKE GRILLE	$99.04
24	69242200	1	L.H. AIR DUCTING	$117.31
24	69242100	1	R.H. AIR DUCTING	$117.31
25	10788811	10	NUT		Unavailable
26	12638124	10	WASHER	$0.90
27	69716800	2	RUBBER PROFILE -Not for USA and CDN-	$65.55
28	69960200	1	CENTRAL GASKET -Not as spare part- -Replaced by 69960200-	$324.78
28	69960200	1	CENTRAL GASKET	$324.78
29	68190000	11	BUTTON -Not as spare part-		Unavailable
30	217827	1	BUMPER CABLE WITH PARKING SENSOR -Parking sensors-	$258.80
31	217832	4	PARKING SENSOR -Parking sensors-	$243.58
32	223516	4	GASKET -Parking sensors-	$12.16
33	69377600	4	SPRING -Parking sensors-	$14.84
34	69377500	4	RING NUT -Parking sensors-	$14.84
35	69377400	4	SLEEVE -Parking sensors-	$82.80

* Quantity shown indicates the number of pieces used in the diagram.
