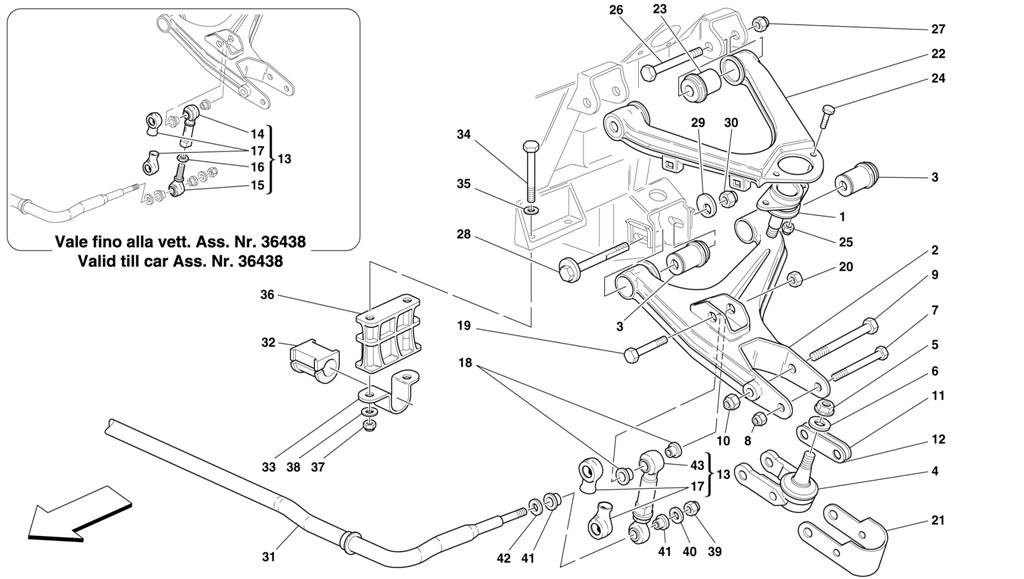

FRONT SUSPENSION - WISHBONES AND STABILIZER BAR

Location Part # Quantity* Description Price Add To Cart
1 132776 2 UPPER BALL JOINT $207.04
2 168388 1 R.H. LOWER LEVER $949.00
2 168727 1 L.H. LOWER LEVER $1,000.77
3 169326 4 FLAMBLOCK FOR LOWER FORK $241.55
4 154396 2 LOWER BALL JOINT $276.97
5 149807 4 NUT $1.48
6 155002 4 WASHER $21.29
7 15971734 2 SCREW $40.62
8 12574521 2 NUT $1.22
9 153504 2 SCREW Unavailable
10 148020 2 NUT $5.93
11 101022 0 SETTING PLATE $1.97
12 164484 0 SETTING PLATE -mm. 1.00- -Possible fitting $36.22
12 101022 0 SETTING PLATE $1.97
12 164485 0 SETTING PLATE -mm. 2.00- -Possible fitting $4.41
12 115073 0 SETTING PLATE -mm. 1.20- -Possible fitting $2.11
13 183712 1 L.H. COMPLETE TIE ROD -Valid from car Ass. Nr. 36439 Unavailable
13 152868 1 R.H. COMPLETE TIE ROD -Valid till car Ass. Nr. 36438 Unavailable
13 183711 1 R.H. COMPLETE TIE ROD -Valid from car Ass. Nr. 36439 Unavailable
13 152869 1 L.H. COMPLETE TIE ROD -Valid till car Ass. Nr. 36438 Unavailable
14 152871 2 FEMALE BALL JOINT TIE ROD -Valid till car Ass. Nr. 36438 $465.86
15 152870 2 MALE BALL JOINT TIE ROD -Valid till car Ass. Nr. 36438 $465.86
16 10717311 2 NUT -Valid till car Ass. Nr. 36438 Unavailable
17 148772 4 PROTECTION $15.16
18 148773 4 SPACER $14.15
19 105962 2 SCREW Unavailable
20 148020 2 NUT $5.93
21 157812 2 BALL JOINT PROTECTION $157.00
22 168711 1 R.H. UPPER LEVER -Valid till car Ass. Nr. 27043 $483.12
22 168712 1 L.H. UPPER LEVER -Valid till car Ass. Nr. 27043 $483.12
22 175800 1 R.H. UPPER LEVER -Valid from car Ass. Nr. 27044 $776.45
22 175801 1 L.H. UPPER LEVER -Valid from car Ass. Nr. 27044 $776.45
23 163038 4 FLAMBLOCK FOR UPPER SUPPORT Superseded
24 16043624 4 SCREW Unavailable
25 104030 4 NUT $0.90
26 106419 4 SCREW $50.22
27 148020 4 NUT $5.93
28 150789 4 ECCENTRIC SCREW $70.01
29 175077 4 ECCENTRIC WASHER -Valid after stock exhaustion of 150790 $28.40
30 150238 4 NUT Unavailable
31 163204 1 FRONT ANTI-ROLL BAR -( 27- $1,875.60
32 208324 2 BAR BUFFER -( 27- $69.00
33 133802 2 PLATE $143.20
34 16045024 4 SCREW Unavailable
35 14496524 4 WASHER $0.90
36 190282 2 COMPLETE SPACER $20.69
37 104030 4 NUT $0.90
38 14496524 4 WASHER $0.90
39 148020 2 NUT $5.93
40 152249 2 WASHER Unavailable
41 148773 4 SPACER $14.15
42 149063 2 WASHER $2.31
43 183831 1 R.H. BALL JOINT TIE ROD -Valid from car Ass. Nr. 36439 Unavailable
43 183832 1 L.H. BALL JOINT TIE ROD -Valid from car Ass. Nr. 36439 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
