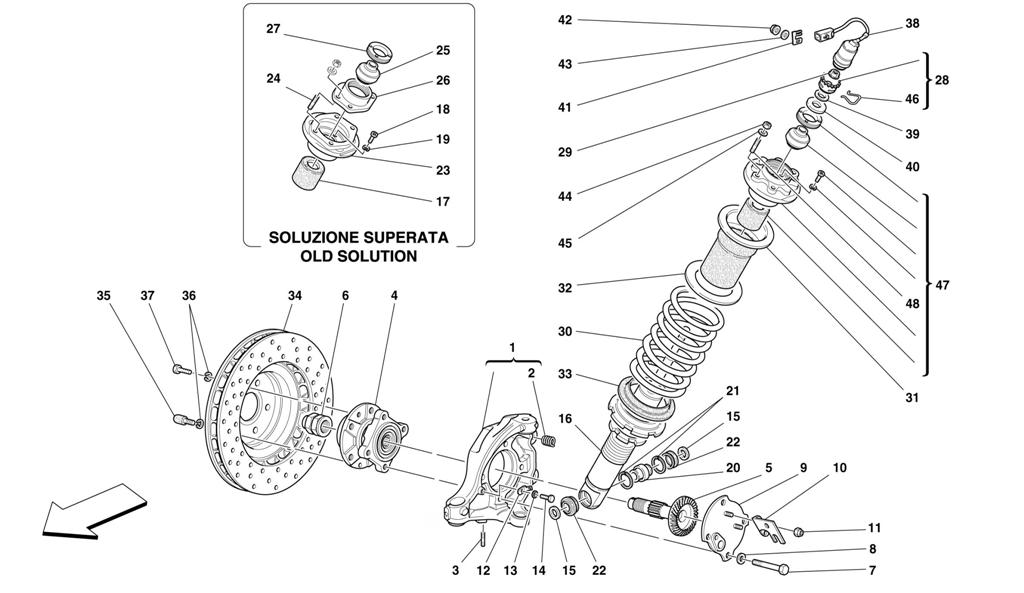

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 184627 *Qty: 1 COMPLETE L.H. STEERING KNUCKLE -Not as spare part now -Replaced by 178887 $2,679.77
Location: - Prev | Next Part: 184626 *Qty: 1 COMPLETE R.H. STEERING KNUCKLE -Not as spare part now -Replaced by 185818 Unavailable
Location: - Prev | Next Part: 178887 *Qty: 1 COMPLETE L.H. STEERING KNUCKLE -Not as spare part now -Replaced by 185819 Unavailable
Location: 1 Prev | Next Part: 184621 *Qty: 1 R.H. STEERING KNUCKLE -Not as spare part -With complete R.H. steering knuckle 185818 Unavailable
Location: 1 Prev | Next Part: 184622 *Qty: 1 L.H. STEERING KNUCKLE -Not as spare part -With complete L.H. steering knuckle 185819 Unavailable
Location: 1 Prev | Next Part: 176184 *Qty: 1 R.H. STEERING KNUCKLE -Not as spare part -With complete R.H. steering knuckle 178886 Unavailable
Location: 1 Prev | Next Part: 176185 *Qty: 1 L.H. STEERING KNUCKLE -Not as spare part -With complete L.H. steering knuckle 178887 Unavailable
Location: 2 Prev | Next Part: 133771 *Qty: 4 THREADED INSERT $4.07
Location: 3 Prev | Next Part: 11000924 *Qty: 4 STUD $1.67
Location: 4 Prev | Next Part: 157900 *Qty: 2 BEARING $1,599.09
Location: 5 Prev | Next Part: 174045 *Qty: 2 FRONT TOOTHED WHEEL $1,184.56
Location: 6 Prev | Next Part: 209184 *Qty: 2 NUT $33.27
Location: 7 Prev | Next Part: 16324034 *Qty: 8 SCREW $14.74
Location: 8 Prev | Next Part: 102901 *Qty: 8 WASHER $0.90
Location: 9 Prev | Next Part: 164925 *Qty: 1 R.H. COVER $649.01
Location: 9 Prev | Next Part: 164926 *Qty: 1 L.H. COVER $726.25
Location: 10 Prev | Next Part: 170177 *Qty: 1 R.H. SUPPORT $223.49
Location: 10 Prev | Next Part: 170178 *Qty: 1 L.H. SUPPORT $279.31
Location: 11 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 12 Prev | Next Part: 143405 *Qty: 2 KEY $0.90
Location: 13 Prev | Next Part: 149951 *Qty: 2 WASHER Superseded
Location: 14 Prev | Next Part: 10977524 *Qty: 2 SCREW $0.90
Location: 15 Prev | Next Part: 153495 *Qty: 4 SPACER WASHER mm. 3.00 $2.21
Location: 15 Prev | Next Part: 153496 *Qty: 0 SPACER WASHER mm. 2.90 -As an alternative of 153495 $2.21
Location: 15 Prev | Next Part: 153497 *Qty: 0 SPACER WASHER mm. 3.10 -As an alternative of 153495 $2.22
Location: 16 Prev | Next Part: 183334 *Qty: 2 FRONT SHOCK ABSORBER $1,423.83
Location: 17 Prev | Next Part: 152329 *Qty: 2 SHOCK ABSORBER PAD -Not as spare now Unavailable
Location: 18 Prev | Next Part: 11021111 *Qty: 8 SCREW -Not as spare part now $0.90
Location: 19 Prev | Next Part: 10519224 *Qty: 8 WASHER -Not as spare part now $0.90
Location: 20 Prev | Next Part: 153285 *Qty: 2 BALL JOINT $413.08
Location: 21 Prev | Next Part: 145478 *Qty: 4 SEEGER RING $2.22
Location: 22 Prev | Next Part: 153286 *Qty: 4 RUBBER $5.00
Location: 23 Prev | Next Part: 172356 *Qty: 2 CUP -Not as spare part now Unavailable
Location: 24 Prev | Next Part: 13543524 *Qty: 8 STUD -Not as spare part now $0.90
Location: 25 Prev | Next Part: 170611 *Qty: 2 BALL JOINT -Not as spare part now Unavailable
Location: 26 Prev | Next Part: 172357 *Qty: 2 UPPER JOINT SUPPORT -Not as spare part now $216.69
Location: 27 Prev | Next Part: 170143 *Qty: 2 RING NUT -Not as spare part now Unavailable
Location: 28 Prev | Next Part: 137824 *Qty: 2 SUPPORT $10.96
Location: 29 Prev | Next Part: 137826 *Qty: 2 NUT $3.70
Location: 30 Prev | Next Part: 175886 *Qty: 2 SPRING -Sold in pair- -Valid for cars with handling "Fiorano equipment" -Optional Unavailable
Location: 30 Prev | Next Part: 163648 *Qty: 2 SPRING -Sold in pair- -Not for cars with handling "Fiorano equipment" $455.86
Location: 30 Prev | Next Part: 169985 *Qty: 2 SPRING -Sold in pair- -As an alternativa -Not for cars with handling "Fiorano equipment" $642.14
Location: 31 Prev | Next Part: 127991 *Qty: 2 COMPLETE SPACER $120.79
Location: 32 Prev | Next Part: 152655 *Qty: 2 WASHER $9.93
Location: 33 Prev | Next Part: 152842 *Qty: 2 WASHER $11.98
Location: 34 Prev | Next Part: 184652 *Qty: 2 FRONT BRAKE DISC -Valid from car Ass. Nr. 33718 $313.85
Location: 35 Prev | Next Part: 104370 *Qty: 2 SCREW -Valid from car Ass. Nr. 33718 $0.90
Location: 35 Prev | Next Part: 157841 *Qty: 2 SCREW -Valid till car Ass. Nr. 33717 $9.76
Location: 36 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 37 Prev | Next Part: 16043424 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 158732 *Qty: 2 ACTUATOR ON THE SHOCK ABSORBER $1,117.93
Location: 39 Prev | Next Part: 160461 *Qty: 2 WASHER $1.13
Location: 40 Prev | Next Part: 170144 *Qty: 2 WASHER $3.82
Location: 41 Prev | Next Part: 155751 *Qty: 2 CLIP $4.87
Location: 42 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 43 Prev | Next Part: 14496324 *Qty: 2 WASHER $3.52
Location: 44 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 45 Prev | Next Part: 12638524 *Qty: 8 WASHER $0.90
Location: 46 Prev | Next Part: 142079 *Qty: 2 CLIP $7.75
Location: 47 Prev | Next Part: 173900 *Qty: 2 COMPLETE SPRING RETAINING CUP Unavailable
Location: 48 Prev | Next Part: 12354524 *Qty: 8 STUD $33.02

* Quantity shown indicates the number of pieces used in the diagram.
