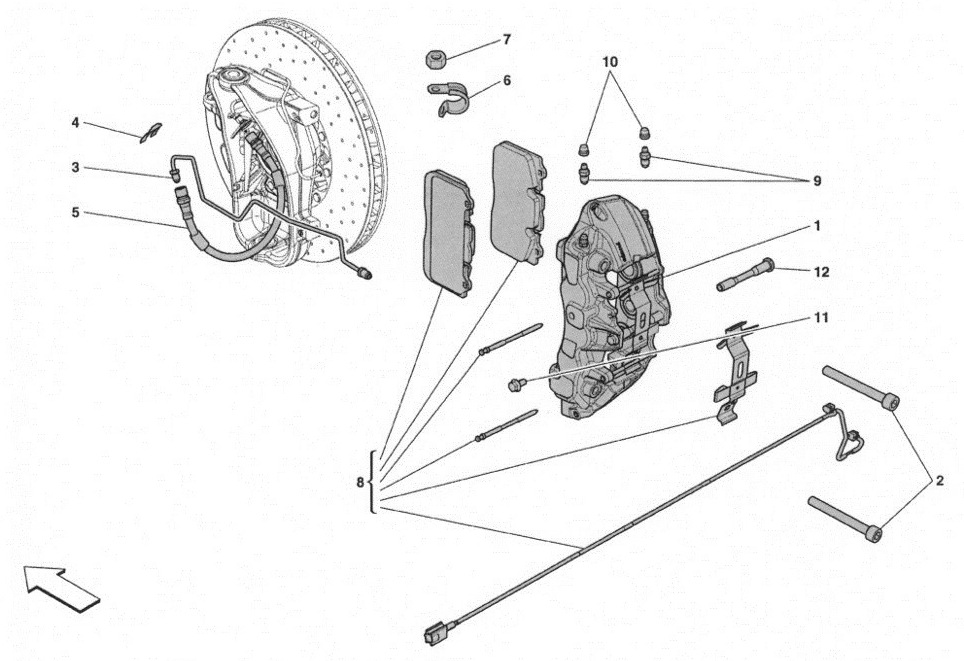

FRONT BRAKE CALIPERS

chevron-left
chevron-right
Go to Split View view-grid

FRONT BRAKE CALIPERS

Location Part # Quantity* Description Price Add To Cart
1 274254 0 FRONT RH CALIPER WITH PADS -Black- $3,842.02
1 275348 0 FRONT RH CALIPER WITH PADS -Anodised black- $3,563.34
1 276775 0 FRONT RH CALIPER WITH PADS -Dark grey- Unavailable
1 267319 0 FRONT RH CALIPER WITH PADS -Silver- Unavailable
1 267318 0 FRONT RH CALIPER WITH PADS -Yellow- $3,842.02
1 267317 0 FRONT RH CALIPER WITH PADS -Scuderia Red- Unavailable
1 267316 0 FRONT RH CALIPER WITH PADS -Red- $3,842.02
1 274252 0 FRONT LH CALIPER WITH PADS -Black- $3,842.02
1 275347 0 FRONT LH CALIPER WITH PADS -Anodised black- $3,563.34
1 276770 0 FRONT LH CALIPER WITH PADS -Dark grey- Unavailable
1 267315 0 FRONT LH CALIPER WITH PADS -Silver- Unavailable
1 267314 0 FRONT LH CALIPER WITH PADS -Yellow- $3,842.02
1 267313 0 FRONT LH CALIPER WITH PADS -Scuderia Red- Unavailable
1 267312 0 FRONT LH CALIPER WITH PADS -Red- $3,842.02
2 195167 0 SCREW -M12 X 1.5 X 95- $24.34
3 254603 0 BRAKE PIPE FROM CALIPER TO RH HOSE $50.02
3 254601 0 BRAKE PIPE FROM CALIPER TO LH HOSE $48.29
4 116374 0 CLIP $3.19
5 254241 0 RUBBER PIPE $60.90
6 10440890 0 BRACKET WITH SHEATH Unavailable
7 14058411 0 NUT Superseded
8 70002035 0 FRONT PAD SET WITH SPRING $1,600.63
9 215665 0 BLEED SCREW $55.20
10 215666 0 CAP $36.22
11 198014 0 FLANGED SCREW $13.99
12 263210 0 TIE-ROD $53.47

* Quantity shown indicates the number of pieces used in the diagram.
