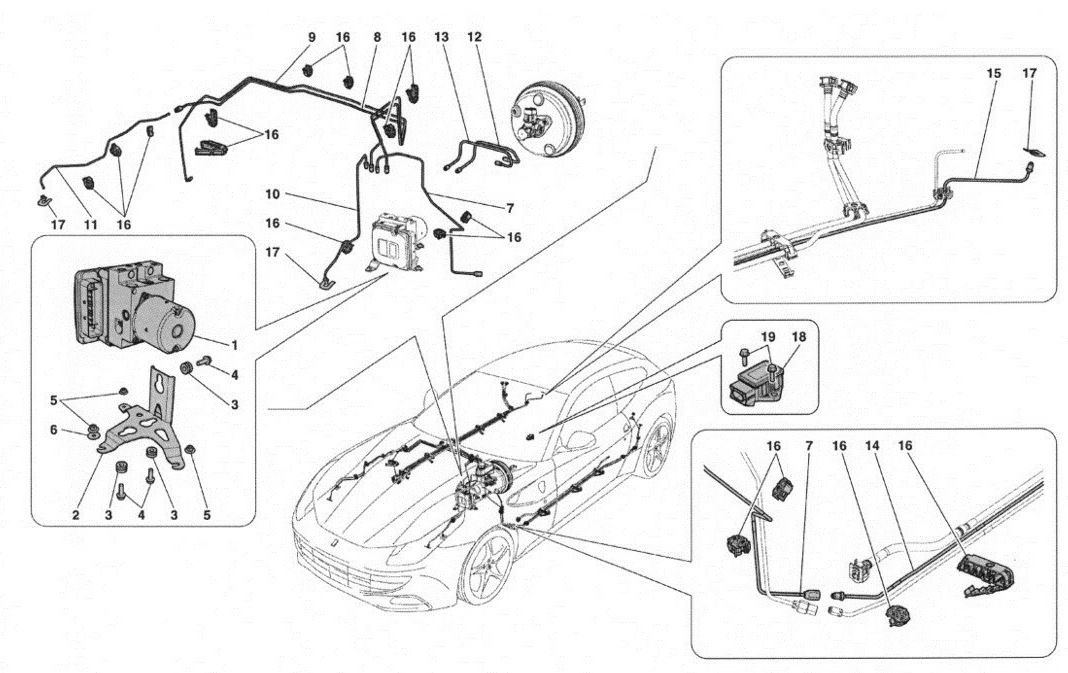

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 269980 0 HYDRAULIC UNIT Unavailable
2 266675 0 ECU MOUNTING BRACKET -Not for RHD- Unavailable
2 273124 0 ECU MOUNTING BRACKET -Applicable for RHD- Unavailable
3 232869 0 PLUG $38.33
4 16287224 0 SCREW -M8 X 25- Superseded
5 14039614 0 NUT Unavailable
6 12647724 0 WASHER Unavailable
7 268757 0 BRAKE PIPE TO LH REAR JUNCTION -Not for RHD- Unavailable
7 277690 0 BRAKE PIPE TO LH REAR JUNCTION -Applicable for RHD- Unavailable
8 268758 0 BRAKE PIPE TO RH FRONT JUNCTION -Not for RHD- Unavailable
8 274098 0 BRAKE PIPE TO RH FRONT JUNCTION -Applicable for RHD- Unavailable
9 268756 0 BRAKE PIPE TO RH REAR JUNCTION -Not for RHD- Unavailable
9 274100 0 BRAKE PIPE TO RH REAR JUNCTION -Applicable for RHD- Unavailable
10 268755 0 BRAKE PIPE TO LH FRONT JUNCTION -Not for RHD- Unavailable
10 274102 0 BRAKE PIPE TO LH FRONT JUNCTION -Applicable for RHD- Unavailable
11 268766 0 BRAKE PIPE FROM JUNCTION TO FRONT RH MODULE -Not for RHD- $45.24
11 274104 0 BRAKE PIPE FROM JUNCTION TO FRONT LH MODULE -Applicable for RHD- $51.35
12 268752 0 REAR PUMP BRAKE PIPE -Not for RHD- Unavailable
12 277688 0 REAR PUMP BRAKE PIPE -Applicable for RHD- Unavailable
13 268753 0 FRONT PUMP BRAKE PIPE -Not for RHD- Unavailable
13 279378 0 FRONT PUMP BRAKE PIPE -Applicable for RHD- Unavailable
14 268771 0 BRAKE PIPE FROM JUNCTION TO REAR LH MODULE $101.17
15 268773 0 BRAKE PIPE FROM JUNCTION TO REAR RH MODULE $88.97
16 234284 0 CLIP -1 compartment- Unavailable
16 234285 0 CLIP -2 compartments- Unavailable
16 234286 0 CLIP -4 compartments- $1.93
16 241118 0 CLIP -5 compartments- $1.62
17 116374 0 CLIP $2.82
18 206070 0 YAW SENSOR $329.09
19 16286124 0 SCREW -M6 X 20- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
