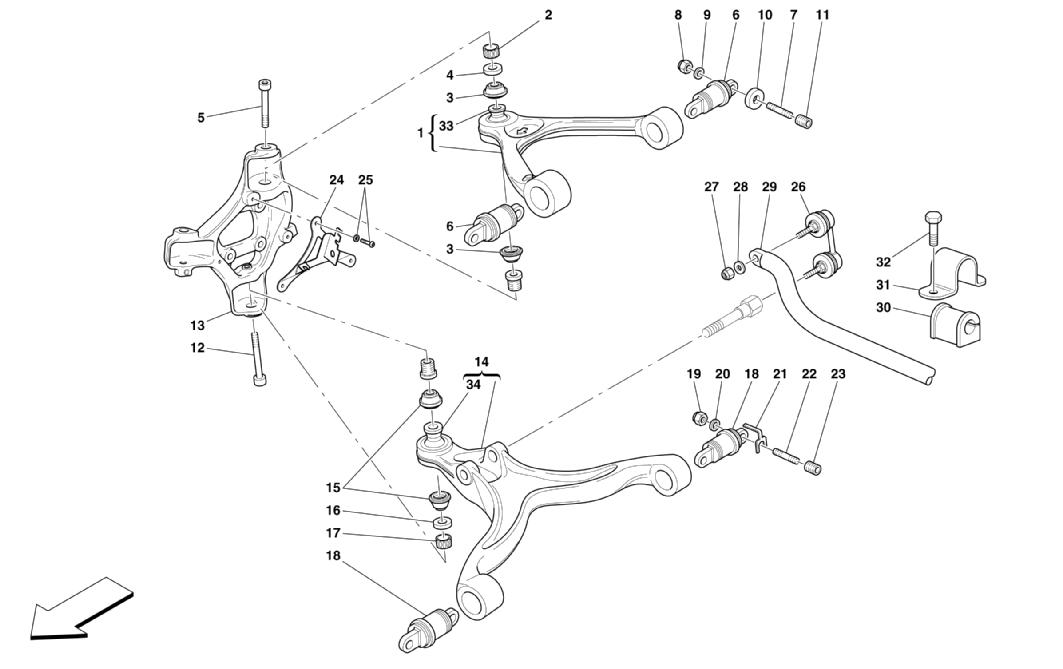

FRONT SUSPENSION - WISHBONES AND STABILIZER BAR

Go to Split View

FRONT SUSPENSION - WISHBONES AND STABILIZER BAR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 207579 *Qty: 2 COMPLETE UPPER LEVER $688.16
Location: 2 Prev | Next Part: 179555 *Qty: 2 COMPENSATOR RING $5.35
Location: 3 Prev | Next Part: 171848 *Qty: 4 BOOT $25.90
Location: 4 Prev | Next Part: 190274 *Qty: 2 SPACER $3.68
Location: 5 Prev | Next Part: 188581 *Qty: 2 SCREW $22.99
Location: 6 Prev | Next Part: 209167 *Qty: 4 FLAMBLOC -Replace together $260.14
Location: 7 Prev | Next Part: 170155 *Qty: 8 THREADED BAR $2.59
Location: 8 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 9 Prev | Next Part: 14496524 *Qty: 8 WASHER $0.90
Location: 10 Prev | Next Part: 124338 *Qty: 8 WASHER $8.51
Location: 11 Prev | Next Part: 13582210 *Qty: 8 THREADED INSERT $8.97
Location: 12 Prev | Next Part: 190272 *Qty: 2 SCREW $33.24
Location: 13 Prev | Next Part: 190730 *Qty: 1 L.H. FRONT STEERING KNUCKLE $1,346.15
Location: 13 Prev | Next Part: 190729 *Qty: 1 R.H. FRONT STEERING KNUCKLE $1,346.15
Location: 14 Prev | Next Part: 207576 *Qty: 2 COMPLETE LOWER LEVER $1,117.68
Location: 15 Prev | Next Part: 171847 *Qty: 4 BOOT $25.90
Location: 16 Prev | Next Part: 190273 *Qty: 2 SPACER $43.83
Location: 17 Prev | Next Part: 179554 *Qty: 2 COMPENSATOR RING $5.54
Location: 18 Prev | Next Part: 196789 *Qty: 4 FLAMBLOC $288.11
Location: 19 Prev | Next Part: 12574521 *Qty: 8 NUT $0.90
Location: 20 Prev | Next Part: 14496624 *Qty: 8 WASHER $0.90
Location: 21 Prev | Next Part: 203312 *Qty: 8 SPACER -Th.1 mm -Possible fitting $8.98
Location: 21 Prev | Next Part: 203314 *Qty: 8 SPACER -Th.2 mm -Possible fitting $2.68
Location: 21 Prev | Next Part: 203316 *Qty: 8 SPACER -Th.3 mm -Possible fitting $71.77
Location: 21 Prev | Next Part: 200938 *Qty: 8 SPACER -Possible fitting $2.68
Location: 21 Prev | Next Part: 203313 *Qty: 8 SPACER -Th.1,5 mm -Possible fitting $71.77
Location: 21 Prev | Next Part: 203315 *Qty: 8 SPACER -Th.2,5 mm -Possible fitting $8.47
Location: 22 Prev | Next Part: 170154 *Qty: 8 THREADED BAR $3.24
Location: 23 Prev | Next Part: 13582310 *Qty: 8 THREADED INSERT $14.48
Location: 24 Prev | Next Part: 196068 *Qty: 1 R.H. STEERING KNUCKLE COVER $38.29
Location: 24 Prev | Next Part: 196066 *Qty: 1 L.H. STEERING KNUCKLE COVER $38.29
Location: 25 Prev | Next Part: 11625724 *Qty: 6 SCREW WITH WASHER $1.02
Location: 26 Prev | Next Part: 191613 *Qty: 2 BALL TIE ROD $104.01
Location: 27 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 28 Prev | Next Part: 12601474 *Qty: 2 WASHER Unavailable
Location: 29 Prev | Next Part: 191612 *Qty: 1 ANTI-ROLL BAR $641.20
Location: 30 Prev | Next Part: 196385 *Qty: 2 BAR BUFFER $44.05
Location: 31 Prev | Next Part: 133802 *Qty: 2 PLATE $10.03
Location: 32 Prev | Next Part: 16043834 *Qty: 4 SCREW Unavailable
Location: 33 Prev | Next Part: 178929 *Qty: 2 BALL JOINT -Not as spare part -Replaced by 203633 Superseded
Location: 33 Prev | Next Part: 203633 *Qty: 2 BALL JOINT Superseded
Location: 34 Prev | Next Part: 203632 *Qty: 2 BALL JOINT Superseded

* Quantity shown indicates the number of pieces used in the diagram.
