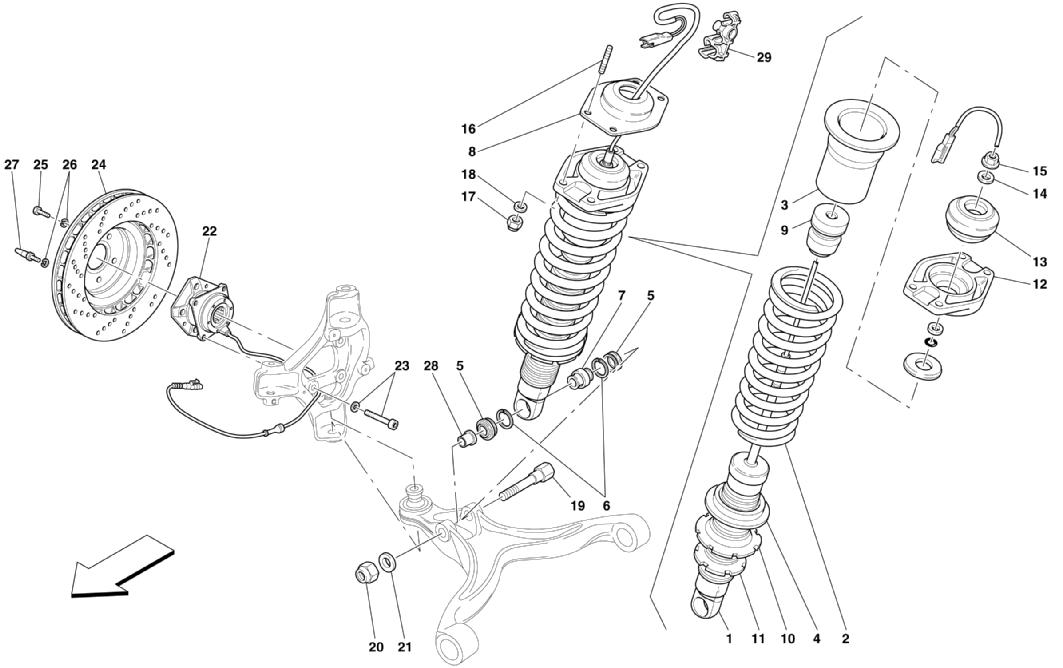

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 214592 *Qty: 2 FRONT SHOCK ABSORBER -Replace together $2,618.65
Location: 1 Prev | Next Part: 190401 *Qty: 2 FRONT SHOCK ABSORBER -Replace together -Not as spare part -Replaced by 214592 Unavailable
Location: 2 Prev | Next Part: 191203 *Qty: 2 SPRING $118.65
Location: 3 Prev | Next Part: 186489 *Qty: 2 UPPER SPACER $21.22
Location: 4 Prev | Next Part: 186487 *Qty: 2 LOWER SPACER $29.33
Location: 5 Prev | Next Part: 153286 *Qty: 4 RUBBER $5.00
Location: 6 Prev | Next Part: 145478 *Qty: 4 FLEXIBLE RING $2.22
Location: 7 Prev | Next Part: 153285 *Qty: 2 BALL JOINT -Valid for shock absorber 190401 Ref.1 $413.08
Location: 7 Prev | Next Part: 157630 *Qty: 2 BALL JOINT -Valid for shock absorber 214592 Ref.1 $72.50
Location: 8 Prev | Next Part: 190332 *Qty: 2 UPPER CUP $8.56
Location: 9 Prev | Next Part: 189998 *Qty: 2 SHOCK ABSORBER PAD $96.49
Location: 10 Prev | Next Part: 186486 *Qty: 2 SPACER Unavailable
Location: 11 Prev | Next Part: 174726 *Qty: 2 RING NUT Unavailable
Location: 12 Prev | Next Part: 190330 *Qty: 2 LOWER CUP $25.27
Location: 13 Prev | Next Part: 204606 *Qty: 2 HYPERBLOCK $55.61
Location: 14 Prev | Next Part: 10520124 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 203795 *Qty: 2 NUT $2.56
Location: 15 Prev | Next Part: 183417 *Qty: 2 NUT -Not as spare part -Replaced by 203795 $2.33
Location: 16 Prev | Next Part: 13543634 *Qty: 8 STUD $1.05
Location: 17 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 18 Prev | Next Part: 14496524 *Qty: 8 WASHER $0.90
Location: 19 Prev | Next Part: 191619 *Qty: 2 SCREW Unavailable
Location: 20 Prev | Next Part: 148020 *Qty: 2 NUT $4.84
Location: 21 Prev | Next Part: 12646921 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 197232 *Qty: 2 BEARING FOR WHEEL $768.75
Location: 23 Prev | Next Part: 190723 *Qty: 8 SCREW WITH WASHER $10.86
Location: 24 Prev | Next Part: 198487 *Qty: 2 FRONT BRAKE DISC $569.75
Location: 25 Prev | Next Part: 16043424 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 104370 *Qty: 2 BRAKE DISC FIXING SCREW $0.90
Location: 28 Prev | Next Part: 190702 *Qty: 2 SPACER $14.58
Location: 29 Prev | Next Part: 188335 *Qty: 2 FIXING CLIP $1.80

* Quantity shown indicates the number of pieces used in the diagram.
