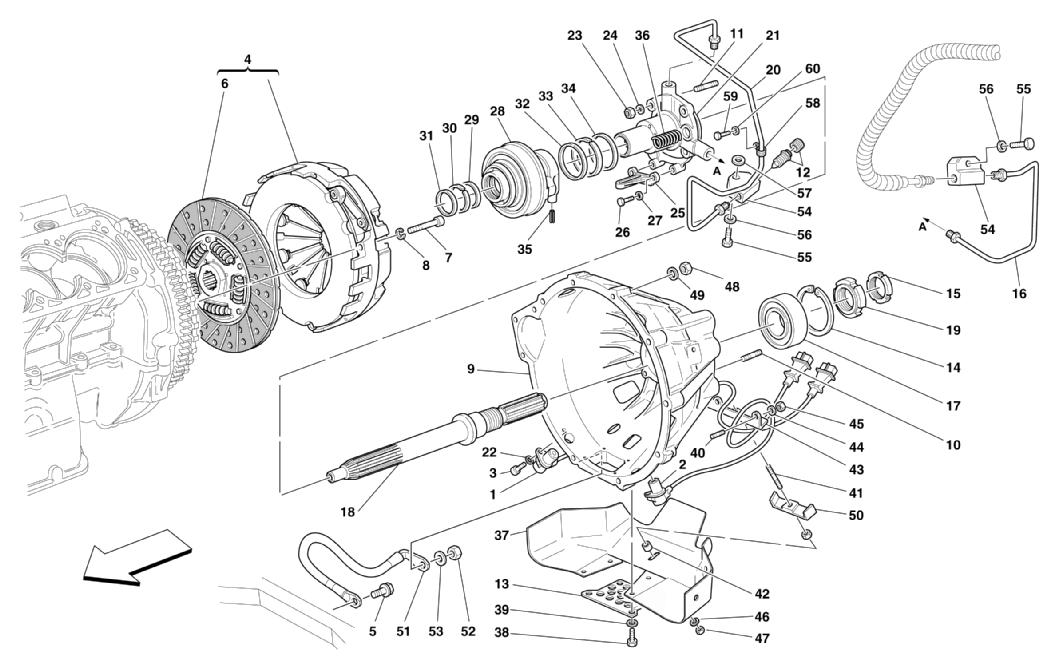

CLUTCH AND CONTROLS -NOT FOR F1-

Location Part # Quantity* Description Price Add To Cart
1 189548 1 R.H. SIDE ANGOLAR SPEED SENSOR $115.28
2 189540 1 L.H. SIDE ANGOLAR SPEED SENSOR $259.82
3 14305124 2 SCREW $0.90
4 194775 1 COMPLETE CLUTCH $3,400.64
5 16296421 1 SCREW $36.24
6 194776 1 CLUTCH DISC $1,429.10
7 14305974 9 SCREW $0.90
8 127494 9 WASHER $0.90
9 195080 1 CLUTCH HOUSING -Not as spare part -With complete clutch housing Unavailable
9 208102 1 COMPLETE CLUTCH HOUSING $5,403.64
10 13546334 8 STUD $1.20
11 13543124 4 STUD Unavailable
12 121699 1 BLEEDER SCREW $59.36
13 144441 1 CLUTCH HOUSING SMALL COVER $3.84
14 144511 1 STOP RING Unavailable
15 165576 1 RING NUT $24.50
16 195133 1 OIL DELIVERY TUBE $45.63
17 145805 1 BEARING Unavailable
18 165573 1 CLUTCH SHAFT $759.20
19 165575 1 RING NUT $24.50
20 195134 1 VENT PIPE $46.24
21 169137 1 FLANGE WITH SLEEVE $910.00
22 12601274 2 WASHER $0.90
23 133989 4 NUT $0.90
24 127496 4 WASHER $0.90
25 151693 1 PLATE $60.00
26 10977524 2 SCREW $0.90
27 127493 2 WASHER $0.90
28 177201 1 THRUST BEARING $1,276.85
28 CRB456/550 1 Thrust Bearing with Seals $756.00
29 154505 1 SEAL RING $14.84
30 154504 1 RING $7.90
31 154550 1 SCRAPER RING $28.91
32 154508 1 SEAL RING $46.57
33 154507 1 RING $4.45
34 154551 1 SCRAPER RING $31.04
35 13904970 1 FLEXIBLE PIN Unavailable
36 155207 2 PRELOAD SPRING $5.00
37 204862 1 SHIELD FOR FASE SENSOR PROTECTION $391.69
38 10977824 4 SCREW $2.72
39 12601174 4 WASHER $0.90
40 13540824 2 STUD Unavailable
41 155177 1 STUD $11.25
42 205046 1 SPACER $4.24
43 200137 1 SUPPORT $55.20
44 12639724 2 WASHER $0.90
45 102741 2 NUT $0.90
46 11199274 1 WASHER Unavailable
47 15896470 1 NUT Unavailable
48 16100814 5 NUT Unavailable
49 12601374 5 WASHER $0.90
50 200138 1 SUPPORT $49.27
51 202266 1 GROUND CABLE $77.22
52 15896470 1 NUT Unavailable
53 11199274 1 WASHER Unavailable
54 139471 2 UNION $48.29
55 10902624 2 SCREW Unavailable
56 11197771 2 WASHER Superseded
57 12647801 1 WASHER $2.05
58 10440990 1 BRACKET WITH SHEATH $1.97
59 10902024 1 SCREW $0.90
60 12639724 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
