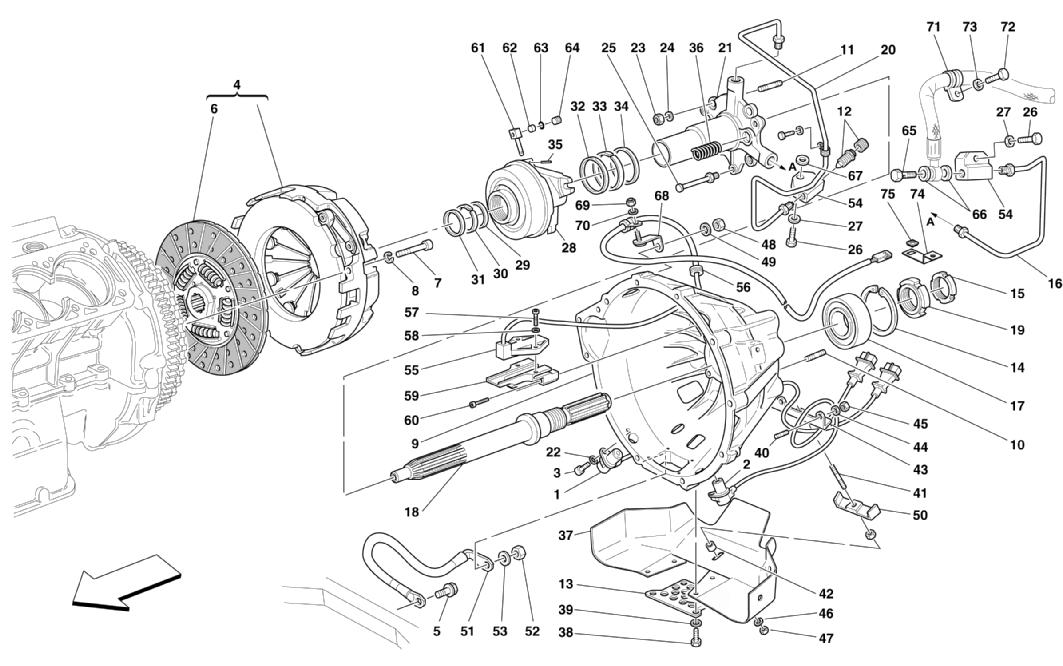

CLUTCH AND CONTROLS -VALID FOR F1-

Location Part # Quantity* Description Price Add To Cart
1 189548 1 R.H. SIDE ANGOLAR SPEED SENSOR $115.28
2 189540 1 L.H. SIDE ANGOLAR SPEED SENSOR $259.82
3 14305124 2 SCREW $0.90
4 194775 1 COMPLETE CLUTCH $3,400.64
5 16296421 1 SCREW $36.24
6 194776 1 CLUTCH DISC $1,429.10
7 14305974 9 SCREW $0.90
7 14305674 9 SCREW -Not as spare part -Replaced by 14305974 $0.90
8 127494 9 WASHER $0.90
9 208102 1 COMPLETE CLUTCH HOUSING $5,403.64
9 195080 1 CLUTCH HOUSING -Not as spare part -With complete clutch housing Unavailable
10 13546334 8 STUD $1.20
11 13543124 4 STUD Unavailable
12 121699 1 BLEEDER SCREW $59.36
13 144441 1 CLUTCH HOUSING SMALL COVER $3.84
14 144511 1 STOP RING Unavailable
15 165576 1 RING NUT $24.50
16 195133 1 OIL DELIVERY TUBE $45.63
17 145805 1 BEARING Unavailable
18 165573 1 CLUTCH SHAFT $759.20
19 165575 1 RING NUT $24.50
20 195134 1 VENT PIPE $46.24
21 170411 1 FLANGE FOR SERVOMECHANISM $1,145.00
22 12601274 2 WASHER $0.90
23 133989 4 NUT $0.90
24 127496 4 WASHER $0.90
25 166650 3 STUD $50.02
26 10902624 2 SCREW Unavailable
27 11197771 2 WASHER Superseded
28 CRB575F1-612F1S 1 THRUST BEARING $910.00
29 181838 1 SEAL RING $25.86
30 170416 1 RING $3.27
31 181837 1 SCRAPER RING $25.86
32 181828 1 SEAL RING $31.04
33 154507 1 RING $4.45
34 181836 1 SCRAPER RING $29.31
35 14158570 1 FLEXIBLE PIN $0.90
36 155207 2 PRELOAD SPRING $5.00
37 204862 1 SHIELD FOR FASE SENSOR PROTECTION $391.69
38 10977824 4 SCREW $2.72
39 12601174 4 WASHER $0.90
40 13540824 2 STUD Unavailable
41 155177 1 STUD $11.25
42 205046 1 SPACER $4.24
43 200137 1 SUPPORT $55.20
44 12639724 2 WASHER $0.90
45 102741 2 NUT $0.90
46 11199274 1 WASHER Unavailable
47 15896470 1 NUT Unavailable
48 16100814 5 NUT Unavailable
49 12601374 5 WASHER $0.90
50 146654 1 SUPPORT $96.61
51 202266 1 GROUND CABLE $77.22
52 15896470 1 NUT Unavailable
53 11199274 1 WASHER Unavailable
54 139471 2 UNION $48.29
55 182311 1 COMPLETE SENSOR KIT -Includes sensor + cable grommet ref.56 and magnet ref.62 Superseded
56 10398480 1 CABLE GROMMET -Not supplied- -Included in 182311 $1.93
57 14303324 2 SCREW Unavailable
58 10519224 2 WASHER $0.90
59 200165 1 SENSOR SUPPORT Superseded
60 14304424 2 SCREW Unavailable
61 166676 1 PIN $48.70
62 178060 1 MAGNET -Not supplied- -Included in 182311 $828.22
63 165658 1 O.R. GASKET $10.80
64 167802 1 PLUG $57.83
65 171454 1 UNION $71.54
66 10261060 2 GASKET $0.90
67 12647801 1 WASHER $2.05
68 149694 1 BRACKET $8.20
69 102741 1 NUT $0.90
70 12639724 1 WASHER $0.90
71 10441590 1 BRACKET Unavailable
72 10902024 1 SCREW $0.90
73 12639724 1 WASHER $0.90
74 214436 1 BRACKET FOR CONNECTOR FIXING $4.97
75 187161 1 CLIP $4.97

* Quantity shown indicates the number of pieces used in the diagram.
