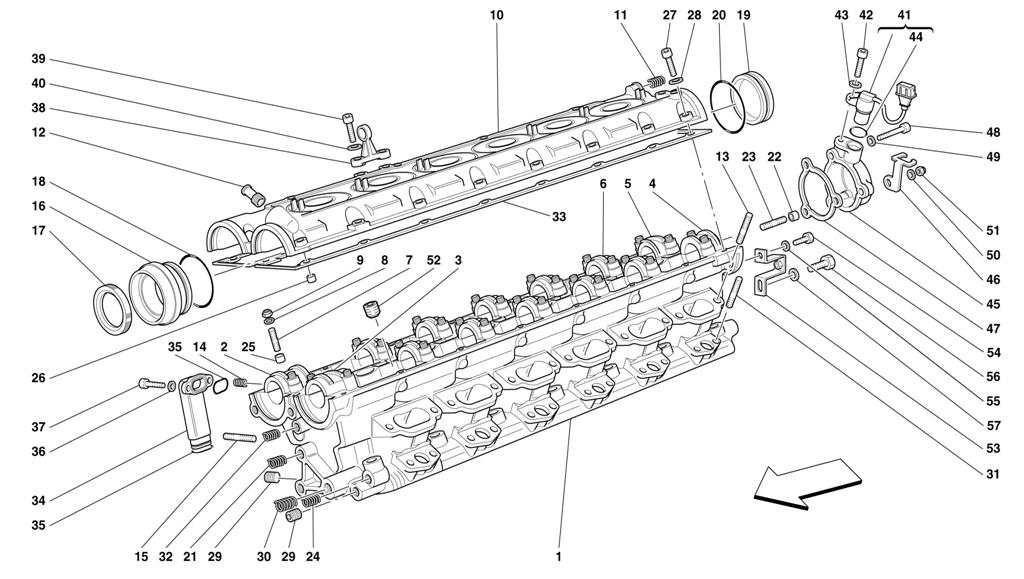

R.H. CYLINDER HEAD

Location Part # Quantity* Description Price Add To Cart
- 178848 1 COMPLETE R.H. CYLINDERS HEAD Unavailable
1 178793 1 RIGHT CYLINDER HEAD -Not as spare part -With complete cylinder head Unavailable
2 149844 1 RIGHT FRONT CAP -Not as spare part -With complete cylinder head Unavailable
3 149829 1 LEFT FRONT CAP -Not as spare part -With complete cylinder head Unavailable
4 149864 1 LEFT REAR CAP -Not as spare part -With complete cylinder head Unavailable
5 149862 1 RIGHT REAR CAP -Not as spare part -With complete cylinder head Unavailable
6 152505 10 INTERMEDIATE CAP -Not as spare part -With complete cylinder head Unavailable
7 13541424 28 STUD $0.90
8 11197771 28 WASHER Superseded
9 15896214 28 NUT Unavailable
10 151675 1 R.H. CYLINDERS HEAD COVER -Not as spare part -With complete cylinder head Unavailable
11 13525470 1 THREADED INSERT Unavailable
12 154525 1 UNION Unavailable
13 13541124 12 STUD Unavailable
14 13525170 2 THREADED INSERT $0.90
15 13516824 12 STUD Unavailable
16 148022 1 FRONT COVER $50.02
17 163987 1 GASKET $20.00
18 117275 1 O.R. GASKET $9.28
19 148023 1 REAR SMALL COVER $25.86
20 117275 1 O.R. GASKET $9.28
21 13525770 2 THREADED INSERT Unavailable
22 102725 2 DOWEL $1.50
23 13541324 2 STUD $2.58
24 13525870 1 THREADED INSERT Unavailable
25 102725 28 DOWEL $1.50
26 102725 2 DOWEL $1.50
27 156834 18 SCREW Unavailable
28 12601274 18 WASHER $0.90
29 14326150 2 PLUG Unavailable
30 13524670 1 THREADED INSERT Unavailable
31 11500224 12 STUD Unavailable
32 13525570 1 THREADED INSERT $2.86
33 140753 1 COVER GASKET $58.65
34 154647 1 OIL EXHAUST DUCTING $132.41
35 142599 2 O.R. GASKET $1.48
36 12601174 2 WASHER $0.90
37 14304224 2 SCREW Unavailable
38 151688 1 SUPPORT FOR ACCELERATOR CABLE $46.57
39 14305224 2 SCREW Unavailable
40 12604274 2 WASHER $0.90
41 150866 1 PHASE SENSOR $454.70
42 14305224 1 SCREW Unavailable
43 12601274 2 WASHER $0.90
44 150867 1 SEAL RING $2.42
45 151275 1 R.H. PHASE SENSOR SUPPORT $888.79
46 178717 1 BRACKET Unavailable
47 140787 1 GASKET $12.40
48 14305521 1 SCREW Unavailable
49 12604274 1 WASHER $0.90
50 12601274 1 WASHER $0.90
51 102741 1 NUT $0.90
52 127635 4 THREADED PLUG $4.71
53 157910 1 BRACKET $39.50
54 10902024 1 SCREW $0.90
55 127494 1 WASHER $0.90
56 16043124 1 SCREW $0.90
57 127496 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
