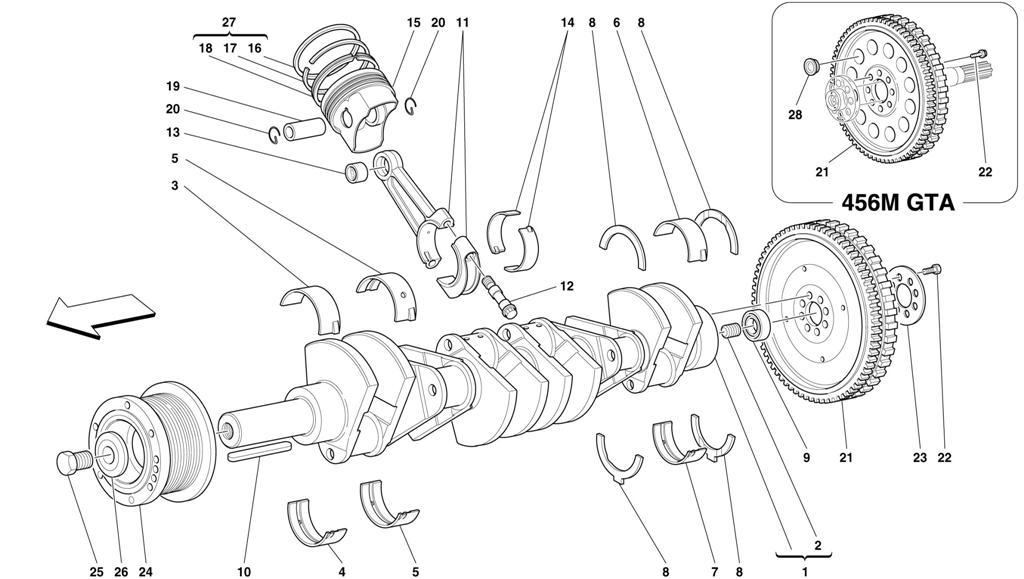

DRIVING SHAFT - CONNECTING RODS AND PISTONS

Go to Split View

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 173484 *Qty: 1 HALF BEARING SET -NOMINAL $1,250.49
Location: - Prev | Next Part: 173485 *Qty: 1 HALF BEARING SET -1st UNDERSIZE mm. 0,254 $1,843.54
Location: - Prev | Next Part: 173486 *Qty: 1 HALF BEARING SET -2nd UNDERSIZE mm. 0,508 $1,843.54
Location: 1 Prev | Next Part: 140501 *Qty: 1 CRANKSHAFT $3,290.37
Location: 2 Prev | Next Part: 163528 *Qty: 1 THREADED PLUG $4.51
Location: 8 Prev | Next Part: 164108 *Qty: 2 LOWER SHIM -Not as spare part -With the complete series 173484 $15.72
Location: 8 Prev | Next Part: 164109 *Qty: 0 LOWER SHIM 1st OVERSIZE mm 0.127 -Not as spare part -With the complete series 173485 Call
Location: 8 Prev | Next Part: 164110 *Qty: 0 LOWER SHIM 2nd OVERSIZE mm 0,254 -Not as spare part -With the complete series 173486 Call
Location: 8 Prev | Next Part: 164111 *Qty: 2 UPPER SHIM -Not as spare part -With the complete series 173484 $15.72
Location: 8 Prev | Next Part: 164112 *Qty: 0 UPPER SHIM 1st OVERSIZE mm 0.127 -Not as spare part -With the complete series 173485 Call
Location: 8 Prev | Next Part: 164113 *Qty: 0 UPPER SHIM 2nd OVERSIZE mm 0,254 -Not as spare part -With the complete series 173486 Call
Location: 9 Prev | Next Part: 103877 *Qty: 1 BEARING FOR SHAFT -Not for 456M GTA $29.17
Location: 10 Prev | Next Part: 144876 *Qty: 1 KEY $5.19
Location: 11 Prev | Next Part: 155613 *Qty: 12 COMPLETE CONNECTING ROD AND HAT $504.36
Location: 12 Prev | Next Part: 150966 *Qty: 24 CONNECTING ROD TIGHTENING SCREW $12.44
Location: 13 Prev | Next Part: 170047 *Qty: 12 BUSHING $47.64
Location: 14 Prev | Next Part: 106183 *Qty: 24 CONNECTING ROD HALF BEARING $21.10
Location: 14 Prev | Next Part: 100151 *Qty: 0 CONNECTING ROD HALF BEARING 1st UNDERSIZE mm 0.254 $70.43
Location: 14 Prev | Next Part: 100152 *Qty: 0 CONNECTING ROD HALF BEARING 2nd UNDERSIZE mm 0.508 $99.66
Location: 15 Prev | Next Part: 168173 *Qty: 12 PISTON WITH RINGS $404.23
Location: 19 Prev | Next Part: 154717 *Qty: 12 PIN $38.24
Location: 20 Prev | Next Part: 152993 *Qty: 24 STOP RING $5.05
Location: 21 Prev | Next Part: 170774 *Qty: 1 ENGINE FLYWHEEL -Valid for 456M GTA $1,110.15
Location: 21 Prev | Next Part: 193051 *Qty: 1 ENGINE FLYWHEEL -Not for 456M GTA $1,308.17
Location: 22 Prev | Next Part: 155750 *Qty: 8 SCREW -Valid for 456M GTA $21.51
Location: 22 Prev | Next Part: 103875 *Qty: 8 SCREW -Not for 456M GTA Superseded
Location: 23 Prev | Next Part: 103876 *Qty: 1 WASHER -Not for 456 GTA $10.96
Location: 24 Prev | Next Part: 175690 *Qty: 1 TORSION DAMPER -Valid for 456M GTA Call
Location: 24 Prev | Next Part: 168565 *Qty: 1 TORSION DAMPER -Not for 456M GTA Call
Location: 25 Prev | Next Part: 140925 *Qty: 1 SCREW Call
Location: 26 Prev | Next Part: 140922 *Qty: 1 WASHER Call
Location: 27 Prev | Next Part: 173535 *Qty: 12 PISTONS RINGS SET $312.61
Location: 28 Prev | Next Part: 111540 *Qty: 6 PLUG -Valid for 456M GTA Call

* Quantity shown indicates the number of pieces used in the diagram.
