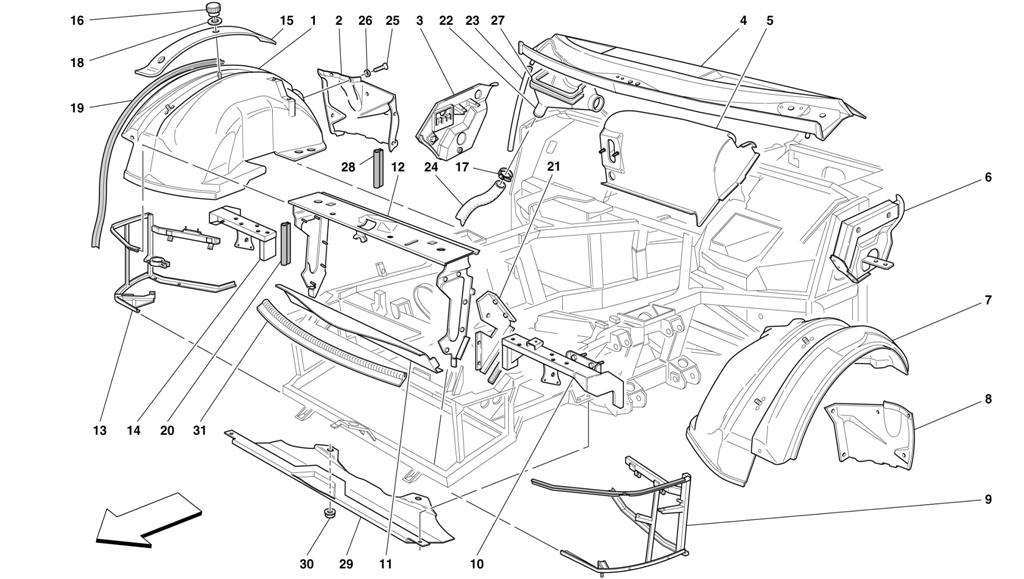

FRONT STRUCTURES AND COMPONENTS

Go to Split View

FRONT STRUCTURES AND COMPONENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65646800 *Qty: 1 R.H. FRONT UPPER WHEELHOUSE -Valid for RHD $355.15
Location: 1 Prev | Next Part: 65419700 *Qty: 1 R.H. FRONT UPPER WHEELHOUSE -Not for RHD $389.29
Location: 2 Prev | Next Part: 65509500 *Qty: 1 R.H. WHEELHOUSE REAR PANEL $111.05
Location: 3 Prev | Next Part: 65582200 *Qty: 1 R.H. HINGE CONNECTION -Not for RHD Call
Location: 3 Prev | Next Part: 65847500 *Qty: 1 R.H. HINGE CONNECTION -Valid for RHD $120.32
Location: 4 Prev | Next Part: 65801600 *Qty: 1 LOWER WINDSHIELD CROSS MEMBER -Not for RHD $1,095.69
Location: 4 Prev | Next Part: 65890900 *Qty: 1 LOWER WINDSHIELD CROSS MEMBER -Valid for RHD Call
Location: 5 Prev | Next Part: 63855800 *Qty: 1 PROTECTION FOR AIR CONDITIONING -Valid for USA, CDN and J $412.00
Location: 5 Prev | Next Part: 177392 *Qty: 1 PROTECTION FOR AIR CONDITIONING -Not for USA, CDN, J and RHD $335.20
Location: 5 Prev | Next Part: 177571 *Qty: 1 PROTECTION FOR AIR CONDITIONING -Valid for RHD $379.87
Location: 6 Prev | Next Part: 65627800 *Qty: 1 L.H. HINGE CONNECTION -Not for RHD Call
Location: 6 Prev | Next Part: 65847600 *Qty: 1 L.H. HINGE CONNECTION -Valid for RHD $120.32
Location: 7 Prev | Next Part: 65647000 *Qty: 1 L.H. FRONT UPPER WHEELHOUSE -Valid for RHD $389.29
Location: 7 Prev | Next Part: 65419800 *Qty: 1 L.H. FRONT UPPER WHEELHOUSE -Not for RHD $389.29
Location: 8 Prev | Next Part: 65509600 *Qty: 1 L.H. WHEELHOUSE REAR PANEL $111.05
Location: 9 Prev | Next Part: 65447000 *Qty: 1 L.H. FRONT FRAME $756.84
Location: 10 Prev | Next Part: 65446600 *Qty: 1 L.H. HEAD LAMP SUPPORT $394.32
Location: 11 Prev | Next Part: 65467200 *Qty: 1 LOWER AIR CONVEYOR $101.44
Location: 12 Prev | Next Part: 63789400 *Qty: 1 FRONT CROSS MEMBER -Valid till car Ass. Nr. 30203 $335.21
Location: 12 Prev | Next Part: 179534 *Qty: 1 FRONT CROSS MEMBER -Valid from car Ass. Nr. 30204 $742.56
Location: 13 Prev | Next Part: 65446900 *Qty: 1 R.H. FRONT FRAME $756.84
Location: 14 Prev | Next Part: 65446500 *Qty: 1 R.H. HEAD LAMP SUPPORT $394.32
Location: 15 Prev | Next Part: 65142100 *Qty: 2 COVER $29.54
Location: 16 Prev | Next Part: 63198900 *Qty: 6 RING NUT $58.67
Location: 17 Prev | Next Part: 13000690 *Qty: 1 SCREW COLLAR $0.90
Location: 18 Prev | Next Part: 65550400 *Qty: 6 SPACER $1.26
Location: 19 Prev | Next Part: 65550300 *Qty: 2 GASKET Call
Location: 20 Prev | Next Part: 64329000 *Qty: 2 LATERAL GASKET $5.37
Location: 21 Prev | Next Part: 63480000 *Qty: 1 R.H. CONVEYOR LATERAL PANEL $162.59
Location: 21 Prev | Next Part: 63480100 *Qty: 1 L.H. CONVEYOR LATERAL PANEL $162.59
Location: 22 Prev | Next Part: 65500700 *Qty: 1 AIR DUCTING -Valid for RHD Call
Location: 22 Prev | Next Part: 63200700 *Qty: 1 AIR DUCTING -Not for RHD Call
Location: 23 Prev | Next Part: 63891600 *Qty: 2 WATER EXHAUST PIPE $9.24
Location: 24 Prev | Next Part: 63200800 *Qty: 1 WATER EXHAUST TUBE -Not for RHD $53.91
Location: 24 Prev | Next Part: 64537300 *Qty: 1 WATER EXHAUST TUBE -Valid for RHD $79.49
Location: 25 Prev | Next Part: 15688375 *Qty: 18 SCREW $0.90
Location: 26 Prev | Next Part: 12638177 *Qty: 20 WASHER Superseded
Location: 27 Prev | Next Part: 63201100 *Qty: 1 AIR DUCTING GASKET $5.95
Location: 28 Prev | Next Part: 64517200 *Qty: 2 GASKET Call
Location: 29 Prev | Next Part: 177901 *Qty: 1 COMPLETE SHIELD $155.34
Location: 30 Prev | Next Part: 13046114 *Qty: 2 NUT $0.90
Location: 31 Prev | Next Part: 64328900 *Qty: 1 GASKET $9.61

* Quantity shown indicates the number of pieces used in the diagram.
