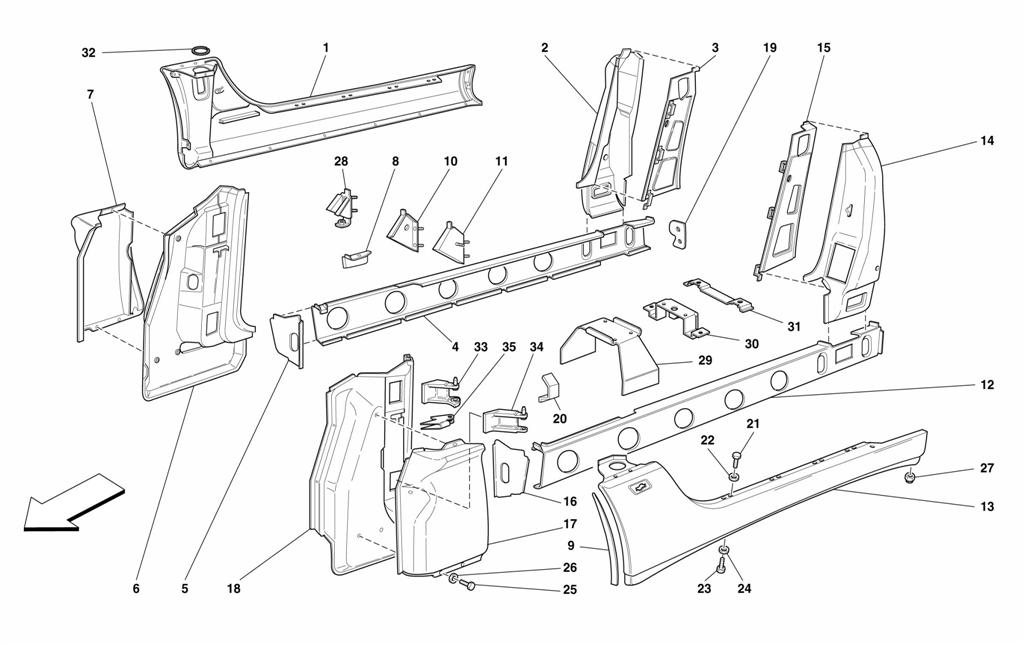

CENTRAL STRUCTURES AND COMPONENTS

Go to Split View

CENTRAL STRUCTURES AND COMPONENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65558800 *Qty: 1 COVERING FOR R.H. SIDE MEMBER -Not for USA and CDN Call
Location: 1 Prev | Next Part: 65655100 *Qty: 1 COVERING FOR R.H. SIDE MEMBER -Valid for USA and CDN Call
Location: 2 Prev | Next Part: 65575500 *Qty: 1 R.H. EXTERNAL REAR COLUMN $367.77
Location: 3 Prev | Next Part: 66092000 *Qty: 1 R.H. INTERNAL REAR COLUMN $131.12
Location: 4 Prev | Next Part: 63211611 *Qty: 1 R.H. SIDE MEMBER $684.01
Location: 5 Prev | Next Part: 63212000 *Qty: 1 R.H. FRONT DIAPHRAGM $13.98
Location: 6 Prev | Next Part: 63199800 *Qty: 1 R.H. EXTERNAL COLUMN COMPLETE $202.31
Location: 7 Prev | Next Part: 63201500 *Qty: 1 R.H. FRONT EXTERNAL SIDE PANEL $328.00
Location: 8 Prev | Next Part: 63785300 *Qty: 2 R.H. FRONT BRACKET $13.80
Location: 9 Prev | Next Part: 65833500 *Qty: 1 R.H. PROTECTION Call
Location: 9 Prev | Next Part: 65833400 *Qty: 1 L.H. PROTECTION Call
Location: 10 Prev | Next Part: 65833500 *Qty: 1 R.H. BRACKET FOR INSTRUMENT PANEL FIXING -Not for RHD Call
Location: 10 Prev | Next Part: 63761400 *Qty: 1 R.H. BRACKET FOR INSTRUMENT PANEL FIXING -Valid for RHD $8.89
Location: 11 Prev | Next Part: 64041100 *Qty: 1 L.H. BRACKET FOR INSTRUMENT PANEL FIXING -Not for RHD Call
Location: 11 Prev | Next Part: 63761600 *Qty: 1 L.H. BRACKET FOR INSTRUMENT PANEL FIXING -Valid for RHD $11.47
Location: 12 Prev | Next Part: 64041000 *Qty: 1 L.H. SIDE MEMBER $27.04
Location: 13 Prev | Next Part: 63211711 *Qty: 1 EXTERNAL COVERING FOR L.H. SIDE MEMBER -Not for USA and CDN $684.01
Location: 13 Prev | Next Part: 65558900 *Qty: 1 EXTERNAL COVERING FOR L.H. SIDE MEMBER -Valid for USA and CDN $1,253.70
Location: 14 Prev | Next Part: 65655200 *Qty: 1 L.H. EXTERNAL REAR COLUMN $1,253.70
Location: 15 Prev | Next Part: 65575600 *Qty: 1 L.H. INTERNAL REAR COLUMN $383.23
Location: 16 Prev | Next Part: 65442900 *Qty: 1 L.H. FRONT DIAPHRAGM Call
Location: 17 Prev | Next Part: 63212100 *Qty: 1 L.H. FRONT EXTERNAL SIDE PANEL $13.98
Location: 18 Prev | Next Part: 63201600 *Qty: 1 L.H. EXTERNAL COLUMN COMPLETE $672.35
Location: 19 Prev | Next Part: 63199900 *Qty: 1 R.H. REAR LOWER CARPET SHIELD $202.31
Location: 19 Prev | Next Part: 63213600 *Qty: 1 L.H. REAR LOWER CARPET SHIELD $50.08
Location: 20 Prev | Next Part: 63785600 *Qty: 1 R.H. FRONT BRACKET $13.80
Location: 20 Prev | Next Part: 63213700 *Qty: 1 L.H. FRONT BRACKET $50.08
Location: 21 Prev | Next Part: 63785500 *Qty: 14 SCREW $27.90
Location: 22 Prev | Next Part: 13833224 *Qty: 16 WASHER $0.90
Location: 23 Prev | Next Part: 12638124 *Qty: 12 SCREW $0.90
Location: 24 Prev | Next Part: 10902380 *Qty: 12 WASHER $0.90
Location: 25 Prev | Next Part: 12643770 *Qty: 6 SCREW $0.90
Location: 26 Prev | Next Part: 13833224 *Qty: 6 WASHER $0.90
Location: 27 Prev | Next Part: 12638124 *Qty: 4 NUT $0.90
Location: 28 Prev | Next Part: 13832101 *Qty: 2 BRACKET FOR DASHBOARD FIXING $0.90
Location: 29 Prev | Next Part: 175556 *Qty: 1 AIR BAG UNIT FIXING BRACKET $19.58
Location: 30 Prev | Next Part: 174878 *Qty: 1 REAR BRACKET FOR FRONT CONSOLE FIXING $279.34
Location: 31 Prev | Next Part: 175624 *Qty: 1 BRACKET FOR REAR TUNNEL FIXING $16.75
Location: 32 Prev | Next Part: 64387000 *Qty: 2 GASKET $5.80
Location: 33 Prev | Next Part: 63189100 *Qty: 1 R.H. UPPER FIXED HINGE $174.15
Location: 33 Prev | Next Part: 63189200 *Qty: 1 L.H. UPPER FIXED HINGE $174.15
Location: 34 Prev | Next Part: 63188500 *Qty: 1 R.H. LOWER FIXED HINGE $174.15
Location: 34 Prev | Next Part: 63188600 *Qty: 1 L.H. LOWER FIXED HINGE $174.15
Location: 35 Prev | Next Part: 179961 *Qty: 1 R.H. TIE-ROD SUPPORT Call
Location: 35 Prev | Next Part: 180173 *Qty: 1 L.H. TIE-ROD SUPPORT $11.13

* Quantity shown indicates the number of pieces used in the diagram.
