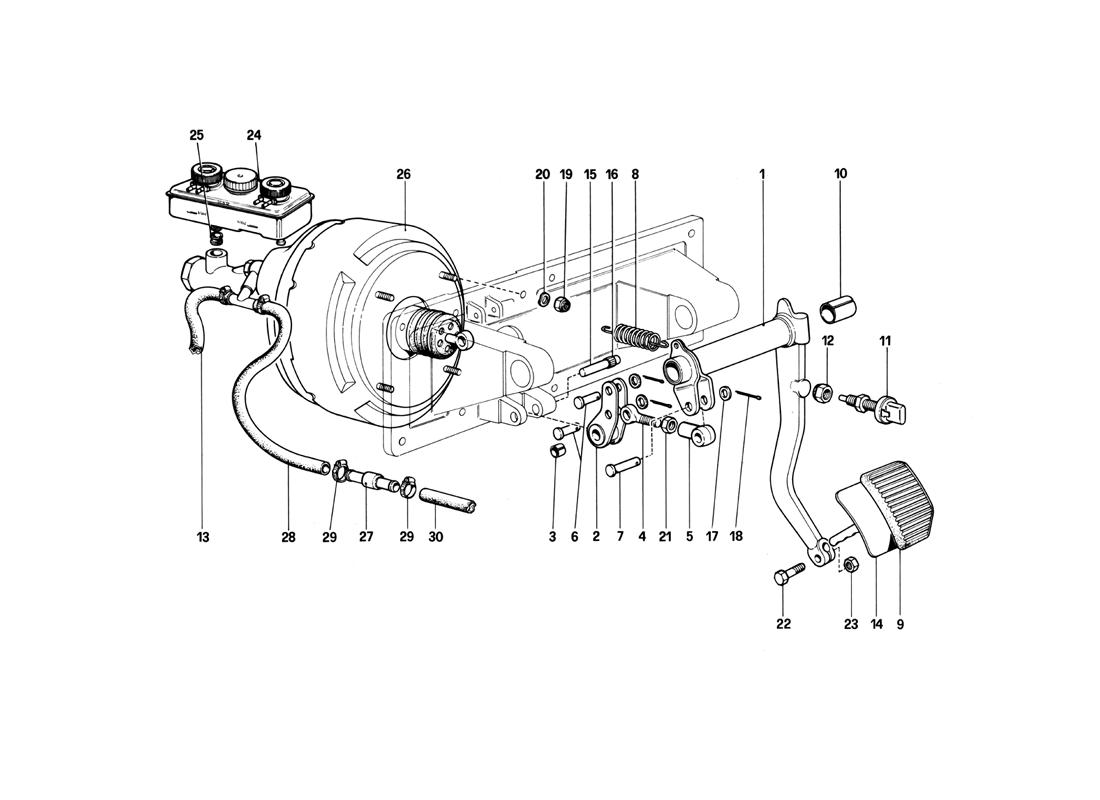

BRAKES HYDRAULIC CONTROLL (400 GT - FOR LHD)

Go to Split View

BRAKES HYDRAULIC CONTROLL (400 GT - FOR LHD)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 100949 *Qty: 1 Leva freno $489.65
Location: 2 Prev | Next Part: 100951 *Qty: 1 Leva rinvio servofreno Unavailable
Location: 3 Prev | Next Part: 100958 *Qty: 2 Boccola per leva rinvio $10.77
Location: 4 Prev | Next Part: 100959 *Qty: 1 Tirante per registro $122.46
Location: 5 Prev | Next Part: 100960 *Qty: 1 Registro per leva freno $138.35
Location: 6 Prev | Next Part: 100961 *Qty: 2 Perno Unavailable
Location: 7 Prev | Next Part: 100963 *Qty: 1 Perno $43.00
Location: 8 Prev | Next Part: 101305 *Qty: 1 Molla richiamo pedale $5.25
Location: 9 Prev | Next Part: 100976 *Qty: 1 Gommino protezione pedale $25.16
Location: 10 Prev | Next Part: 100787 *Qty: 2 Boccola $6.92
Location: 11 Prev | Next Part: 101663 *Qty: 1 Interruttore per luci stop $55.72
Location: 12 Prev | Next Part: 101662 *Qty: 1 Dado gommato $3.76
Location: 13 Prev | Next Part: 110751 *Qty: 1 Tubo collegamento depressore al servofreno Unavailable
Location: 14 Prev | Next Part: 113526 *Qty: 1 Assieme pedale freno $41.36
Location: 15 Prev | Next Part: 100957 *Qty: 1 Perno per leva rinvio $41.17
Location: 16 Prev | Next Part: 100962 *Qty: 1 Anello difermo $9.13
Location: 17 Prev | Next Part: 100964 *Qty: 3 Rondella Unavailable
Location: 18 Prev | Next Part: 10734301 *Qty: 3 Copiglia $0.90
Location: 19 Prev | Next Part: 16104421 *Qty: 4 Dado Superseded
Location: 20 Prev | Next Part: 12601371 *Qty: 4 Rondella Superseded
Location: 21 Prev | Next Part: 100965 *Qty: 1 Controdado $1.19
Location: 22 Prev | Next Part: 101308 *Qty: 1 Bullone $11.23
Location: 23 Prev | Next Part: 101309 *Qty: 1 Dado Unavailable
Location: 24 Prev | Next Part: 108802 *Qty: 1 Vaschetta per liquido freni Unavailable
Location: 25 Prev | Next Part: 106625 *Qty: 2 Anello di tenuta Superseded
Location: 26 Prev | Next Part: 101536 *Qty: 1 Servofreno Unavailable
Location: 27 Prev | Next Part: 101538 *Qty: 1 Valvola di non ritorno Superseded
Location: 28 Prev | Next Part: 110746 *Qty: 1 Tubo collegamento valvola di non ritorno al servofreno $30.83
Location: 29 Prev | Next Part: 12179590 *Qty: 4 Fascetta Superseded
Location: 30 Prev | Next Part: 110747 *Qty: 1 Tubo collegamento valvola non ritorno al collettore aspirazione $44.66

* Quantity shown indicates the number of pieces used in the diagram.
