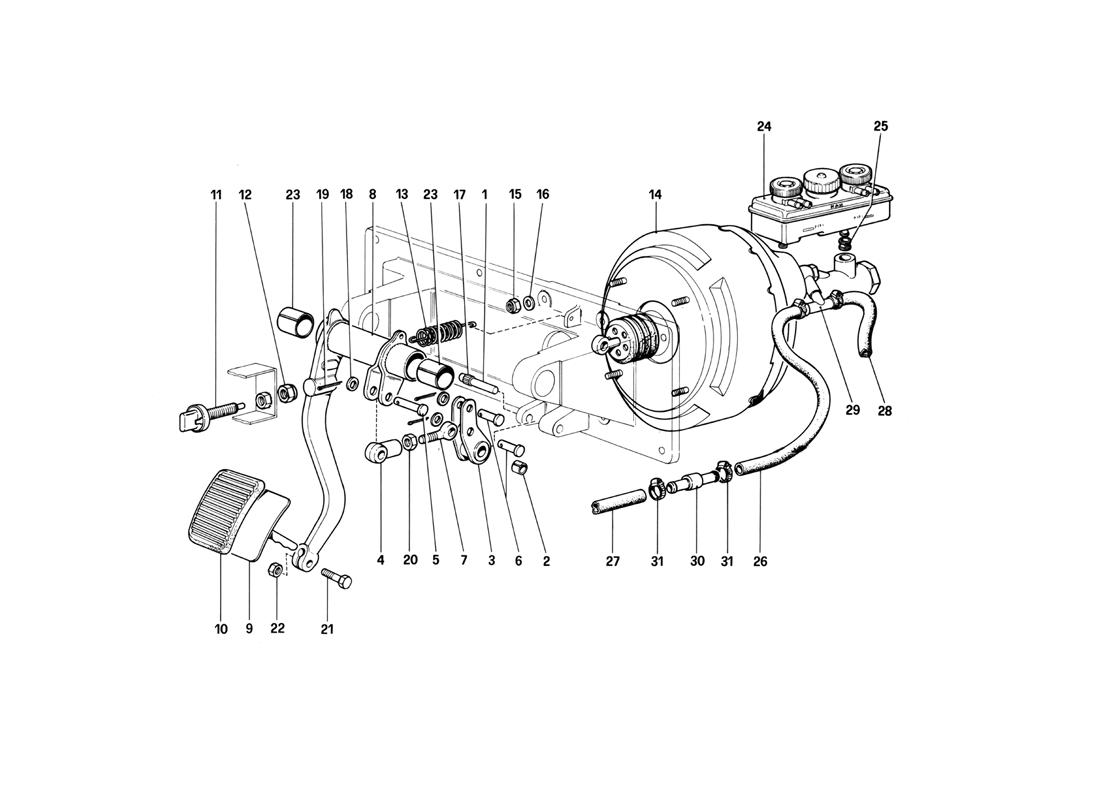

BRAKES HYDRAULIC CONTROLL (400 GT - FOR RHD)

Go to Split View

BRAKES HYDRAULIC CONTROLL (400 GT - FOR RHD)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 100957 *Qty: 1 Perno $43.22
Location: 2 Prev | Next Part: 100958 *Qty: 2 Boccola $11.30
Location: 3 Prev | Next Part: 100951 *Qty: 1 Leva rinvio servofreno Unavailable
Location: 4 Prev | Next Part: 100960 *Qty: 1 Registro per leva freno $145.27
Location: 5 Prev | Next Part: 100963 *Qty: 1 Perno per registro $45.16
Location: 6 Prev | Next Part: 100961 *Qty: 2 Perno Unavailable
Location: 7 Prev | Next Part: 100959 *Qty: 1 Registro leva di rinvio $128.58
Location: 8 Prev | Next Part: 102388 *Qty: 1 Assieme love e cannotto $857.66
Location: 9 Prev | Next Part: 102358 *Qty: 1 Pedale freno $127.62
Location: 10 Prev | Next Part: 102360 *Qty: 1 Copertura pedale $76.09
Location: 11 Prev | Next Part: 101663 *Qty: 1 Interruttore luci arresto $58.49
Location: 12 Prev | Next Part: 101662 *Qty: 1 Dado per interruttore $3.95
Location: 13 Prev | Next Part: 101305 *Qty: 1 Molla richiamo pedale $5.35
Location: 14 Prev | Next Part: 102385 *Qty: 1 Servofreno Superseded
Location: 15 Prev | Next Part: 16104421 *Qty: 4 Dado Superseded
Location: 16 Prev | Next Part: 12601371 *Qty: 4 Rondella Superseded
Location: 17 Prev | Next Part: 100962 *Qty: 1 Anello per perno $9.58
Location: 18 Prev | Next Part: 100964 *Qty: 3 Rondella Unavailable
Location: 19 Prev | Next Part: 10734301 *Qty: 3 Copiglia Unavailable
Location: 20 Prev | Next Part: 100965 *Qty: 1 Dado $1.24
Location: 21 Prev | Next Part: 101308 *Qty: 1 Bullone $11.80
Location: 22 Prev | Next Part: 101309 *Qty: 1 Dado Unavailable
Location: 23 Prev | Next Part: 102368 *Qty: 2 Boccola $26.28
Location: 24 Prev | Next Part: 108802 *Qty: 1 Vaschetta per liquido freni Unavailable
Location: 25 Prev | Next Part: 106625 *Qty: 2 Anello ditenuta Superseded
Location: 26 Prev | Next Part: 110746 *Qty: 1 Tubo dalla valvola al servofreno $32.37
Location: 27 Prev | Next Part: 110748 *Qty: 1 Tubo dalla valvola al collettore aspirazione $60.86
Location: 28 Prev | Next Part: 110752 *Qty: 1 Tubo dal servofreno al depressore $106.52
Location: 29 Prev | Next Part: 103567 *Qty: 1 Raccordo a tre vie Unavailable
Location: 30 Prev | Next Part: 101538 *Qty: 1 Valvola di non ritorno Superseded
Location: 31 Prev | Next Part: 12179590 *Qty: 4 Fascetta Superseded

* Quantity shown indicates the number of pieces used in the diagram.
