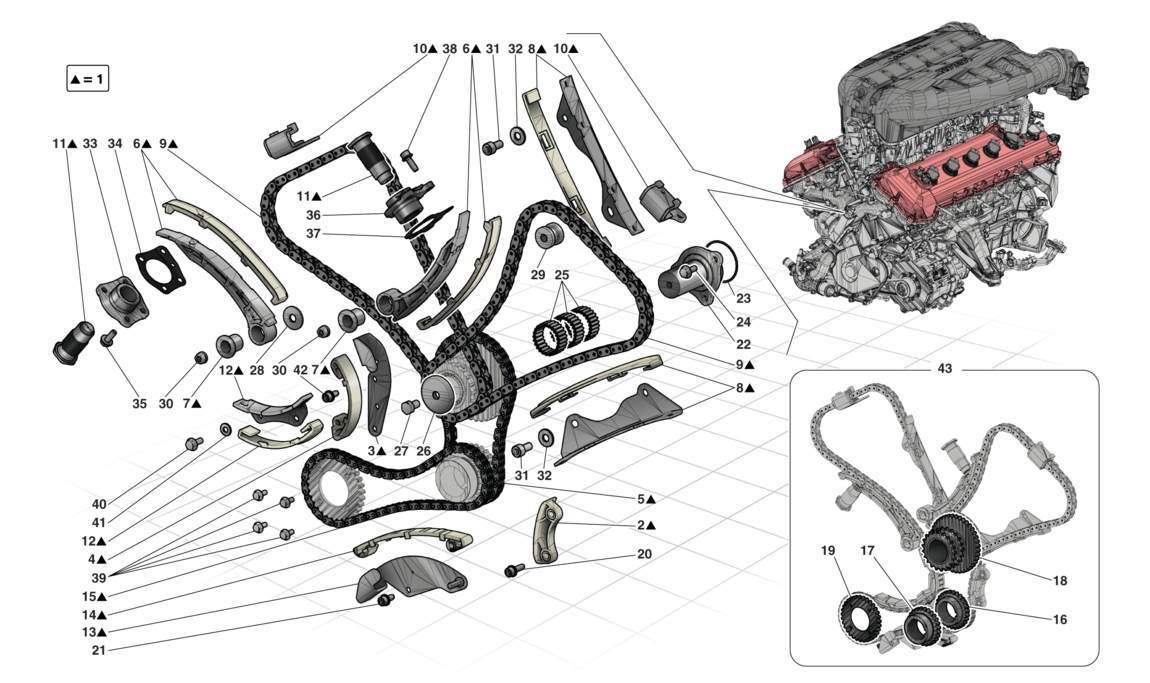

TIMING SYSTEM - DRIVE

Go to Split View

TIMING SYSTEM - DRIVE

Location Part # Quantity* Description Price Add To Cart
1 299456 1 VALVE TIMING AND PUMP DRIVE SYSTEM Unavailable
2 265178 1 FIXED SHOE Unavailable
3 265180 1 MOUNTING Unavailable
4 257626 1 SHOE Unavailable
5 295397 1 PRIMARY CHAIN Unavailable
6 260614 2 MOBILE SHOE Unavailable
7 175303 2 BUSHING $34.19
8 198034 2 FIXED SHOE $66.20
9 254263 2 CHAIN Unavailable
10 239566 2 FIXED SHOE $44.74
11 267099 2 HYDRAULIC CHAIN TENSIONER $114.07
12 277283 1 FIXED SHOE Unavailable
13 265712 1 MOUNTING Unavailable
14 272014 1 SHOE Unavailable
15 271880 1 CHAIN Unavailable
16 299590 1 INNER CRANKSHAFT GEAR Unavailable
17 301217 1 EXTERNAL CRANKSHAFT GEAR Unavailable
18 299589 1 DRIVE GEAR Unavailable
19 288731 1 PUMP DRIVE GEAR Unavailable
20 282395 2 SCREW Unavailable
21 282392 2 SCREW Unavailable
22 289896 1 MOUNTING Unavailable
23 154191 1 GASKET $1.58
24 181336 3 SCREW Unavailable
25 187742 3 ROLLER BEARING CAGE $12.38
26 194262 1 SHOULDER $36.30
27 16043124 1 SCREW $0.90
28 175306 1 SHOULDER $4.85
29 183929 1 BUSHING $9.03
30 177778 2 NUT $1.75
31 14306224 3 SCREW Unavailable
32 163759 3 WASHER $14.29
33 268314 1 BUSHING Unavailable
34 267198 1 GASKET $9.21
35 181336 4 SCREW Unavailable
36 252512 1 BUSHING Unavailable
37 250055 1 GASKET $2.86
38 231617 4 SCREW -M6 X 18- Unavailable
39 186668 4 SCREW $15.75
40 181336 2 SCREW Unavailable
41 276781 2 WASHER Unavailable
42 282392 2 SCREW Unavailable
43 301584 1 VALVE TIMING GEAR SPROCKETS -No longer supplied- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
