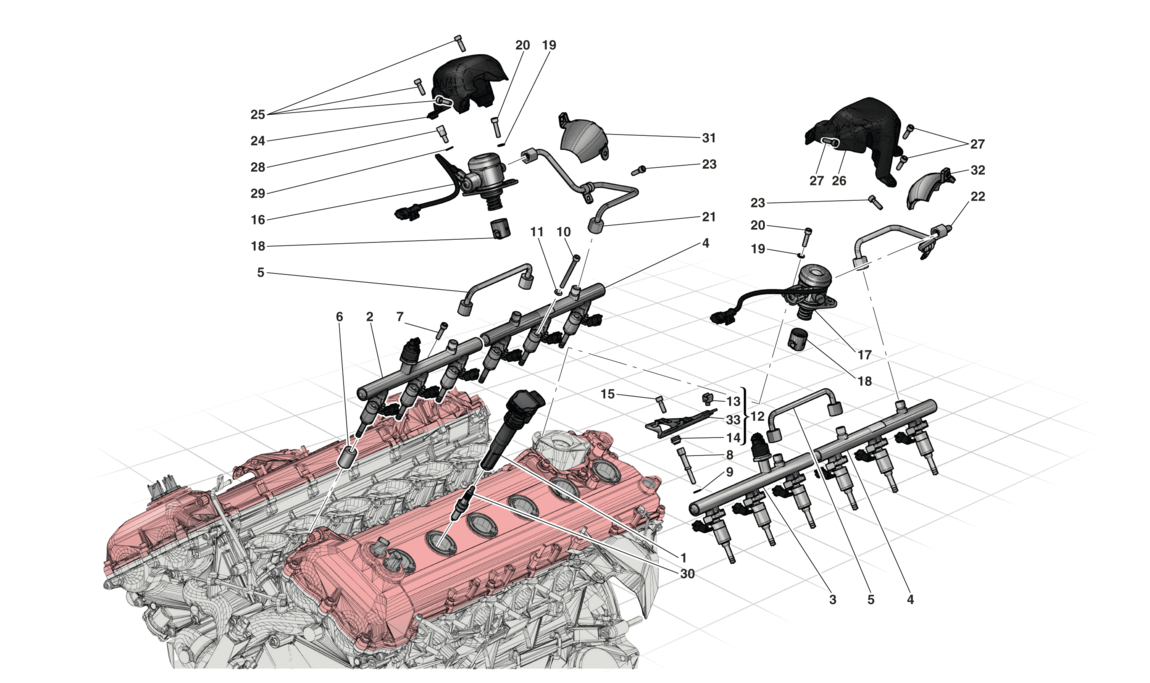

INJECTION - IGNITION SYSTEM

Go to Split View

INJECTION - IGNITION SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 290850 *Qty: 12 IGNITION COIL Superseded
Location: 2 Prev | Next Part: 268691 *Qty: 1 COMPL. FRONT RH FUEL PIPE $2,099.78
Location: 3 Prev | Next Part: 268692 *Qty: 1 COMPL. FRONT LH FUEL PIPE $2,099.78
Location: 4 Prev | Next Part: 268693 *Qty: 2 COMPL. REAR FUEL PIPE $1,626.53
Location: 5 Prev | Next Part: 247918 *Qty: 2 FUEL PIPE CONNECTING FRONT AND REAR RAILS $228.77
Location: 6 Prev | Next Part: 255724 *Qty: 12 SHIM $9.67
Location: 7 Prev | Next Part: 231620 *Qty: 10 SCREW -M6 X 25- Unavailable
Location: 8 Prev | Next Part: 260965 *Qty: 2 STUD BOLT -M6 X 23- Unavailable
Location: 9 Prev | Next Part: 11197774 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 14303824 *Qty: 12 SCREW $2.48
Location: 11 Prev | Next Part: 11197774 *Qty: 12 WASHER $0.90
Location: 12 Prev | Next Part: 284961 *Qty: 1 COMPL. BRACKET $87.22
Location: 13 Prev | Next Part: 248674 *Qty: 1 CLIP Unavailable
Location: 14 Prev | Next Part: 284909 *Qty: 2 BUSHING Unavailable
Location: 15 Prev | Next Part: 231618 *Qty: 2 SCREW -M6 X 20- Unavailable
Location: 16 Prev | Next Part: 259334 *Qty: 1 RH FUEL PUMP $749.31
Location: 17 Prev | Next Part: 259335 *Qty: 1 LH FUEL PUMP $749.31
Location: 18 Prev | Next Part: 270601 *Qty: 2 CUP $60.96
Location: 19 Prev | Next Part: 12639724 *Qty: 4 WASHER Unavailable
Location: 20 Prev | Next Part: 14305434 *Qty: 4 SCREW Unavailable
Location: 21 Prev | Next Part: 254515 *Qty: 1 RH FUEL PIPE $259.65
Location: 22 Prev | Next Part: 254516 *Qty: 1 LH FUEL PIPE $259.65
Location: 23 Prev | Next Part: 231618 *Qty: 2 SCREW -M6 X 20- Unavailable
Location: 24 Prev | Next Part: 301848 *Qty: 1 RH PUMP SOUNDPROOFING COVER $186.91
Location: 25 Prev | Next Part: 231618 *Qty: 3 SCREW -M6 X 20- Unavailable
Location: 26 Prev | Next Part: 301849 *Qty: 1 LH PUMP SOUNDPROOFING COVER $186.91
Location: 27 Prev | Next Part: 231618 *Qty: 3 SCREW -M6 X 20- Unavailable
Location: 28 Prev | Next Part: 287940 *Qty: 1 STUD BOLT $7.83
Location: 29 Prev | Next Part: 11197774 *Qty: 1 WASHER $0.90
Location: 30 Prev | Next Part: 254771 *Qty: 12 SPARK PLUG $68.19
Location: 31 Prev | Next Part: 85897200 *Qty: 1 RH PUMP COVER $1,542.60
Location: 32 Prev | Next Part: 85897300 *Qty: 1 LH PUMP COVER $1,542.60
Location: 33 Prev | Next Part: 284638 *Qty: 1 BRACKET -After depletion, order compl.- -Applicable until depletion- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
