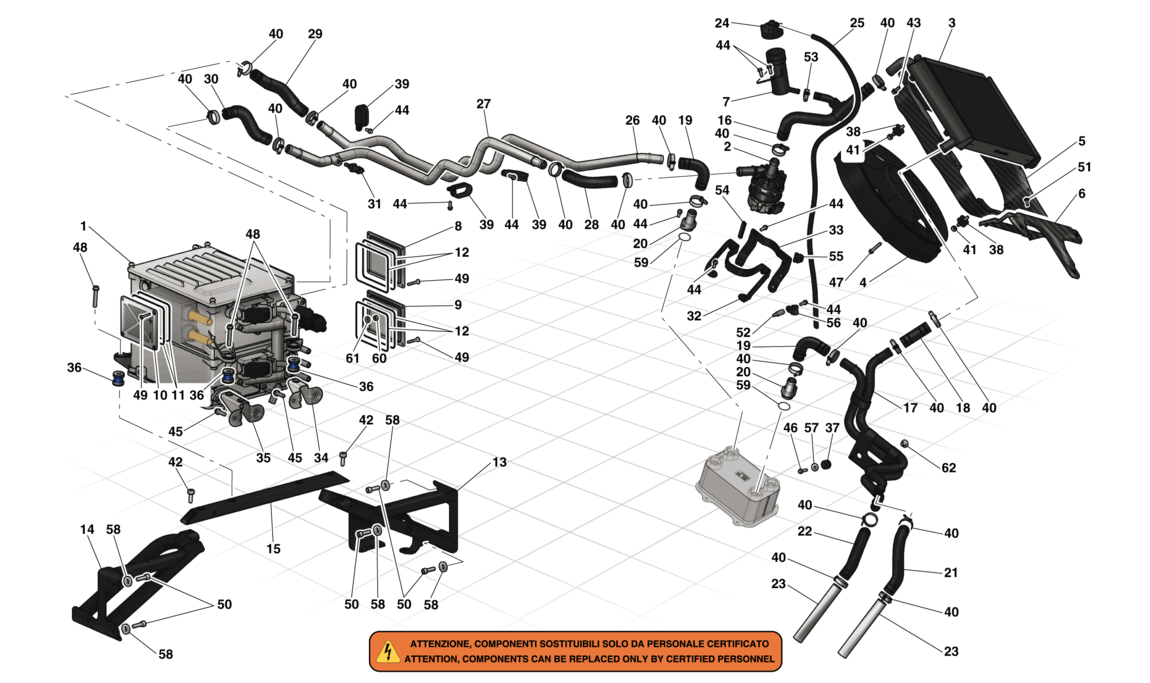

INVERTER AND COOLING

Go to Split View

INVERTER AND COOLING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 289998 *Qty: 1 COMPL. INVERTER $29,459.63
Location: 2 Prev | Next Part: 280026 *Qty: 1 WATER PUMP $1,659.13
Location: 3 Prev | Next Part: 294655 *Qty: 1 WATER RADIATOR $2,510.86
Location: 4 Prev | Next Part: 267031 *Qty: 1 BRUSHLESS MOTOR FAN $859.80
Location: 5 Prev | Next Part: 294656 *Qty: 1 INVERTER RADIATOR FAN COWL $5,607.88
Location: 6 Prev | Next Part: 302951 *Qty: 1 COWL SHIELD MOUNT $4,485.92
Location: 7 Prev | Next Part: 299084 *Qty: 1 INVERTER EXPANSION TANK BODY $184.42
Location: 8 Prev | Next Part: 305435 *Qty: 1 COVER FOR THREE POLE BOX, ME1 INVERTER SIDE $685.21
Location: 9 Prev | Next Part: 305437 *Qty: 1 COVER FOR THREE POLE BOX, ME2 INVERTER SIDE $685.21
Location: 10 Prev | Next Part: 305439 *Qty: 1 TWO POLE BOX COVER $660.30
Location: 11 Prev | Next Part: 303949 *Qty: 2 TWO POLE BOX SEAL $52.52
Location: 12 Prev | Next Part: 303950 *Qty: 4 THREE POLE BOX SEAL $47.49
Location: 13 Prev | Next Part: 301724 *Qty: 1 LH REAR INVERTER MOUNT $427.41
Location: 14 Prev | Next Part: 299349 *Qty: 1 RH REAR INVERTER MOUNT $367.60
Location: 15 Prev | Next Part: 299348 *Qty: 1 CENTRAL REAR INVERTER MOUNT $42.36
Location: 16 Prev | Next Part: 299083 *Qty: 1 3-WAY RUBBER PIPE FOR INVERTER COOLING SYSTEM $530.73
Location: 17 Prev | Next Part: 304295 *Qty: 1 ME2 COOLING WATER PIPE $348.84
Location: 18 Prev | Next Part: 291465 *Qty: 1 RUBBER PIPE $151.84
Location: 19 Prev | Next Part: 291494 *Qty: 2 RUBBER PIPE $200.37
Location: 20 Prev | Next Part: 288506 *Qty: 2 FLANGED HEAT EXCHANGER-INVERTER HOSE CONNECTOR $373.76
Location: 21 Prev | Next Part: 304298 *Qty: 1 CONNECTOR PIPE $164.46
Location: 22 Prev | Next Part: 304297 *Qty: 1 CONNECTOR PIPE $154.48
Location: 23 Prev | Next Part: 295992 *Qty: 2 REFLECT SLEEVE $21.17
Location: 24 Prev | Next Part: 145030 *Qty: 1 TANK CAP $49.75
Location: 25 Prev | Next Part: 304107 *Qty: 1 RUBBER PIPE $19.07
Location: 26 Prev | Next Part: 299088 *Qty: 1 PIPE FROM INVERTER TO HEAT EXCHANGER $215.53
Location: 27 Prev | Next Part: 299087 *Qty: 1 PIPE FROM PUMP TO INVERTER $277.87
Location: 28 Prev | Next Part: 299097 *Qty: 1 INVERTER PUMP OUTLET RUBBER PIPE $150.76
Location: 29 Prev | Next Part: 302580 *Qty: 1 INVERTER OUTLET RUBBER PIPE $168.22
Location: 30 Prev | Next Part: 302581 *Qty: 1 INVERTER INLET RUBBER PIPE $180.68
Location: 31 Prev | Next Part: 180137 *Qty: 1 WATER/OIL TEMPERATURE SENSOR $26.68
Location: 32 Prev | Next Part: 299082 *Qty: 1 COOLING PUMP MOUNTING BRACKET RETAINER $53.58
Location: 33 Prev | Next Part: 299081 *Qty: 1 COOLING PUMP MOUNTING BRACKET $34.89
Location: 34 Prev | Next Part: 294993 *Qty: 1 FRONT LH INVERTER MOUNTING BRACKET $37.37
Location: 35 Prev | Next Part: 294994 *Qty: 1 FRONT RH INVERTER MOUNTING BRACKET $37.37
Location: 36 Prev | Next Part: 267300 *Qty: 4 DAMPED MOUNT $10.84
Location: 37 Prev | Next Part: 103549 *Qty: 2 GROMMET $1.37
Location: 38 Prev | Next Part: 286306 *Qty: 4 PLUG $16.70
Location: 39 Prev | Next Part: 307026 *Qty: 3 BRACKET WITH SHEATH $46.09
Location: 40 Prev | Next Part: 262111 *Qty: 18 SCREW COLLAR $1.78
Location: 41 Prev | Next Part: 132877 *Qty: 4 NUT Superseded
Location: 42 Prev | Next Part: 216565 *Qty: 2 SCREW -M X 20- Unavailable
Location: 43 Prev | Next Part: 248334 *Qty: 6 SCREW Superseded
Location: 44 Prev | Next Part: 302574 *Qty: 13 ERGAL SCREW -M6 X 15- $6.68
Location: 45 Prev | Next Part: 302655 *Qty: 4 ERGAL SCREW -M6 X 20- $13.08
Location: 46 Prev | Next Part: 302656 *Qty: 2 ERGAL SCREW -M6 X 25- $12.35
Location: 47 Prev | Next Part: 302657 *Qty: 4 ERGAL SCREW -M6 X 30- $10.78
Location: 48 Prev | Next Part: 302658 *Qty: 4 ERGAL SCREW -M6 X 35- $16.03
Location: 49 Prev | Next Part: 303947 *Qty: 12 SCREW $17.32
Location: 50 Prev | Next Part: 304701 *Qty: 6 SCREW $6.87
Location: 51 Prev | Next Part: 81917100 *Qty: 4 SCREW -No longer supplied- -Replaced by 85494300- Unavailable
Location: 51 Prev | Next Part: 85494300 *Qty: 4 SCREW -M5 X 12- $1.40
Location: 52 Prev | Next Part: 212519 *Qty: 1 STUD BOLT $6.97
Location: 53 Prev | Next Part: 262107 *Qty: 1 SCREW COLLAR $1.93
Location: 54 Prev | Next Part: 67681200 *Qty: 1 GASKET $3.52
Location: 55 Prev | Next Part: 67063200 *Qty: 1 CLIP $1.34
Location: 56 Prev | Next Part: 302394 *Qty: 1 BRACKET WITH SHEATH $42.36
Location: 57 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 58 Prev | Next Part: 12646624 *Qty: 6 WASHER Unavailable
Location: 59 Prev | Next Part: 122791 *Qty: 2 GASKET $2.25
Location: 60 Prev | Next Part: 303946 *Qty: 8 NUT $26.16
Location: 61 Prev | Next Part: 303948 *Qty: 8 WASHER $13.46
Location: 62 Prev | Next Part: 149707 *Qty: 2 SHIM $1.23

* Quantity shown indicates the number of pieces used in the diagram.
