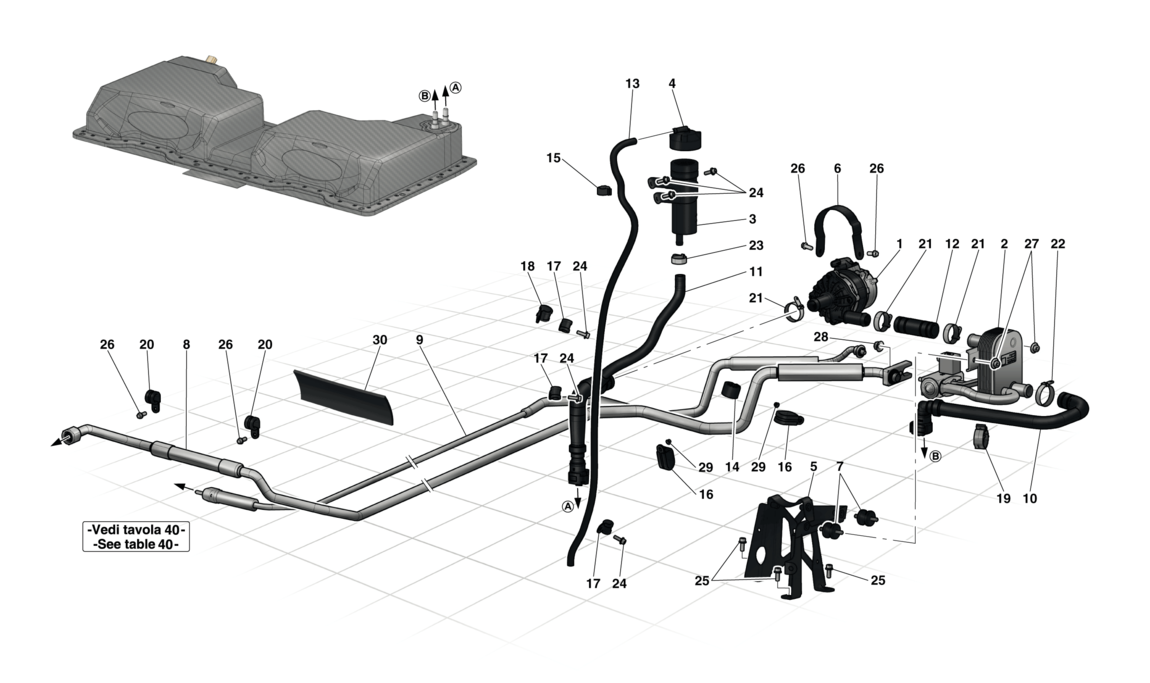

BATTERY COOLING SYSTEM

Go to Split View

BATTERY COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 280026 1 WATER PUMP $1,726.15
2 292452 1 ELECTRIC CHILLER-TXV $5,877.11
3 291749 1 BATTERY COOLING SYSTEM EXPANSION TANK BODY $191.88
4 145030 1 TANK CAP $54.36
5 300870 1 CHILLER-HVB COOLING PUMP BRACKET $142.59
6 292105 1 HV BATTERY PUMP MOUNTING BRACKET STRAP $34.35
7 142202 2 VIBRATION DAMPER $31.30
8 304319 1 GAS RETURN PIPE FROM CHILLER $1,174.09
9 304905 1 GAS DELIVERY PIPE FROM TXV-CHILLER, COMPLETE WITH FILTER $1,040.98
10 294647 1 PIPE FROM CHILLER TO BATTERY $416.15
11 294649 1 PIPE FROM BATTERY TO PUMP $646.60
11 290940 1 QUICK CONNECTOR Unavailable
12 291465 1 RUBBER PIPE $157.99
13 291716 1 RUBBER PIPE $18.80
14 254315 1 RUBBER PAD Unavailable
15 67063200 1 CLIP $1.40
16 302430 2 BRACKET WITH SHEATH $47.34
17 302394 3 BRACKET WITH SHEATH $44.07
18 302439 1 BRACKET WITH SHEATH $45.39
19 270085 1 CLIP $2.18
20 303265 2 BRACKET WITH SHEATH $45.39
21 262111 3 SCREW COLLAR $1.93
22 262112 1 COLLAR $13.42
23 262108 1 SCREW COLLAR $2.21
24 256323 6 SCREW Unavailable
25 248334 3 SCREW $0.90
26 302574 4 ERGAL SCREW -M6 X 15- $6.96
27 14039614 2 NUT Unavailable
28 14040711 1 NUT Unavailable
29 160472 2 NUT $2.86
30 249582 1 PLUG $4.93

* Quantity shown indicates the number of pieces used in the diagram.
