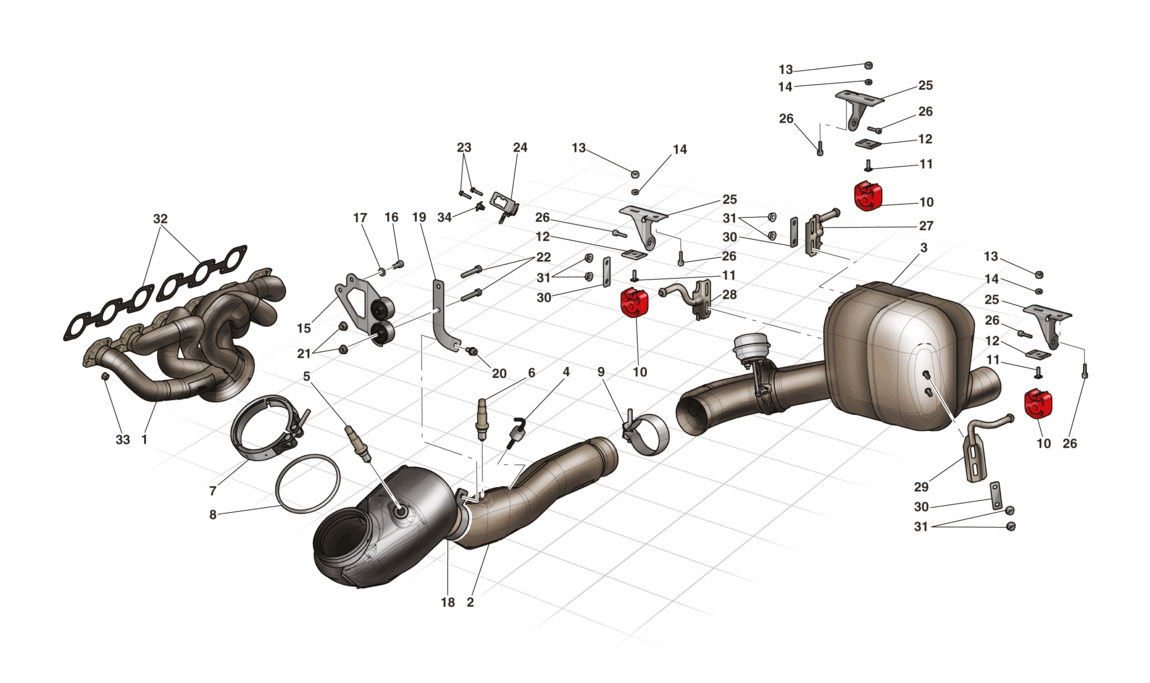

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 293541 1 LH EXHAUST MANIFOLD $12,721.87
1 293540 1 RH EXHAUST MANIFOLD $12,721.87
2 303156 1 LH CATALYTIC CONVERTER. $17,132.16
2 303154 1 RH CATALYTIC CONVERTER $16,316.35
3 306024 1 REAR LH SILENCER -Not for J- Unavailable
3 312957 1 REAR LH SILENCER -Applicable for J- Unavailable
3 306022 1 REAR RH SILENCER -Not for J- Unavailable
3 312956 1 REAR RH SILENCER -Applicable for J- Unavailable
4 200934 2 EXHAUST GAS TEMPERATURE SENSOR $220.99
5 292582 2 FRONT OXYGEN SENSOR $243.19
6 180915 2 REAR OXYGEN SENSOR $238.14
7 290743 2 V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD $108.91
8 275465 2 GASKET $67.52
9 270454 2 RING CLAMP $16.67
10 239798 6 FLEXIBLE SILENCER MOUNTING BUSH $75.29
11 250222 6 SQUARE HEADED SCREW $3.57
12 240598 6 PLATE $14.39
13 14059214 6 NUT Unavailable
14 12620474 6 WASHER $0.90
15 288391 1 LH BRACKET $272.22
15 288389 1 RH BRACKET $272.22
16 14302824 2 SCREW $0.90
17 11193874 2 WASHER $0.90
18 279015 2 RING CLAMP $19.22
19 294868 1 BRACKET $32.40
19 294867 1 BRACKET $32.40
20 231627 2 SCREW -M8 X 16- Unavailable
21 14059311 4 NUT Unavailable
22 16044234 4 SCREW -M8 X 50- Unavailable
23 302724 4 SCREW -M5 X 20- -No longer supplied- -Replaced by 302723- Unavailable
23 302723 4 SCREW -M5 X 15- $6.13
24 302185 2 BRACKET $36.30
25 283476 6 BRACKET $81.67
26 231617 12 SCREW -M6 X 18- Unavailable
27 284543 1 CENTRAL REAR BRACKET ON LH SILENCER $64.66
27 284542 1 CENTRAL REAR BRACKET ON RH SILENCER $61.59
28 291665 1 CENTRAL FRONT BRACKET ON LH SILENCER $64.66
28 291664 1 CENTRAL FRONT BRACKET ON RH SILENCER $61.59
29 284545 1 LATERAL BRACKET ON LH SILENCER $63.99
29 284544 1 LATERAL BRACKET ON RH SILENCER $60.92
30 240597 6 PLATE $10.78
31 14059311 12 NUT Unavailable
32 212702 4 GASKET $13.52
33 210971 24 NUT $2.13
34 288378 2 CLIP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
