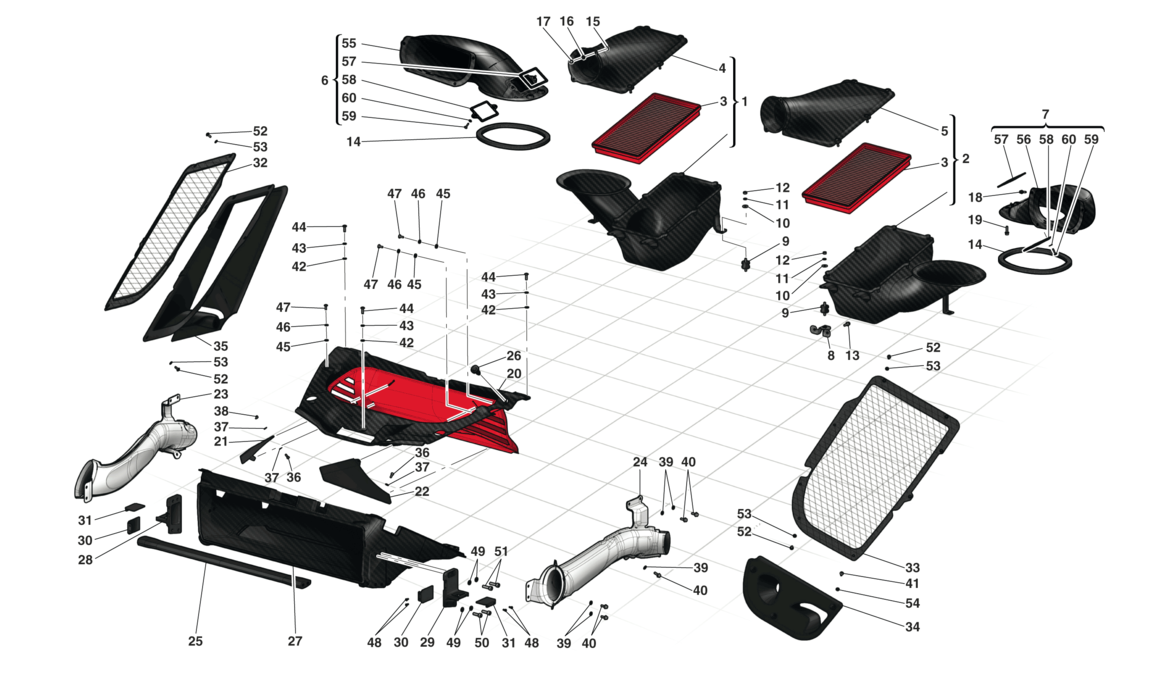

AIR INTAKES

Go to Split View

AIR INTAKES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 302627 *Qty: 1 COMPL. RH AIR FILTER BOX -Not for CINA, USA, CDN, GOLFO, J, USA LIGHT- $9,283.35
Location: 1 Prev | Next Part: 302631 *Qty: 1 COMPL. RH AIR FILTER BOX -Applicable for CINA, USA, CDN, GOLFO, J, USA LIGHT- $7,165.71
Location: 2 Prev | Next Part: 302630 *Qty: 1 COMPL. LH AIR FILTER BOX -Not for CINA, USA, CDN, GOLFO, J, USA LIGHT- $9,283.35
Location: 2 Prev | Next Part: 302632 *Qty: 1 COMPL. LH AIR FILTER BOX -Applicable for CINA, USA, CDN, GOLFO, J, USA LIGHT- $7,165.71
Location: 3 Prev | Next Part: 285041 *Qty: 2 AIR FILTER -Not for CINA, USA, CDN, GOLFO, J, USA LIGHT- $226.53
Location: 3 Prev | Next Part: 302595 *Qty: 2 AIR FILTER -Applicable for CINA, USA, CDN, GOLFO, J, USA LIGHT- Unavailable
Location: 4 Prev | Next Part: 302626 *Qty: 1 RH FILTER BOX COVER $3,738.26
Location: 5 Prev | Next Part: 302629 *Qty: 1 LH FILTER BOX COVER $3,738.26
Location: 6 Prev | Next Part: 303952 *Qty: 1 RH INLET DUCT -No longer supplied- Unavailable
Location: 7 Prev | Next Part: 303951 *Qty: 1 LH INLET DUCT -No longer supplied- Unavailable
Location: 8 Prev | Next Part: 250755 *Qty: 4 BRACKET $13.68
Location: 9 Prev | Next Part: 285553 *Qty: 6 VIBRATION DAMPER $18.69
Location: 10 Prev | Next Part: 12643724 *Qty: 6 WASHER Superseded
Location: 11 Prev | Next Part: 127494 *Qty: 6 WASHER $0.90
Location: 12 Prev | Next Part: 15896214 *Qty: 6 NUT $0.90
Location: 13 Prev | Next Part: 231617 *Qty: 8 SCREW -M6 X 18- $0.90
Location: 14 Prev | Next Part: 298773 *Qty: 2 ADHESIVE FOAM $28.66
Location: 15 Prev | Next Part: 169814 *Qty: 4 SCREW $1.54
Location: 16 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 17 Prev | Next Part: 168698 *Qty: 4 NUT $1.98
Location: 18 Prev | Next Part: 11566524 *Qty: 8 SCREW $0.90
Location: 19 Prev | Next Part: 231619 *Qty: 4 SCREW -M6 X 22- $0.90
Location: 20 Prev | Next Part: 85861910 *Qty: 1 AIR DUCT -Not for J- $10,074.30
Location: 20 Prev | Next Part: 86499510 *Qty: 1 AIR DUCT -Applicable for J- $10,074.30
Location: 21 Prev | Next Part: 85902400 *Qty: 1 RH AIR DUCT PARTITION -Not for J- $3,738.26
Location: 21 Prev | Next Part: 86559900 *Qty: 1 RH AIR DUCT PARTITION -Applicable for J- $3,738.26
Location: 22 Prev | Next Part: 85902500 *Qty: 1 LH AIR DUCT PARTITION -Not for J- $3,738.26
Location: 22 Prev | Next Part: 86560000 *Qty: 1 LH AIR DUCT PARTITION -Applicable for J- $3,738.26
Location: 23 Prev | Next Part: 85736200 *Qty: 1 RH DUCT FOR COOLING FRONT BRAKES $520.86
Location: 24 Prev | Next Part: 85736300 *Qty: 1 LH DUCT FOR COOLING FRONT BRAKES $520.86
Location: 25 Prev | Next Part: 86039700 *Qty: 1 CENTRAL DUCT CROSS PIECE $6,441.15
Location: 26 Prev | Next Part: 83172800 *Qty: 1 BOWDEN CABLE GROMMET Unavailable
Location: 27 Prev | Next Part: 86039600 *Qty: 1 CENTRAL DUCT $35,200.37
Location: 28 Prev | Next Part: 86020900 *Qty: 1 RH AIR DUCT FASTENER CALIPER COVER $500.88
Location: 29 Prev | Next Part: 86021000 *Qty: 1 LH AIR DUCT FASTENER CALIPER COVER $500.88
Location: 30 Prev | Next Part: 86021100 *Qty: 2 UPPER PAD FOR AIR DUCT CALIPER COVER $24.92
Location: 31 Prev | Next Part: 86021200 *Qty: 2 LOWER PAD FOR AIR DUCT CALIPER COVER $24.92
Location: 32 Prev | Next Part: 85633700 *Qty: 1 COMPL. RH REAR FLANK MESH -No longer supplied- -Replaced by 86065900- Unavailable
Location: 32 Prev | Next Part: 86065900 *Qty: 1 COMPL. RH REAR FLANK MESH $301.74
Location: 33 Prev | Next Part: 85633800 *Qty: 1 COMPL. LH REAR FLANK MESH -No longer supplied- -Replaced by 86066000- Unavailable
Location: 33 Prev | Next Part: 86066000 *Qty: 1 COMPL. LH REAR FLANK MESH $301.74
Location: 34 Prev | Next Part: 85932900 *Qty: 1 LH REAR BRAKE COOLING PIPE COWL MOULDING $2,712.49
Location: 35 Prev | Next Part: 85586700 *Qty: 1 COMPL. ADAPTER FOR DUCT ON REAR FLANK -No longer supplied- -Replaced by 86066100- Unavailable
Location: 35 Prev | Next Part: 86066100 *Qty: 1 COMPL. ADAPTER FOR DUCT ON REAR FLANK $4,883.17
Location: 36 Prev | Next Part: 14304121 *Qty: 4 SCREW -M5 X 12- $0.90
Location: 37 Prev | Next Part: 12637824 *Qty: 6 WASHER $0.90
Location: 38 Prev | Next Part: 14042177 *Qty: 2 NUT $1.14
Location: 39 Prev | Next Part: 13550201 *Qty: 10 WASHER Superseded
Location: 40 Prev | Next Part: 81923100 *Qty: 10 SCREW Unavailable
Location: 41 Prev | Next Part: 85077900 *Qty: 3 SCREW $0.90
Location: 42 Prev | Next Part: 13550225 *Qty: 6 WASHER -No longer supplied- -Replaced by 65545900- $0.90
Location: 42 Prev | Next Part: 65545900 *Qty: 6 WASHER $3.53
Location: 43 Prev | Next Part: 85882500 *Qty: 6 WASHER $0.90
Location: 44 Prev | Next Part: 85629300 *Qty: 6 SCREW -M6 X 20- $0.90
Location: 45 Prev | Next Part: 13550225 *Qty: 4 WASHER -No longer supplied- -Replaced by 65545900- $0.90
Location: 45 Prev | Next Part: 65545900 *Qty: 4 WASHER $3.53
Location: 46 Prev | Next Part: 85882500 *Qty: 4 WASHER $0.90
Location: 47 Prev | Next Part: 85077900 *Qty: 4 SCREW $0.90
Location: 48 Prev | Next Part: 84056000 *Qty: 8 SCREW -No longer supplied- -Replaced by 83750200- Unavailable
Location: 48 Prev | Next Part: 83750200 *Qty: 8 SCREW $1.17
Location: 49 Prev | Next Part: 12638524 *Qty: 8 WASHER $0.90
Location: 50 Prev | Next Part: 14306474 *Qty: 4 SCREW $0.90
Location: 51 Prev | Next Part: 14306824 *Qty: 4 SCREW -No longer supplied- -Replaced by 14306874- $0.90
Location: 51 Prev | Next Part: 14306874 *Qty: 4 SCREW -No longer supplied- -Replaced by 14306824- Unavailable
Location: 51 Prev | Next Part: 14306824 *Qty: 4 SCREW $0.90
Location: 52 Prev | Next Part: 81917100 *Qty: 15 SCREW -No longer supplied- -Replaced by 169814- Unavailable
Location: 52 Prev | Next Part: 169814 *Qty: 15 SCREW $1.54
Location: 53 Prev | Next Part: 12637824 *Qty: 15 WASHER -No longer supplied- $0.90
Location: 54 Prev | Next Part: 85739500 *Qty: 3 WASHER $3.87
Location: 55 Prev | Next Part: 302245 *Qty: 1 RH INLET DUCT $3,536.33
Location: 56 Prev | Next Part: 302246 *Qty: 1 LH INLET DUCT $3,536.33
Location: 57 Prev | Next Part: 302240 *Qty: 2 GASKET $11.82
Location: 58 Prev | Next Part: 302238 *Qty: 2 SURROUND $36.32
Location: 59 Prev | Next Part: 65752800 *Qty: 4 SCREW $2.44
Location: 60 Prev | Next Part: 304435 *Qty: 4 WASHER $5.33

* Quantity shown indicates the number of pieces used in the diagram.
