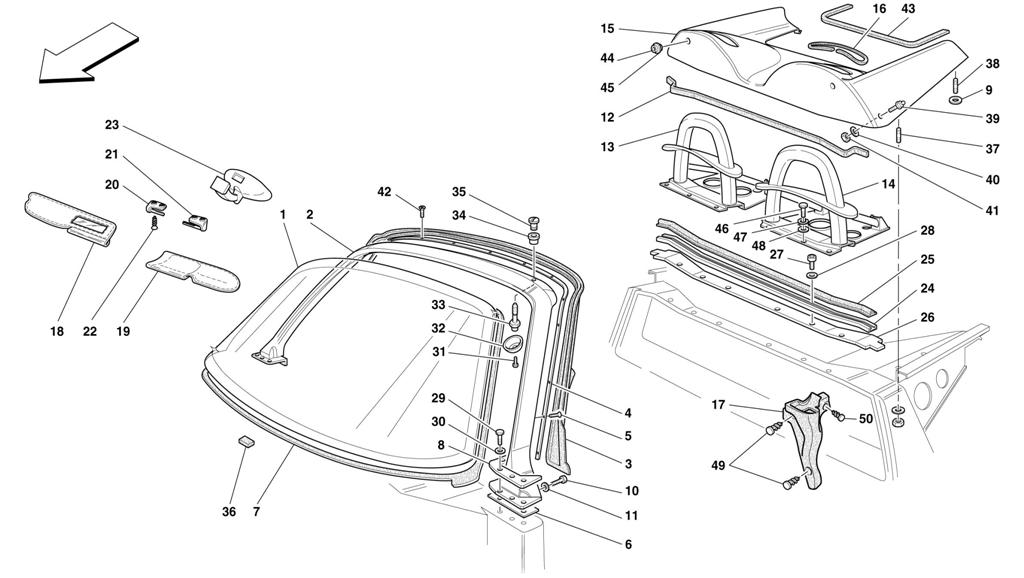

WINDSCREEN PILLAR AND SPORTING ROLL-BAR

Go to Split View

WINDSCREEN PILLAR AND SPORTING ROLL-BAR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63529700 *Qty: 1 WINDSCREEN GLASS $3,665.90
Location: 2 Prev | Next Part: 64142500 *Qty: 1 WINDSCREEN PILLAR $11,015.42
Location: 3 Prev | Next Part: 64481000 *Qty: 1 GASKET $1,175.61
Location: 4 Prev | Next Part: 64196300 *Qty: 1 PLATE $775.41
Location: 5 Prev | Next Part: 15688075 *Qty: 9 SCREW $0.90
Location: 6 Prev | Next Part: 64143000 *Qty: 4 ADJUSTING PLATE $81.34
Location: 7 Prev | Next Part: 64199200 *Qty: 1 GASKET $2,418.90
Location: 8 Prev | Next Part: 64695800 *Qty: 1 R.H. PLATE $64.09
Location: 8 Prev | Next Part: 64695900 *Qty: 1 L.H. PLATE $64.09
Location: 9 Prev | Next Part: 65081900 *Qty: 2 WASHER $6.24
Location: 10 Prev | Next Part: 16043674 *Qty: 4 SCREW -Not as spare part now -Replaced by 16043834 Call
Location: 10 Prev | Next Part: 16043834 *Qty: 4 SCREW $0.90
Location: 10 Prev | Next Part: 16043974 *Qty: 8 SCREW $0.90
Location: 11 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 12601374 *Qty: 4 WASHER -Not as spare part now -Replaced by 127496 $0.90
Location: 12 Prev | Next Part: 64986200 *Qty: 1 GASKET $10.53
Location: 13 Prev | Next Part: 64631000 *Qty: 1 R.H. COMPLETE ROLL-BAR Call
Location: 14 Prev | Next Part: 64631100 *Qty: 1 L.H. COMPLETE ROLL-BAR Call
Location: 15 Prev | Next Part: 63532310 *Qty: 1 REAR COVER $7,324.75
Location: 16 Prev | Next Part: 64879300 *Qty: 2 GASKET $7.36
Location: 17 Prev | Next Part: 64721300 *Qty: 1 R.H. GASKET $38.03
Location: 17 Prev | Next Part: 64721400 *Qty: 1 L.H. GASKET $46.85
Location: 18 Prev | Next Part: 64163000 *Qty: 1 PASSENGER SUN VISOR Call
Location: 19 Prev | Next Part: 64163400 *Qty: 1 DRIVER SUN VISOR Call
Location: 20 Prev | Next Part: 61003200 *Qty: 2 R.H. BRACKET FOR SCREEN FASTENING $138.64
Location: 21 Prev | Next Part: 61003300 *Qty: 2 L.H. BRACKET FOR SCREEN FASTENING $138.64
Location: 22 Prev | Next Part: 13309017 *Qty: 8 SCREW $0.90
Location: 23 Prev | Next Part: 64675810 *Qty: 1 INNER REAR VIEW MIRROR $976.29
Location: 24 Prev | Next Part: 64172600 *Qty: 1 GASKET RETAINING STRUCTURAL SHAPE $41.23
Location: 25 Prev | Next Part: 64172800 *Qty: 1 GASKET $51.90
Location: 26 Prev | Next Part: 64975900 *Qty: 1 FRAME COVER PLATE $1,247.48
Location: 27 Prev | Next Part: 13272070 *Qty: 7 SCREW Call
Location: 28 Prev | Next Part: 10519224 *Qty: 7 WASHER $0.90
Location: 29 Prev | Next Part: 16043674 *Qty: 8 SCREW -Not as spare part now -Replaced by 16043934 Call
Location: 29 Prev | Next Part: 16043934 *Qty: 8 SCREW $0.90
Location: 30 Prev | Next Part: 127496 *Qty: 8 WASHER $0.90
Location: 31 Prev | Next Part: 13295777 *Qty: 2 SCREW $0.90
Location: 32 Prev | Next Part: 64871700 *Qty: 1 L.H. PLUG $56.72
Location: 32 Prev | Next Part: 64871600 *Qty: 1 R.H. PLUG $56.72
Location: 33 Prev | Next Part: 64877700 *Qty: 2 PIN $12.82
Location: 34 Prev | Next Part: 64871300 *Qty: 2 BUSHING $14.17
Location: 35 Prev | Next Part: 64976600 *Qty: 2 SCREW $7.99
Location: 36 Prev | Next Part: 60743800 *Qty: 7 RUBBER THICKNESS $0.99
Location: 37 Prev | Next Part: 65006800 *Qty: 2 STUD $7.23
Location: 38 Prev | Next Part: 65006900 *Qty: 2 STUD $6.46
Location: 39 Prev | Next Part: 60084407 *Qty: 3 SCREW TAP $6.88
Location: 40 Prev | Next Part: 10519301 *Qty: 3 WASHER $0.90
Location: 41 Prev | Next Part: 113647 *Qty: 3 NUT $0.90
Location: 42 Prev | Next Part: 16043974 *Qty: 8 SCREW $0.90
Location: 43 Prev | Next Part: 65052200 *Qty: 2 GASKET $10.69
Location: 44 Prev | Next Part: 65052900 *Qty: 2 BUSHING $0.99
Location: 45 Prev | Next Part: 65053000 *Qty: 2 COUTER BUSHING $1.40
Location: 46 Prev | Next Part: 64674300 *Qty: 6 SCREW $4.22
Location: 47 Prev | Next Part: 14496578 *Qty: 6 WASHER Superseded
Location: 48 Prev | Next Part: 127496 *Qty: 6 WASHER $0.90
Location: 49 Prev | Next Part: 178949 *Qty: 4 CLIP $0.90
Location: 50 Prev | Next Part: 178950 *Qty: 2 CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
