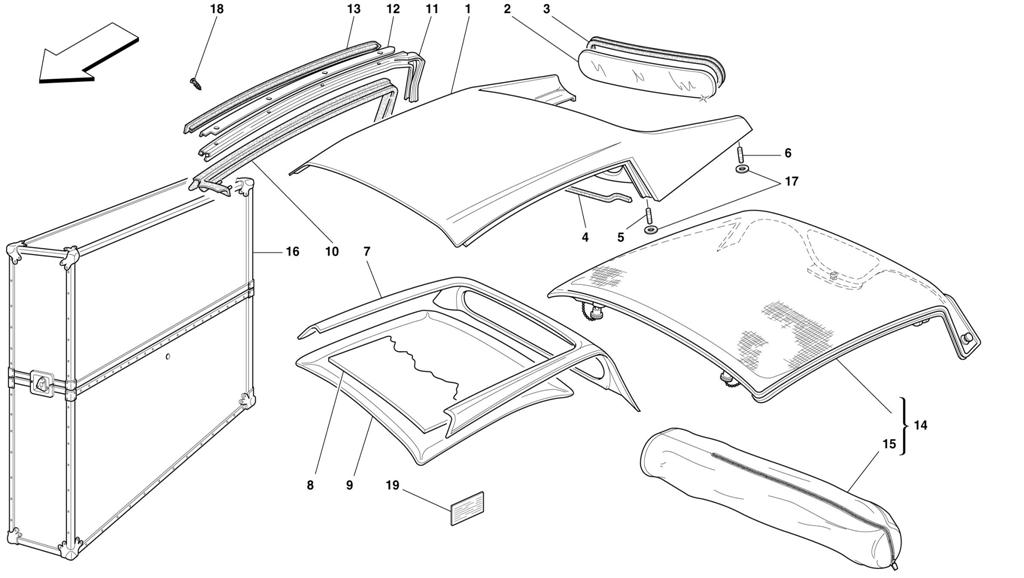

HARD-TOP

Go to Split View

HARD-TOP

Location Part # Quantity* Description Price Add To Cart
1 64199010 1 HARD-TOP $21,677.83
2 64197100 1 REAR-WINDOW GLASS Unavailable
3 64197200 1 REAR WINDOW GASKET $46.08
4 64874100 1 LOWER GASKET $8.26
5 65006800 2 STUD Unavailable
6 65006900 2 STUD $7.04
7 64986700 1 EXTERNAL PANEL $2,040.96
8 64763700 1 HARD-TOP INSULATION $232.19
9 64986800 1 CENTRAL PANEL $2,492.48
10 64720900 1 R.H. GASKET $416.96
10 64721000 1 L.H. GASKET $416.96
11 64167000 1 R.H. PLATE FOR FRONT GASKET Unavailable
11 64167100 1 L.H. PLATE FOR FRONT GASKET $1,896.81
12 64193100 1 L.H. PLATE FOR REAR GASKET $552.16
12 64193000 1 R.H. PLATE FOR REAR GASKET $552.16
13 64194600 1 R. H. MOULDING $77.93
13 64194700 1 L. H. MOULDING $77.93
14 63993900 1 CAPOTE COMPLETED OF BAG Unavailable
15 65095600 1 CAPOTE BAG $436.10
16 65020800 1 HUMPS, ROLL-BAR AND CAPOTE CONTAINER $6,229.83
17 65019800 4 SPACER -Thickness mm. 1 $6.80
17 65019900 4 SPACER -Thickness mm. 2 $6.80
18 15688875 6 SCREW $0.90
19 65291500 1 ADHESIVE PLATE FOR CAPOTE INSTRUCTIONS $5.24

* Quantity shown indicates the number of pieces used in the diagram.
