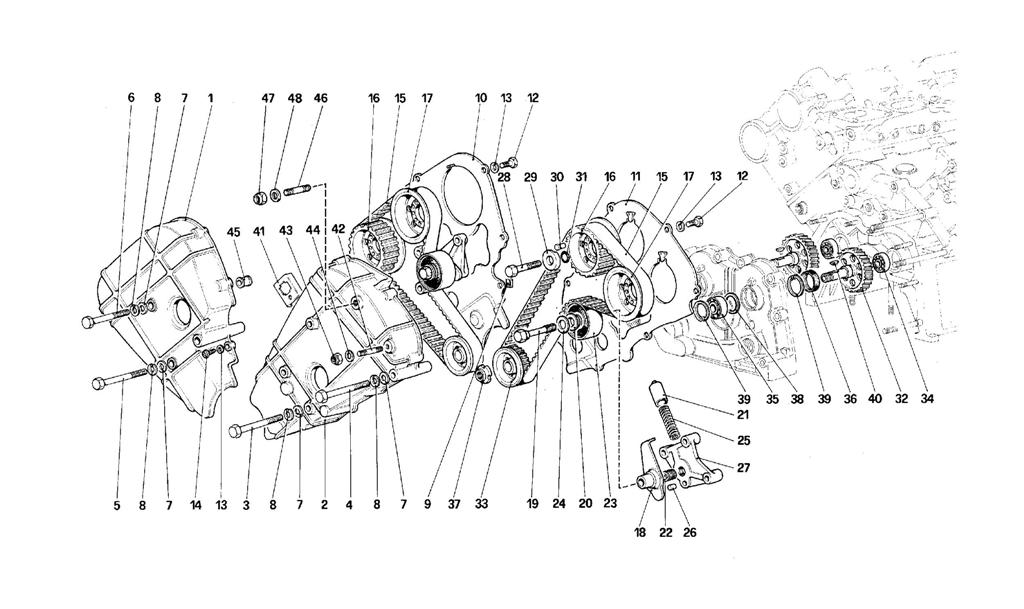

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

Location Part # Quantity* Description Price Add To Cart
- 122174 0 Left cover, complete $344.96
1 121957 1 Right cover $550.84
2 121958 1 Left cover -With assembly 122174 Unavailable
3 114818 2 Screw $78.76
4 15972021 2 Screw Unavailable
5 15972021 2 Screw Unavailable
6 109013 1 Screw Superseded
7 12638601 7 Washer $0.90
8 127497 7 Washer $0.90
9 60793500 1 Spring clip $1.26
10 117628 1 Protection right belt Unavailable
11 117627 1 Protection left belt Unavailable
12 10977724 12 Screw $0.90
13 12601174 13 Washer $0.90
14 15688502 1 Screw $1.81
15 111334 2 Timing belt $24.77
16 134097 2 Driver gear $90.21
17 134064 2 Driver gear $90.21
18 117256 2 Belt stretcher plate $508.19
19 111458 2 Screw $69.34
20 111460 2 Spacer Unavailable
21 102819 2 Pin $156.43
22 13524670 2 Heli-coil Unavailable
23 105206 2 Belt idler ring Superseded
24 102824 2 Washer $15.18
25 104148 2 Spring $31.49
26 125717 2 Dowel $3.88
27 118152 1 Support for right belt stretcher $293.29
27 118153 1 Support for left belt stretcher $249.30
28 146540 4 Screw $28.44
29 117274 4 Washer $4.06
30 106203 4 Dowel Unavailable
31 114808 4 Sealing ring $5.24
32 124921 2 Drive gear for distribut. shafts $581.35
33 124922 2 Driving pulley $408.84
34 121275 2 Bearing of crankcase $11.63
35 121274 2 Bearing on front cover $192.99
36 121276 2 Oil retaining $18.01
37 104919 2 Lock nut $6.62
38 121279 2 Washer Unavailable
39 121277 4 Seeger Unavailable
40 10206320 2 Tongue $1.81
41 124643 1 Bracket $37.88
42 13516521 1 Stud Unavailable
43 16104121 1 Nut Superseded
44 12638524 1 Washer $0.90
45 123925 1 Spacer -Cars without A.C. Unavailable
46 13540724 1 Stud Unavailable
47 102741 1 Nut $0.90
48 12644424 1 Washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
