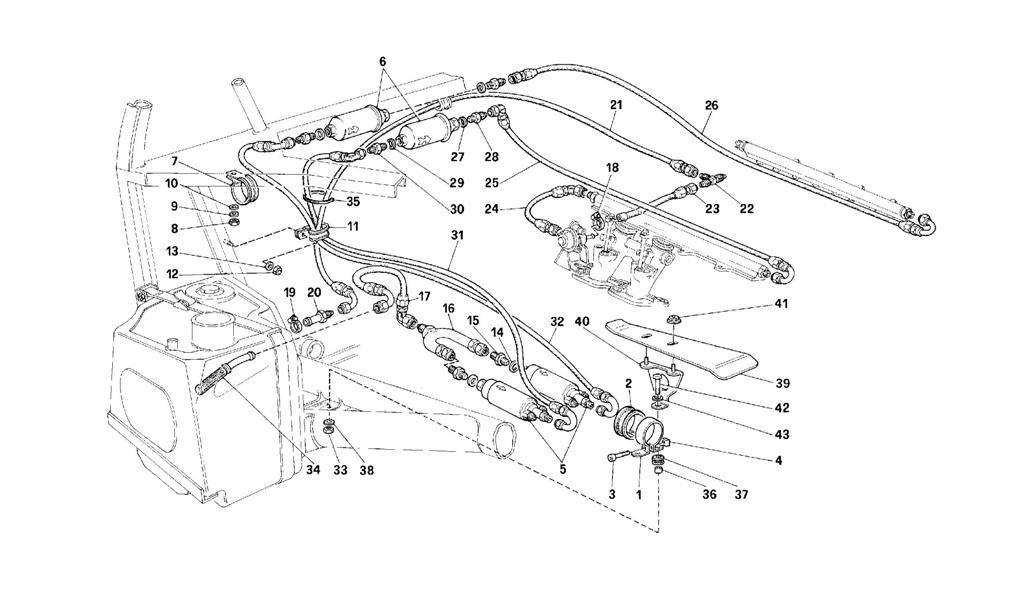

PUMP AND FUEL PIPING -NOT FOR USA

Go to Split View

PUMP AND FUEL PIPING -NOT FOR USA

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 147617 *Qty: 2 Clip -Valid after depletion of 134379 $2.98
Location: 2 Prev | Next Part: 123848 *Qty: 2 Insert $1.05
Location: 3 Prev | Next Part: 14305521 *Qty: 2 Screw -For clamp 134379- $0.90
Location: 3 Prev | Next Part: 14305674 *Qty: 2 Screw -For clamp 147617- $0.90
Location: 4 Prev | Next Part: 14089311 *Qty: 2 Nut $0.90
Location: 5 Prev | Next Part: 199618 *Qty: 2 Fuel pump Call
Location: 6 Prev | Next Part: 134470 *Qty: 2 Fuel filter $100.75
Location: 7 Prev | Next Part: 137243 *Qty: 2 Bracket $3.90
Location: 8 Prev | Next Part: 15896214 *Qty: 2 Nut $0.90
Location: 9 Prev | Next Part: 11197773 *Qty: 2 Washer Superseded
Location: 10 Prev | Next Part: 12643724 *Qty: 2 Washer Superseded
Location: 11 Prev | Next Part: 61712500 *Qty: 1 Bracket $1.89
Location: 12 Prev | Next Part: 102948 *Qty: 1 Nut $0.90
Location: 13 Prev | Next Part: 12643724 *Qty: 1 Washer Superseded
Location: 14 Prev | Next Part: 10257060 *Qty: 2 Gasket $0.90
Location: 15 Prev | Next Part: 136845 *Qty: 2 Union $30.73
Location: 16 Prev | Next Part: 136935 *Qty: 1 Union $837.56
Location: 17 Prev | Next Part: 136089 *Qty: 1 Fuel pipe from tank to 3-way pumps $478.02
Location: 18 Prev | Next Part: 12179690 *Qty: 2 Clamp Call
Location: 19 Prev | Next Part: 13000390 *Qty: 1 Clamp $0.90
Location: 20 Prev | Next Part: 136107 *Qty: 1 Union $8.68
Location: 21 Prev | Next Part: 136846 *Qty: 1 Fuel pipe from 3-way flutes to L.H. tank $474.87
Location: 22 Prev | Next Part: 136109 *Qty: 1 Union $69.12
Location: 23 Prev | Next Part: 136849 *Qty: 2 Fuel pipe from pressure adjuster to 3-way union -Valid till depletion Superseded
Location: 23 Prev | Next Part: 146358 *Qty: 2 Fuel pipe from pressure adjuster to 3-way union -Valid after depletion of 136849 $427.67
Location: 24 Prev | Next Part: 136847 *Qty: 2 Pipe from flute to pressure adjuster $329.69
Location: 25 Prev | Next Part: 136848 *Qty: 1 Fuel pipe from L.H. filter to L.H. flute $465.21
Location: 26 Prev | Next Part: 136852 *Qty: 1 Fuel pipe from R.H. filter to R.H. flute $268.16
Location: 27 Prev | Next Part: 10298460 *Qty: 2 Gasket $0.90
Location: 28 Prev | Next Part: 136077 *Qty: 2 Union $87.59
Location: 29 Prev | Next Part: 11270260 *Qty: 2 Gasket $0.90
Location: 30 Prev | Next Part: 136099 *Qty: 2 Union $27.94
Location: 31 Prev | Next Part: 136851 *Qty: 1 Fuel pipe from L.H. pump to L.H. filter $511.52
Location: 32 Prev | Next Part: 136850 *Qty: 1 Fuel pipe from R.H. pump to R.H. filter $502.00
Location: 33 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 34 Prev | Next Part: 137107 *Qty: 1 Filter $186.69
Location: 35 Prev | Next Part: 14560187 *Qty: 1 Clamp $0.90
Location: 36 Prev | Next Part: 103550 *Qty: 4 Spacer bush -Only for clamp 147617 $2.16
Location: 37 Prev | Next Part: 103549 *Qty: 4 Cable guide -Only for clamp 147617 $1.37
Location: 38 Prev | Next Part: 14499301 *Qty: 4 Washer $0.90
Location: 39 Prev | Next Part: 149083 *Qty: 1 Shield $195.14
Location: 40 Prev | Next Part: 149089 *Qty: 1 Bracket Call
Location: 41 Prev | Next Part: 13832101 *Qty: 2 Nut $0.90
Location: 42 Prev | Next Part: 10902624 *Qty: 1 Screw $0.90
Location: 43 Prev | Next Part: 12643724 *Qty: 1 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
