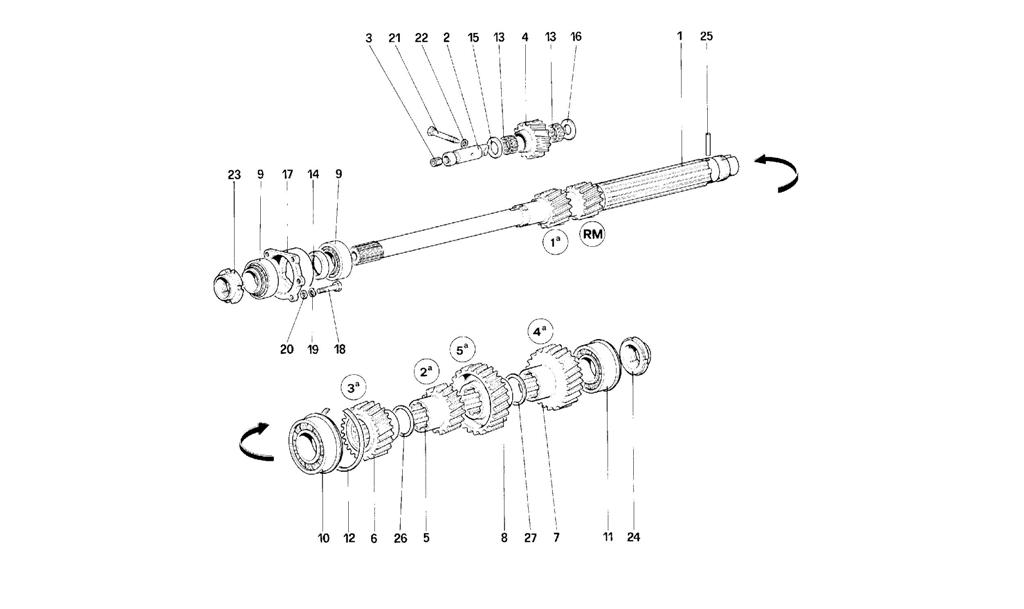

MAIN SHAFT GEARS

Go to Split View

MAIN SHAFT GEARS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 70000619 *Qty: 1 Complete series of 1st and reverse gears $15,732.90
Location: - Prev | Next Part: 70000621 *Qty: 1 2nd gear complete series $3,069.61
Location: - Prev | Next Part: 70000622 *Qty: 1 3rd gear complete series $1,965.62
Location: - Prev | Next Part: 70000623 *Qty: 1 4th gear complete series $4,415.24
Location: - Prev | Next Part: 70000625 *Qty: 1 5th gear complete series Call
Location: 1 Prev | Next Part: 139860 *Qty: 1 Main shaft -With assembly 70000619 Call
Location: 2 Prev | Next Part: 122722 *Qty: 1 Shaft for reverse idle gear $125.36
Location: 3 Prev | Next Part: 10275550 *Qty: 1 Plug $1.28
Location: 4 Prev | Next Part: 140622 *Qty: 1 Reverse idle gear -With assembly 70000619 Call
Location: 5 Prev | Next Part: 139862 *Qty: 1 Gear, 2nd speed -With assembly 70000621 $1,312.40
Location: 6 Prev | Next Part: 122724 *Qty: 1 Gear, 3th speed -With assembly 70000622 Call
Location: 7 Prev | Next Part: 122725 *Qty: 1 Gear, 4th speed -With assembly 70000623 Call
Location: 8 Prev | Next Part: 139864 *Qty: 1 Gear, 5th speed -With assembly 70000625 Call
Location: 9 Prev | Next Part: 121821 *Qty: 2 Bearing $48.95
Location: 10 Prev | Next Part: 121819 *Qty: 1 Central bearing $314.99
Location: 11 Prev | Next Part: 121820 *Qty: 1 Bearing $241.07
Location: 12 Prev | Next Part: 122113 *Qty: 1 Stop ring $0.91
Location: 13 Prev | Next Part: 104734 *Qty: 2 Roller cage for reverse idle gear $6.12
Location: 14 Prev | Next Part: 122128 *Qty: 1 Spacer (As option Nr. 138137) $14.52
Location: 15 Prev | Next Part: 100703 *Qty: 1 Spacer $24.89
Location: 16 Prev | Next Part: 123870 *Qty: 1 Spacer $4.73
Location: 17 Prev | Next Part: 121991 *Qty: 1 Bush for bearing $87.10
Location: 18 Prev | Next Part: 10903221 *Qty: 6 Screw $0.90
Location: 19 Prev | Next Part: 127494 *Qty: 6 Washer $0.90
Location: 20 Prev | Next Part: 10519424 *Qty: 6 Washer Call
Location: 21 Prev | Next Part: 123877 *Qty: 1 Screw $6.32
Location: 22 Prev | Next Part: 10297760 *Qty: 1 Guarnizione $0.90
Location: 23 Prev | Next Part: 106095 *Qty: 1 Ring nut $29.00
Location: 24 Prev | Next Part: 153059 *Qty: 1 Ring nut $89.83
Location: 25 Prev | Next Part: 13907770 *Qty: 1 Pin $0.90
Location: 26 Prev | Next Part: 125701 *Qty: 1 Spacer (Possible mounting) $4.11
Location: 27 Prev | Next Part: 125767 *Qty: 1 Spacer (Possible mounting) $4.11

* Quantity shown indicates the number of pieces used in the diagram.
