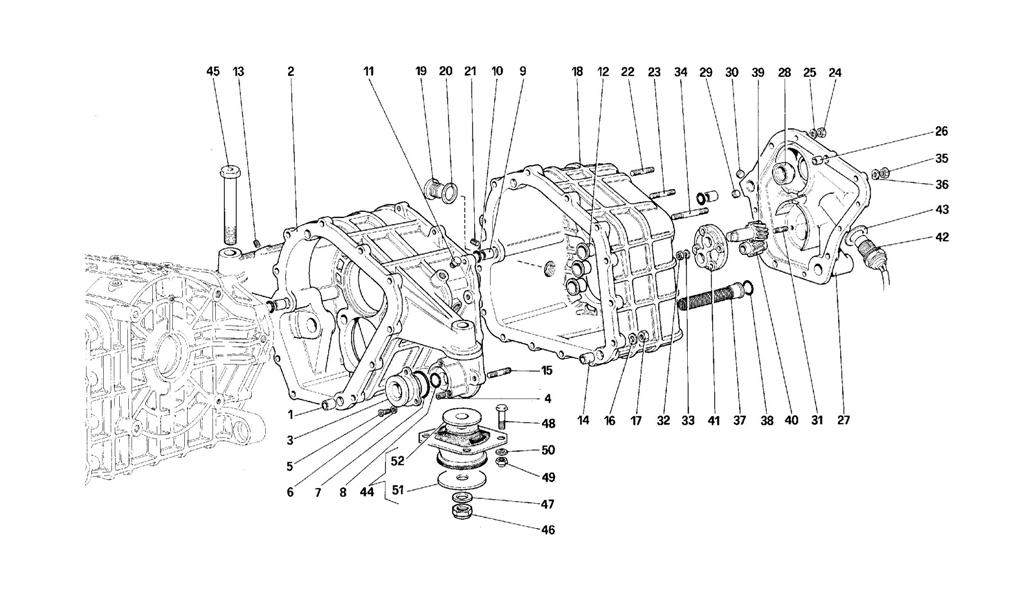

GEARBOX

Go to Split View

GEARBOX

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 123865 *Qty: 2 Dowel $34.03
Location: 2 Prev | Next Part: 122718 *Qty: 1 Gearbox (housing front) $3,063.97
Location: 3 Prev | Next Part: 121798 *Qty: 1 Cover for control shaft $57.65
Location: 4 Prev | Next Part: 13525170 *Qty: 3 Heli-coil $0.90
Location: 5 Prev | Next Part: 111189 *Qty: 3 Screw $5.66
Location: 6 Prev | Next Part: 12606779 *Qty: 3 Washer $0.90
Location: 7 Prev | Next Part: 104756 *Qty: 1 Sealing ring $8.25
Location: 8 Prev | Next Part: 105140 *Qty: 1 Sealing ring $3.49
Location: 9 Prev | Next Part: 121995 *Qty: 3 Bush $19.71
Location: 10 Prev | Next Part: 114808 *Qty: 3 Sealing ring $4.81
Location: 11 Prev | Next Part: 14326001 *Qty: 1 Plug $0.90
Location: 12 Prev | Next Part: 126513 *Qty: 3 Bush $42.71
Location: 13 Prev | Next Part: 65928500 *Qty: 3 Plug $17.92
Location: 14 Prev | Next Part: 123865 *Qty: 2 Dowel $34.03
Location: 15 Prev | Next Part: 13517021 *Qty: 14 Stud Call
Location: 16 Prev | Next Part: 12601379 *Qty: 14 Washer Superseded
Location: 17 Prev | Next Part: 16100821 *Qty: 14 Nut Call
Location: 18 Prev | Next Part: 142518 *Qty: 1 Gearbox (housing rear) Call
Location: 19 Prev | Next Part: 10275011 *Qty: 1 Plug $2.01
Location: 20 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 21 Prev | Next Part: 65928500 *Qty: 3 Plug $17.92
Location: 22 Prev | Next Part: 11500521 *Qty: 6 Stud $2.36
Location: 23 Prev | Next Part: 11500821 *Qty: 2 Stud Call
Location: 24 Prev | Next Part: 15896214 *Qty: 6 Nut Call
Location: 25 Prev | Next Part: 12601279 *Qty: 6 Washer Superseded
Location: 26 Prev | Next Part: 103038 *Qty: 2 Dowel $1.40
Location: 27 Prev | Next Part: 131188 *Qty: 1 Rear cover $4,606.38
Location: 28 Prev | Next Part: 124726 *Qty: 1 Ring seat $75.15
Location: 29 Prev | Next Part: 14326050 *Qty: 1 Plug $1.50
Location: 30 Prev | Next Part: 10275550 *Qty: 1 Plug $1.28
Location: 31 Prev | Next Part: 11500020 *Qty: 4 Stud $0.90
Location: 32 Prev | Next Part: 15896214 *Qty: 4 Nut Call
Location: 33 Prev | Next Part: 12601279 *Qty: 4 Washer Superseded
Location: 34 Prev | Next Part: 13517421 *Qty: 4 Stud $41.97
Location: 35 Prev | Next Part: 16100821 *Qty: 4 Nut Call
Location: 36 Prev | Next Part: 12601379 *Qty: 4 Washer Superseded
Location: 37 Prev | Next Part: 109726 *Qty: 1 Oil filter $209.92
Location: 38 Prev | Next Part: 101033 *Qty: 1 Sealing ring $1.97
Location: 39 Prev | Next Part: 109722 *Qty: 1 Oil pump drive gear $395.90
Location: 40 Prev | Next Part: 109723 *Qty: 1 Oil pump driven gear $535.16
Location: 41 Prev | Next Part: 121962 *Qty: 1 Oil pump cover $189.71
Location: 42 Prev | Next Part: 116987 *Qty: 1 Pulse generator $252.75
Location: 43 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 44 Prev | Next Part: 177755 *Qty: 2 Rubber mounting Call
Location: 45 Prev | Next Part: 121858 *Qty: 2 Screw $24.45
Location: 46 Prev | Next Part: 12575911 *Qty: 2 Nut Call
Location: 47 Prev | Next Part: 10520221 *Qty: 2 Washer $1.95
Location: 48 Prev | Next Part: 15970621 *Qty: 8 Screw Call
Location: 49 Prev | Next Part: 133988 *Qty: 8 Nut $0.90
Location: 50 Prev | Next Part: 10516879 *Qty: 8 Washer Call
Location: 51 Prev | Next Part: 132269 *Qty: 2 Pad Call
Location: 52 Prev | Next Part: 132268 *Qty: 2 Pad Call

* Quantity shown indicates the number of pieces used in the diagram.
