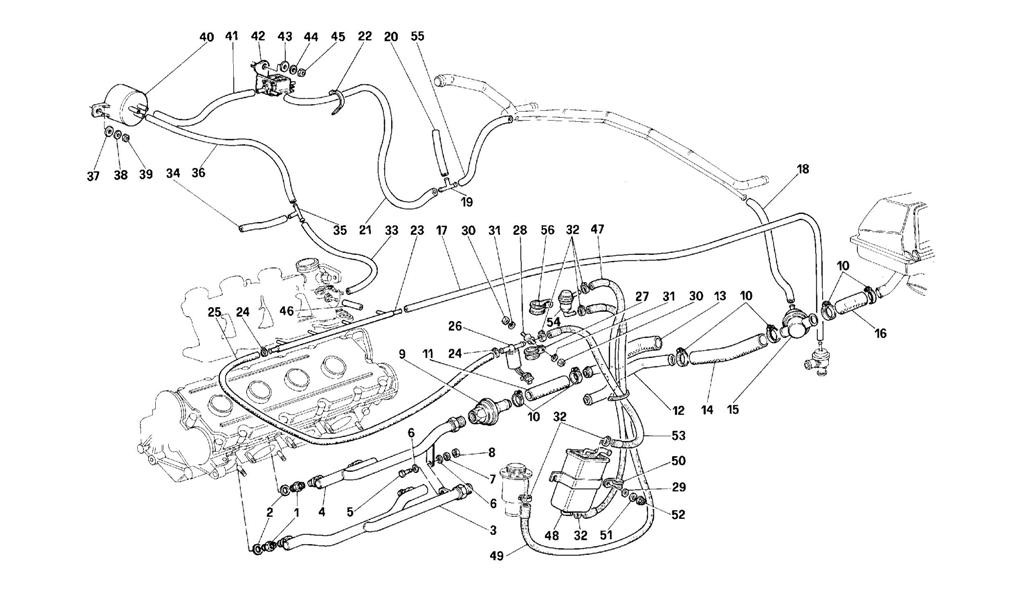

AIR INJECTION DEVICE -VALID FOR USA

AIR INJECTION DEVICE -VALID FOR USA

Location Part # Quantity* Description Price Add To Cart
1 121718 8 Union $55.42
2 10257060 8 Gasket $0.90
3 142193 1 Lower air pipe L.H. head $504.60
3 142191 1 Lower air pipe R.H. head $529.83
4 142194 1 Upper air pipe L.H. head $746.16
4 142192 1 Upper air pipe R.H. head $691.64
5 10902221 2 Screw Unavailable
6 12644424 4 Washer $0.90
7 106850 2 Washer Superseded
8 15896214 2 Nut Unavailable
9 148494 4 Check valve $75.00
10 13000490 16 Clamp Superseded
11 144320 4 Sleeve $58.08
12 133973 1 R.H. union $58.63
12 133974 1 L.H. union $64.05
13 147744 2 Hose Unavailable
14 144321 2 Sleeve $110.91
15 147390 2 Cut-off valve Unavailable
16 144320 2 Sleeve $58.08
17 147130 2 Rubber pipe to air valve $173.69
18 148204 1 Rubber pipe from L.H. cut-off $21.92
19 146972 1 3-ways union $275.35
20 148205 1 Rubber pipe from R.H. cut-off $12.23
21 147124 1 Rubber pipe from solenoid valve to 3-ways Unavailable
22 14560287 1 Clamp Superseded
23 141275 2 Intake pipe $126.41
24 12179690 2 Clamp Unavailable
25 137659 2 Rubber pipe $53.49
26 143003 2 Solenoid valve $123.71
27 10450890 2 Bracket Unavailable
28 113021 2 Pad $10.60
29 11188079 4 Washer Unavailable
30 15896470 4 Nut Unavailable
31 127493 4 Washer $0.90
32 12179690 12 Clamp Unavailable
33 147127 1 Rubber pipe from L.H. manifold $53.10
34 147121 1 Rubber pipe from R.H. manifold $7.75
35 146972 1 3-ways union $275.35
36 147122 1 Rubber pipe todepression tank $35.73
37 12643724 1 Washer Superseded
38 127494 1 Washer $0.90
39 15896214 1 Nut Unavailable
40 140175 1 Depression tank Unavailable
41 148203 1 Rubber pipe to solenoid valve $29.54
42 111704 1 Solenoid valve $277.14
43 12643724 1 Washer Superseded
44 127494 1 Washer $0.90
45 15896214 1 Nut Unavailable
46 147129 8 Rubber pipe $4.62
47 144340 2 Pipe from valve to vapor filter $169.30
48 143813 2 Vapor filter Unavailable
49 144344 2 Pipe from union $110.78
50 10450490 2 Bracket Unavailable
51 10519621 4 Washer $0.90
52 133989 4 Nut $0.90
53 144338 2 Pipe from vapor filter to solenoid valve $108.69
54 139568 2 Anti-tilting valve Unavailable
55 147125 1 Rubber pipe from 3-ways $26.71
56 139980 1 Bracket $3.63

* Quantity shown indicates the number of pieces used in the diagram.
