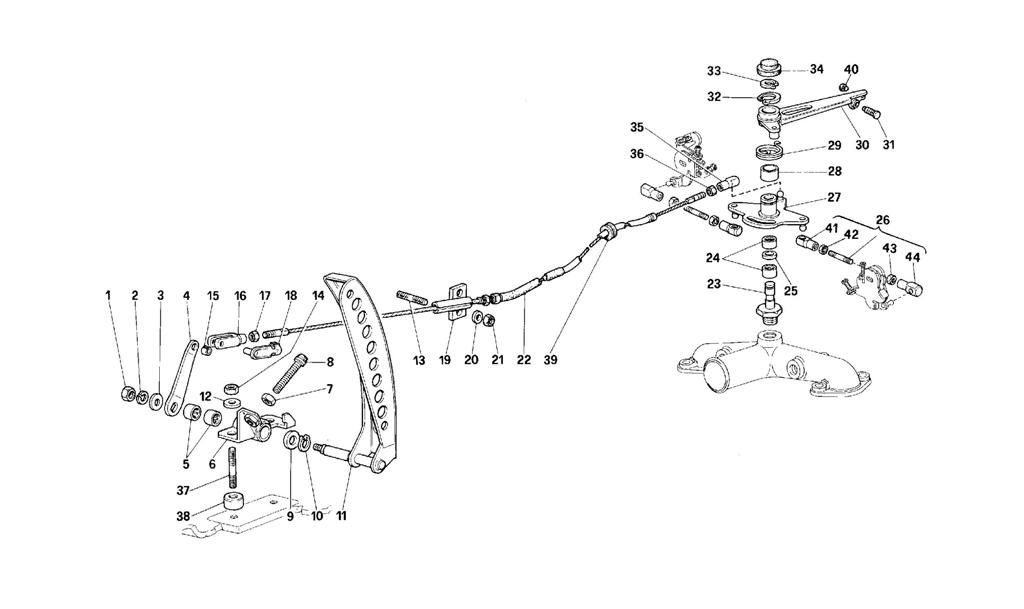

ACCELERATOR CONTROL

Go to Split View

ACCELERATOR CONTROL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 16100821 *Qty: 1 Nut $0.90
Location: 2 Prev | Next Part: 127496 *Qty: 1 Washer $0.90
Location: 3 Prev | Next Part: 10519624 *Qty: 1 Washer $0.90
Location: 4 Prev | Next Part: 136112 *Qty: 1 Lever $14.70
Location: 5 Prev | Next Part: 101677 *Qty: 2 Bearing $2.13
Location: 6 Prev | Next Part: 115396 *Qty: 1 Support $50.26
Location: 7 Prev | Next Part: 16102314 *Qty: 1 Nut $0.90
Location: 8 Prev | Next Part: 105232 *Qty: 1 Pin $4.57
Location: 9 Prev | Next Part: 108576 *Qty: 1 Washer $1.51
Location: 10 Prev | Next Part: 11066075 *Qty: 1 Seeger ring $0.90
Location: 11 Prev | Next Part: 136206 *Qty: 1 Pedal assy $519.22
Location: 12 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 13 Prev | Next Part: 11001021 *Qty: 2 Stud Call
Location: 14 Prev | Next Part: 16104411 *Qty: 2 Nut $0.90
Location: 15 Prev | Next Part: 132212 *Qty: 1 Bushing $24.76
Location: 16 Prev | Next Part: 132290 *Qty: 1 Fork $16.06
Location: 17 Prev | Next Part: 10725011 *Qty: 1 Nut $1.83
Location: 18 Prev | Next Part: 132291 *Qty: 1 Pin $2.54
Location: 19 Prev | Next Part: 136209 *Qty: 1 Support $8.71
Location: 20 Prev | Next Part: 14496301 *Qty: 2 Washer $0.95
Location: 21 Prev | Next Part: 169180 *Qty: 2 Nut $0.90
Location: 22 Prev | Next Part: 137505 *Qty: 1 Cable Call
Location: 23 Prev | Next Part: 136705 *Qty: 1 Pin $44.72
Location: 24 Prev | Next Part: 132873 *Qty: 2 Bearing $4.79
Location: 25 Prev | Next Part: 136880 *Qty: 1 Spacer $26.64
Location: 26 Prev | Next Part: 133612 *Qty: 2 Tie rod $77.84
Location: 27 Prev | Next Part: 136706 *Qty: 1 Lever $131.68
Location: 28 Prev | Next Part: 103227 *Qty: 1 Bushing $3.16
Location: 29 Prev | Next Part: 136715 *Qty: 1 Spring $2.25
Location: 30 Prev | Next Part: 136710 *Qty: 1 Lever $396.78
Location: 31 Prev | Next Part: 136716 *Qty: 1 Screw $129.41
Location: 32 Prev | Next Part: 11066476 *Qty: 1 Seeger ring $0.90
Location: 33 Prev | Next Part: 11065676 *Qty: 1 Seeger ring $0.90
Location: 34 Prev | Next Part: 137208 *Qty: 1 Plug Call
Location: 35 Prev | Next Part: 173999 *Qty: 1 Joint $7.35
Location: 36 Prev | Next Part: 10725011 *Qty: 1 Nut $1.83
Location: 37 Prev | Next Part: 13517224 *Qty: 2 Stud $0.90
Location: 38 Prev | Next Part: 138197 *Qty: 2 Spacer -Till car Nr. 77424 $73.52
Location: 39 Prev | Next Part: 10397380 *Qty: 1 Fairlead $1.67
Location: 40 Prev | Next Part: 61083900 *Qty: 1 Rubber $0.90
Location: 41 Prev | Next Part: 105619 *Qty: 2 L.H. ball joint $96.63
Location: 42 Prev | Next Part: 105586 *Qty: 2 L.H. nut $5.52
Location: 43 Prev | Next Part: 15896470 *Qty: 2 R.H. nut $0.90
Location: 44 Prev | Next Part: 173999 *Qty: 2 R.H. ball joint $7.35

* Quantity shown indicates the number of pieces used in the diagram.
