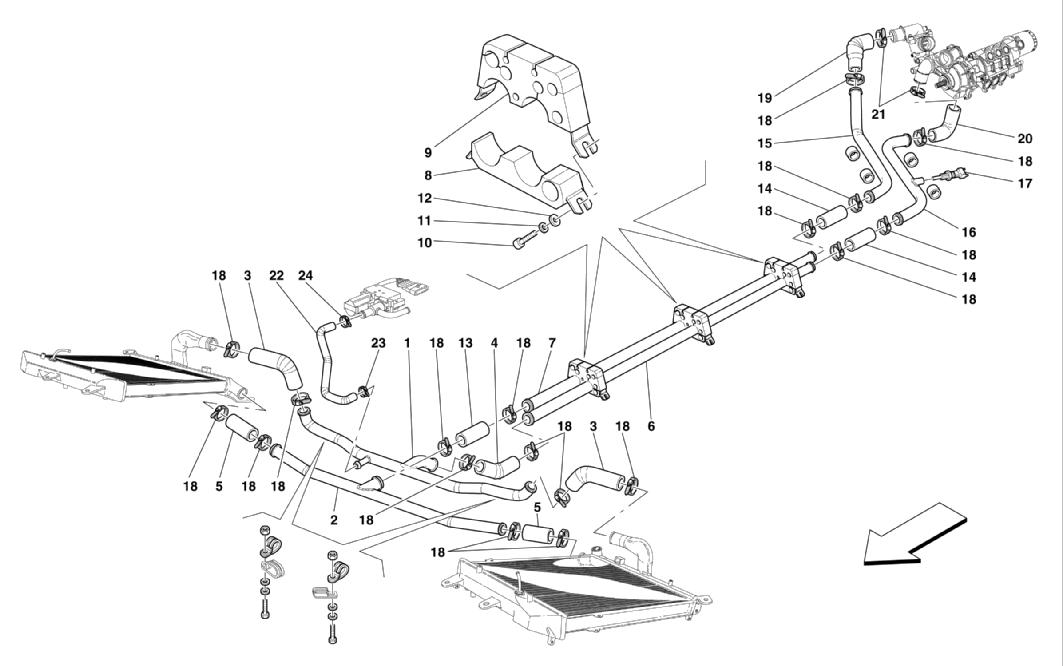

COOLING SYSTEM

Go to Split View

COOLING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 188485 *Qty: 1 DELIVERY WATER PIPE $225.06
Location: 2 Prev | Next Part: 188486 *Qty: 1 RETURN WATER PIPE $131.14
Location: 3 Prev | Next Part: 181742 *Qty: 2 DELIVERY RUBBER HOSE $135.38
Location: 4 Prev | Next Part: 193463 *Qty: 1 PRESHAPED RUBBER HOSE $169.69
Location: 5 Prev | Next Part: 188422 *Qty: 2 RETURN RUBBER HOSE $119.80
Location: 6 Prev | Next Part: 188064 *Qty: 1 UNDERFLOOR DELIVERY ALUMINIUM TUBE $444.87
Location: 7 Prev | Next Part: 191685 *Qty: 1 UNDERFLOOR RETURN ALUMINIUM TUBE $243.71
Location: 8 Prev | Next Part: 188811 *Qty: 3 LOWER SUPPORT $826.01
Location: 9 Prev | Next Part: 188812 *Qty: 3 UPPER SUPPORT $86.50
Location: 10 Prev | Next Part: 13026924 *Qty: 6 SCREW Unavailable
Location: 11 Prev | Next Part: 12644424 *Qty: 6 WASHER $0.90
Location: 12 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 13 Prev | Next Part: 191681 *Qty: 1 RETURN RUBBER HOSE $161.91
Location: 14 Prev | Next Part: 188422 *Qty: 2 RUBBER HOSE $119.80
Location: 15 Prev | Next Part: 188063 *Qty: 1 DELIVERY TUBE FROM UNDER FLOOR TO PUMP $376.64
Location: 16 Prev | Next Part: 189150 *Qty: 1 RETURN TUBE FROM UNDER FLOOR TO PUMP $144.13
Location: 17 Prev | Next Part: 180137 *Qty: 1 TEMPERATURE SENSOR $27.22
Location: 18 Prev | Next Part: 13000690 *Qty: 18 SCREW COLLAR Unavailable
Location: 19 Prev | Next Part: 194208 *Qty: 1 RETURN RUBBER HOSE $93.22
Location: 20 Prev | Next Part: 193464 *Qty: 1 DELIVERY RUBBER HOSE $68.21
Location: 21 Prev | Next Part: 13000790 *Qty: 2 SCREW COLLAR $0.90
Location: 22 Prev | Next Part: 67191600 *Qty: 1 TUBE FROM 3-WAY TO TGK VALVE $277.70
Location: 23 Prev | Next Part: 13000490 *Qty: 1 SCREW COLLAR Superseded
Location: 24 Prev | Next Part: 13000390 *Qty: 1 SCREW COLLAR $0.90

* Quantity shown indicates the number of pieces used in the diagram.
