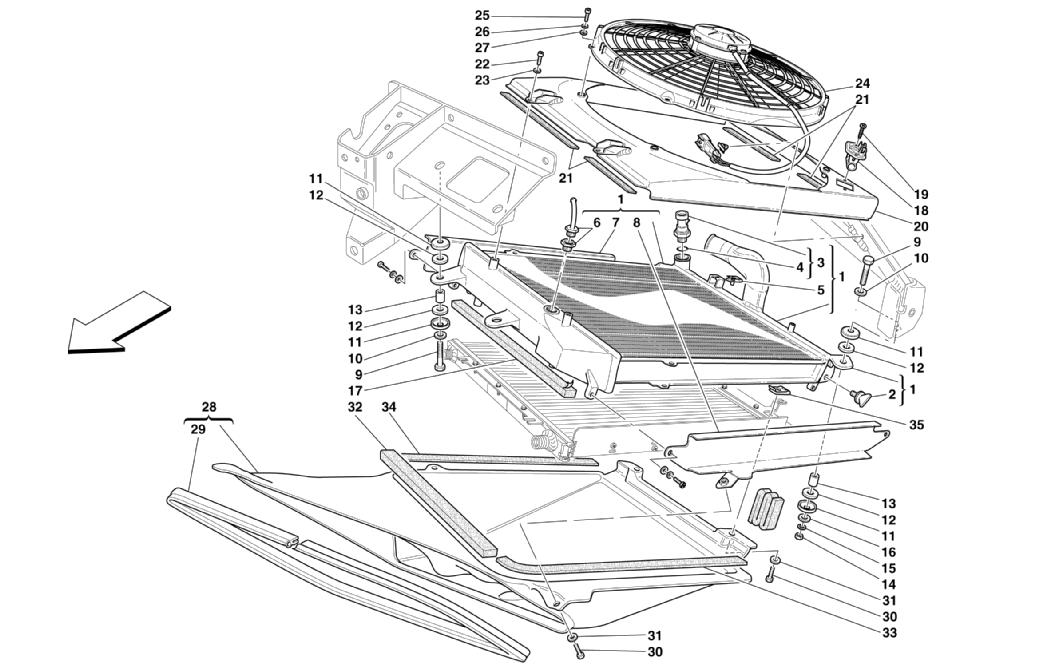

COOLING SYSTEM RADIATORS

Go to Split View

COOLING SYSTEM RADIATORS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 185782 *Qty: 1 WATER L.H. RADIATOR $6,903.43
Location: 1 Prev | Next Part: 185774 *Qty: 1 WATER R.H. RADIATOR $6,903.43
Location: 2 Prev | Next Part: 176324 *Qty: 2 WATER OUTLET PLUG $0.90
Location: 3 Prev | Next Part: 176322 *Qty: 1 TEMPERATURE SWITCH $32.27
Location: 4 Prev | Next Part: 101508 *Qty: 1 GASKET $1.28
Location: 5 Prev | Next Part: 194127 *Qty: 2 FLEXIBLE CLIP $11.89
Location: 6 Prev | Next Part: 194126 *Qty: 2 VENT PIPE $159.09
Location: 7 Prev | Next Part: 190286 *Qty: 1 R.H. STRAP $70.52
Location: 8 Prev | Next Part: 190287 *Qty: 1 L.H. STRAP $82.44
Location: 9 Prev | Next Part: 16043934 *Qty: 8 SCREW $0.90
Location: 10 Prev | Next Part: 11193974 *Qty: 8 WASHER $0.90
Location: 11 Prev | Next Part: 107979 *Qty: 16 CUP $0.90
Location: 12 Prev | Next Part: 107978 *Qty: 16 PAD $1.28
Location: 13 Prev | Next Part: 155395 *Qty: 8 SPACER $1.37
Location: 14 Prev | Next Part: 16100814 *Qty: 4 NUT $0.90
Location: 15 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 16 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 17 Prev | Next Part: 67363900 *Qty: 2 GASKET -Valid for l.h. radiator $1.49
Location: 17 Prev | Next Part: 67363800 *Qty: 1 GASKET -Valid for r.h. radiator $1.49
Location: 18 Prev | Next Part: 185543 *Qty: 2 RESISTOR $30.51
Location: 19 Prev | Next Part: 15688375 *Qty: 4 SCREW $0.90
Location: 20 Prev | Next Part: 188767 *Qty: 1 R.H. HOOD FOR ELECTROFAN $488.59
Location: 20 Prev | Next Part: 185785 *Qty: 1 L.H. HOOD FOR ELECTROFAN $488.59
Location: 21 Prev | Next Part: 195144 *Qty: 2 GASKET -Valid for hood front and rear side $11.39
Location: 22 Prev | Next Part: 62940900 *Qty: 2 SCREW -M6x15 $1.57
Location: 23 Prev | Next Part: 166601 *Qty: 8 WASHER $0.97
Location: 24 Prev | Next Part: 195199 *Qty: 2 ELECTROFAN $522.93
Location: 25 Prev | Next Part: 14304224 *Qty: 8 SCREW $0.90
Location: 26 Prev | Next Part: 12637824 *Qty: 8 WASHER $0.90
Location: 27 Prev | Next Part: 127493 *Qty: 8 WASHER Superseded
Location: 28 Prev | Next Part: 66534900 *Qty: 1 L.H. AIR INLET $947.78
Location: 28 Prev | Next Part: 66534700 *Qty: 1 R.H. AIR INLET $947.78
Location: 29 Prev | Next Part: 66584700 *Qty: 1 L.H. GASKET $44.14
Location: 29 Prev | Next Part: 66584800 *Qty: 1 R.H. GASKET $44.14
Location: 30 Prev | Next Part: 10902124 *Qty: 6 SCREW -M6x14 $0.90
Location: 30 Prev | Next Part: 62940900 *Qty: 2 SCREW -M6x15 $1.57
Location: 31 Prev | Next Part: 12644477 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 11193274 *Qty: 6 WASHER $0.90
Location: 32 Prev | Next Part: 67363700 *Qty: 1 GASKET -Valid for r.h. radiator $0.90
Location: 32 Prev | Next Part: 67364100 *Qty: 1 GASKET -Valid for l.h. radiator $0.90
Location: 33 Prev | Next Part: 67364000 *Qty: 1 GASKET -Valid for l.h. radiator $1.21
Location: 33 Prev | Next Part: 67363600 *Qty: 1 GASKET -Valid for r.h. radiator $0.90
Location: 34 Prev | Next Part: 67363600 *Qty: 1 GASKET -Valid for r.h. radiator $0.90
Location: 34 Prev | Next Part: 67364200 *Qty: 1 GASKET -Valid for l.h. radiator $0.90
Location: 35 Prev | Next Part: 62766300 *Qty: 4 CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
