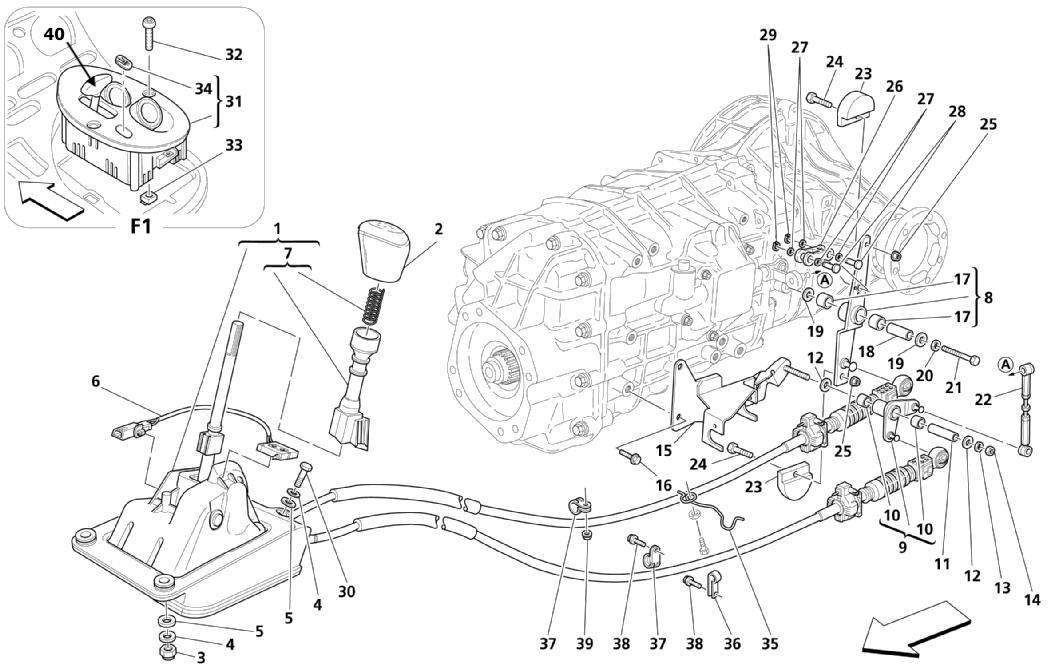

OUTER GEARBOX CONTROLS

Back to Maserati Spyder 2002+ components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	194730	1	GEARBOX CONTROL TURRET - Not for F1	$247.29
2	186124	1	GEARBOX CONTROL KNOB - Optional - Carbon - Not for F1		Unavailable
2	186123	1	GEARBOX CONTROL KNOB - Optional - Brier - Not for F1		Unavailable
2	186122	1	GEARBOX CONTROL KNOB - Standard - Not for F1		Unavailable
3	16100814	3	NUT - Not for F1		Unavailable
4	12601374	4	WASHER - Not for F1	$0.90
5	12625224	4	WASHER - Not for F1		Unavailable
6	980001109	1	MICROSWITCH KIT - Not for F1	$34.10
7	980001110	1	GEARBOX CONTROL SLEEVE KIT - Not for F1		Unavailable
8	185807	1	COMPLETE GEAR COUPLING CABLE - Not for F1	$1,234.24
9	186777	1	COMPLETE GEARSHIFTROCKER ARM - Not for F1		Unavailable
10	103336	2	SELF-LUBRICATING BUSHING - Not for F1		Unavailable
11	185907	1	BUSHING - Not for F1		Unavailable
12	184520	2	WASHER - Not for F1		Unavailable
13	12604474	1	WASHER - Not for F1	$0.90
14	14075811	1	NUT - Not for F1	$3.53
15	186780	1	BRACKET FOR GEARBOX CABLE FIXING - Not for F1		Unavailable
16	16296921	3	SCREW - Not for F1	$3.37
17	103226	2	SELF-LUBRICATING BUSHING - Not for F1	$11.75
18	183396	1	BUSHING - Not for F1	$70.58
19	184525	2	WASHER - Not for F1	$6.05
20	12604574	1	WASHER - Not for F1	$0.90
21	15888724	1	SCREW - Not for F1	$1.40
22	185976	1	COMPLETE TIE ROD FOR GEARSHIFT - Not for F1	$101.66
23	183738	2	COUNTER-WEIGHT - Not for F1	$99.39
24	16286224	2	SCREW - Not for F1	$3.33
25	14058419	2	NUT - Not for F1	$1.14
26	174912	1	FORK FOR GEARBOX CONTROL COUPLING - Not for F1	$190.90
27	171673	4	SPACER - Not for F1	$30.43
28	174974	2	PIN - Not for F1		Unavailable
29	11065674	2	Seeger Ring - Not for F1	$0.90
30	16135724	1	SCREW - Not for F1	$3.98
31	191918	1	F1 CONTROL DASHBOARD - Valid for F1 - Valid for RHD - Valid after stock exhaustion of 189423	$2,760.80
31	191917	1	F1 CONTROL DASHBOARD - Valid for F1 - Not for RHD - Valid after stock exhaustion of 183329		Unavailable
31	189423	1	F1 CONTROL DASHBOARD - Valid for F1 - Valid for RHD - Valid till stock exhaustion	$2,881.59
31	183329	1	F1 CONTROL DASHBOARD - Valid for F1 - Not for RHD - Valid till stock exhaustion		Unavailable
32	191016	2	SCREW - Valid for F1	$3.98
33	66305600	2	FIXING CLIP - Valid for F1	$2.33
34	66951200	1	MASERATI MARK - Valid for F1	$72.82
35	193299	1	SUPPORT FOR CABLE - Not for F1	$26.92
36	312020432	1	CLAMP - Not for F1	$4.14
37	10441690	2	BRACKET WITH SHEATH - Not for F1	$2.72
38	10711227	2	SCREW - Not for F1	$3.37
39	13831811	1	NUT - Not for F1		Unavailable
40	RL-01	1	REVERSE LEVER REPAIR FORK	$110.00

* Quantity shown indicates the number of pieces used in the diagram.
