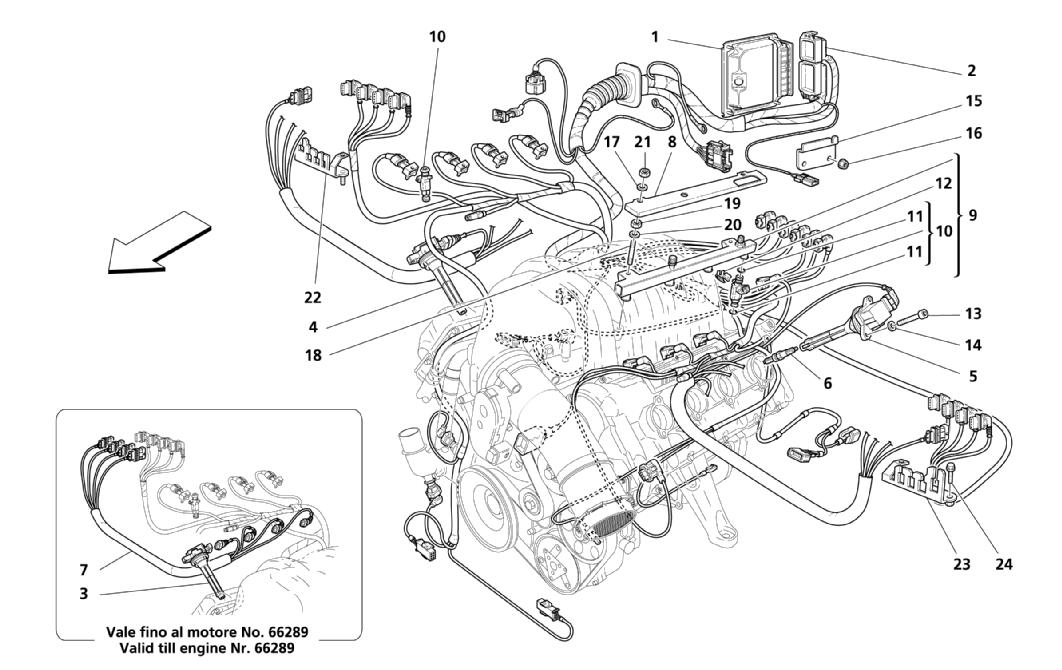

INJECTION DEVICE - IGNITION

Location Part # Quantity* Description Price Add To Cart
1 192658 1 CONTROL UNIT IGNITION
- Valid for F1 - Valid for USA and CDN 		$2,485.01
1 194723 1 CONTROL UNIT IGNITION
- Valid for F1 - Not for USA and CDN - Valid for LHD from car Ass. Nr. 9718 - Valid for RHD from car Ass. Nr. 9656 		Unavailable
1 193590 1 CONTROL UNIT IGNITION
- Valid for F1 - Not for USA and CDN - Valid for LHD till car Ass. Nr. 9717 - Valid for RHD till car Ass. Nr. 9655 		$3,215.52
1 194725 1 CONTROL UNIT IGNITION
- Not for F1 - Not for USA and CDN - Valid for LHD from car Ass. Nr. 9718 - Valid for RHD from car Ass. Nr. 9656 		Unavailable
1 186318 1 CONTROL UNIT IGNITION
- Not for F1 - Not for USA and CDN - Valid for LHD till car Ass. Nr. 9717 - Valid for RHD till car Ass. Nr. 9655 		$2,419.76
1 192657 1 CONTROL UNIT IGNITION
- Not for F1 - Valid for USA and CDN 		$2,485.01
2 190041 1 IGNITION DEVICE CABLES
- Valid for USA and CDN 		$1,498.95
2 191271 1 INJECTION DEVICE CABLES
- Not for USA, CDN and RHD - Valid till car Ass. Nr. 9717 		$1,479.46
2 195032 1 INJECTION DEVICE CABLES
- Not for USA, CDN and RHD - Valid from car Ass. Nr. 9718 		Unavailable
2 191275 1 INJECTION DEVICE CABLES
- Valid for RHD - Valid till car Ass. Nr. 9655 		$1,369.03
2 195034 1 INJECTION DEVICE CABLES
- Valid for RHD - Valid from car Ass. Nr. 9656 		$1,573.66
3 186915 8 IGNITION COIL
- Valid till engine Nr. 66289 		$152.33
4 188504 4 FRONT IGNITION COIL
- Complete of cable - Valid from engine Nr. 66290 		$241.98
5 186914 4 REAR IGNITION COIL
- Complete of cable - Valid from engine Nr. 66290 		$224.29
6 585088400 8 SPARK PLUG Superseded
7 189550 1 LH. HEAD SIDE CABLE
- Valid till engine Nr. 66289 		$313.43
7 189549 1 RH. HEAD SIDE CABLE
- Valid till engine Nr. 66289 		$313.43
8 189124 1 LH. FLAUTES FUEL COVER $43.48
8 189123 1 RH. FLAUTES FUEL COVER $43.48
9 180257 1 COMPLETE L.H. INJECTORS PIPE $1,179.02
9 181292 1 COMPLETE R.H. INJECTORS PIPE $1,179.02
10 171723 8 ELECTRO-INJECTOR Superseded
11 133902 16 O.R. GASKET $7.59
12 144730 8 INJECTORS RETAINING CLIP $4.30
13 14305324 16 SCREW Unavailable
14 11197774 16 WASHER $0.90
15 66313100 1 MOTRONIC BRACKET $7.33
16 14084211 2 NUT Unavailable
17 11193874 4 WASHER $0.90
18 13516924 4 STUD $3.19
19 16102314 4 NUT Unavailable
20 12604474 4 WASHER $0.90
21 14042321 4 CAP NUT $2.84
22 190009 1 R.H. BRACKET FOR COIL CABLES $23.30
23 190010 1 L.H. BRACKET FOR COIL CABLES $23.30
24 18750121 2 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
