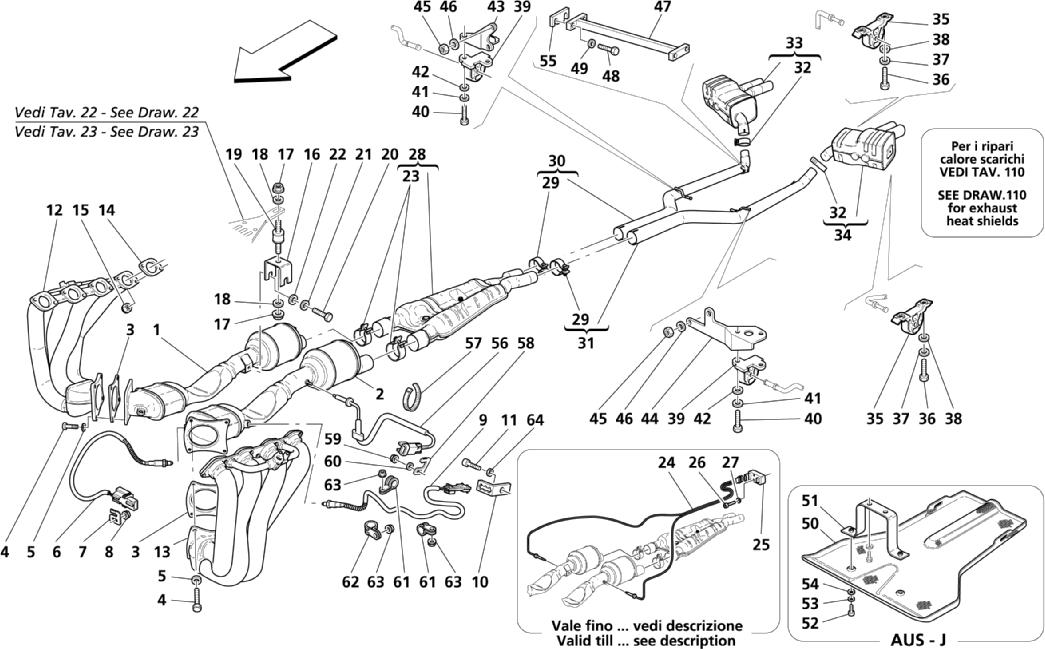

EXHAUST SYSTEM

Back to Maserati Spyder 2002+ components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	184803	1	R.H. CATALYST - Valid for LHD till car Ass. Nr. 9717 - Valid for RHD till car Ass. Nr. 9655	$5,846.40
1	194714	1	R.H. CATALYST - Valid for LHD from car Ass. Nr. 9718 - Valid for RHD from car Ass. Nr. 9656	$5,176.50
2	194715	1	R.H. CATALYST - Valid for LHD from car Ass. Nr. 9718 - Valid for RHD from car Ass. Nr. 9656	$5,176.50
2	184804	1	L.H. CATALYST - Valid for LHD till car Ass. Nr. 9717 - Valid for RHD till car Ass. Nr. 9655	$5,700.24
3	184798	2	GASKET - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)	$36.93
4	190213	8	SCREW	$5.26
5	11193874	8	WASHER	$0.90
6	182837	2	FRONT LAMBDA FEELER	$324.80
7	175856	2	CONNECTORS FIXING BRACKET		Unavailable
8	67190100	2	NUT		Unavailable
9	191412	2	REAR LAMBDA FEELER	$496.94
10	178366	2	CONNECTORS FIXING BRACKET	$5.01
11	14305724	2	SCREW	$0.90
12	183795	1	R.H. EXHAUST MANIFOLD	$5,001.92
13	183796	1	L.H. EXHAUST MANIFOLD	$5,001.92
14	182868	8	GASKET - Supplied also in the cylinder heads gasket revision kit (cod. 980020001)	$6.13
15	138392	16	NUT	$1.50
16	187827	1	BRACKET FOR CATALYSTS FIXING	$22.61
17	195273	2	NUT	$2.33
18	12625221	2	WASHER		Superseded
19	184333	1	PAD		Unavailable
20	16043324	2	SCREW	$0.90
21	11193874	2	WASHER	$0.90
22	12625224	2	WASHER		Unavailable
23	185307	2	CLAMP	$41.09
24	184926	1	THERMOCOUPLES SET - Valid for LHD till car Ass. Nr. 9717 - Valid for RHD till car Ass. Nr. 9655	$587.89
25	187866	1	CATALYSTS CONTROL STATION - Valid for LHD till car Ass. Nr. 9717 - Valid for RHD till car Ass. Nr. 9655	$657.42
26	15958407	2	SCREW - Valid for LHD till car Ass. Nr. 9717 - Valid for RHD till car Ass. Nr. 9655		Unavailable
27	10519304	2	WASHER - Valid for LHD till car Ass. Nr. 9717 - Valid for RHD till car Ass. Nr. 9655		Unavailable
28	187826	1	CENTRAL SILENCER	$3,426.64
29	173896	2	CLAMP		Superseded
30	188176	1	R.H. EXHAUST EXTENSION	$381.64
31	188177	1	L.H. EXHAUST EXTENSION	$410.87
32	185307	2	CLAMP	$41.09
33	184815	1	R.H. REAR SILENCER	$3,800.16
34	184816	1	L.H. REAR SILENCER	$3,800.16
35	184814	4	REAR SUPPORT	$75.68
36	16043224	8	SCREW		Unavailable
37	12601374	8	WASHER	$0.90
38	12638524	8	WASHER	$0.90
39	187861	2	ANTI-VIBRATION SUPPORT	$274.03
40	16043424	4	SCREW	$0.90
41	12601374	4	WASHER	$0.90
42	14496524	4	WASHER	$0.90
43	187775	1	R.H. SUPPORT	$26.80
44	187774	1	L.H. SUPPORT	$37.84
45	16100814	4	NUT		Unavailable
46	14496524	4	WASHER	$0.90
47	187836	1	SPACER BAR	$36.24
48	16043124	4	SCREW	$0.90
49	12601374	4	WASHER	$0.90
50	190270	1	UNDER EXHAUST SHIELD		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
