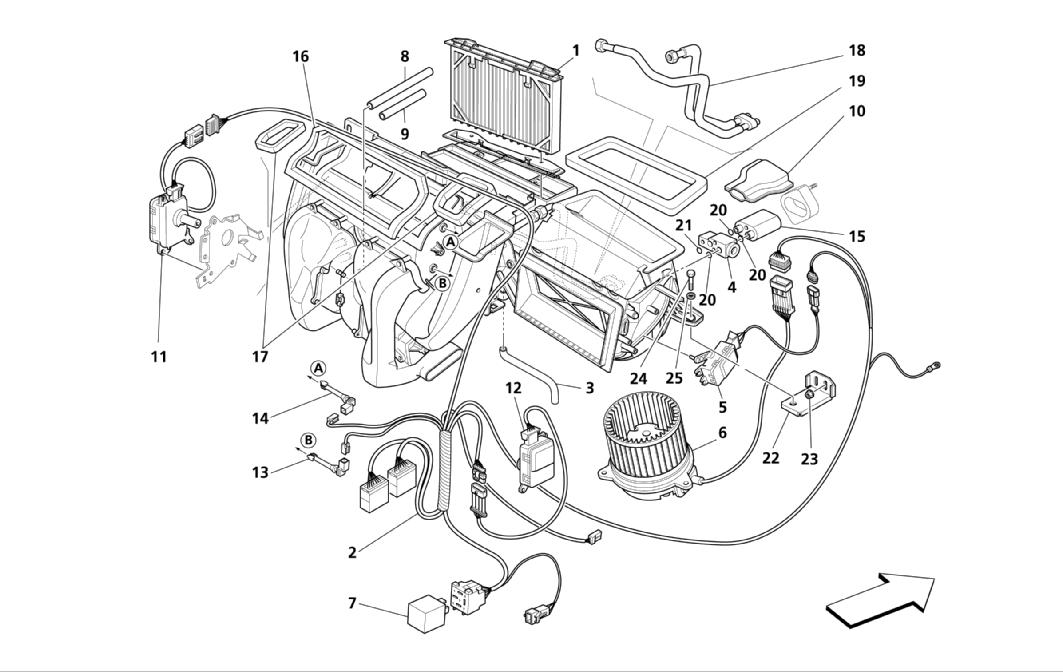

EVAPORATOR GROUP

Go to Split View

EVAPORATOR GROUP

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 66666100 *Qty: 1 COMPLETE EVAPORATOR SET
- Valid for GD
$2,625.69
Location: - Prev | Next Part: 66661000 *Qty: 1 COMPLETE EVAPORATOR SET
- Not for GD
$2,244.88
Location: 1 Prev | Next Part: 382400304 *Qty: 1 ANTIPOLLEN FILTER $103.94
Location: 2 Prev | Next Part: 980001125 *Qty: 1 RELAY COMPLETE CABLE
- Not for GD
$206.02
Location: 2 Prev | Next Part: 980001200 *Qty: 1 RELAY COMPLETE CABLE
- Valid for GD
$235.71
Location: 3 Prev | Next Part: 980000979 *Qty: 1 EXAUST PIPE $3.71
Location: 4 Prev | Next Part: 375530166 *Qty: 1 EXPANSION VALVLE $317.38
Location: 5 Prev | Next Part: 980000975 *Qty: 1 RICIRCLE ACTUATOR $91.50
Location: 6 Prev | Next Part: 980010980 *Qty: 1 ELECTROFAN Call
Location: 7 Prev | Next Part: 46451295 *Qty: 1 RELAY $54.57
Location: 8 Prev | Next Part: 385500479 *Qty: 1 WATER INLET DUCT
- Not for GD
$27.65
Location: 8 Prev | Next Part: 385510479 *Qty: 1 WATER INLET DUCT
- Valid for GD
$24.13
Location: 9 Prev | Next Part: 385510481 *Qty: 1 WATER OUTLET DUCT
- Valid for GD
$25.80
Location: 9 Prev | Next Part: 385500481 *Qty: 1 WATER OUTLET DUCT
- Not for GD
$27.65
Location: 10 Prev | Next Part: 980000984 *Qty: 1 FREON VALVLE GASKET $8.48
Location: 11 Prev | Next Part: 980000974 *Qty: 1 ACTUATOR $123.42
Location: 12 Prev | Next Part: 980000999 *Qty: 1 ACTUATOR $94.66
Location: 13 Prev | Next Part: 980000977 *Qty: 1 TT2 AIR SENSOR $25.06
Location: 14 Prev | Next Part: 980000976 *Qty: 1 TT1 AIR SENSOR $25.06
Location: 15 Prev | Next Part: 980001126 *Qty: 1 FLANGE FOR VALVLE $49.30
Location: 16 Prev | Next Part: 385500501 *Qty: 1 GASKET $2.07
Location: 17 Prev | Next Part: 385500502 *Qty: 2 GASKET $3.94
Location: 18 Prev | Next Part: 980001127 *Qty: 1 FREON PIPES
- Not for GD
$108.20
Location: 18 Prev | Next Part: 980001201 *Qty: 1 FREON PIPES
- Valid for GD
$149.96
Location: 19 Prev | Next Part: 385500503 *Qty: 1 UPPER GASKET FOR ADAPTATOR $4.34
Location: 20 Prev | Next Part: 375500458 *Qty: 3 RUBBER $7.40
Location: 21 Prev | Next Part: 375500457 *Qty: 1 RUBBER $4.34
Location: 22 Prev | Next Part: 66412200 *Qty: 1 BRACKET
- Not supplyed in the complete evaporator set
$59.75
Location: 23 Prev | Next Part: 14059214 *Qty: 2 NUT
- Not supplyed in the complete evaporator set
$0.90
Location: 24 Prev | Next Part: 16043124 *Qty: 1 SCREW
- Not supplyed in the complete evaporator set
$0.90
Location: 25 Prev | Next Part: 12646724 *Qty: 1 WASHER
- Not supplyed in the complete evaporator set
$0.90

* Quantity shown indicates the number of pieces used in the diagram.
