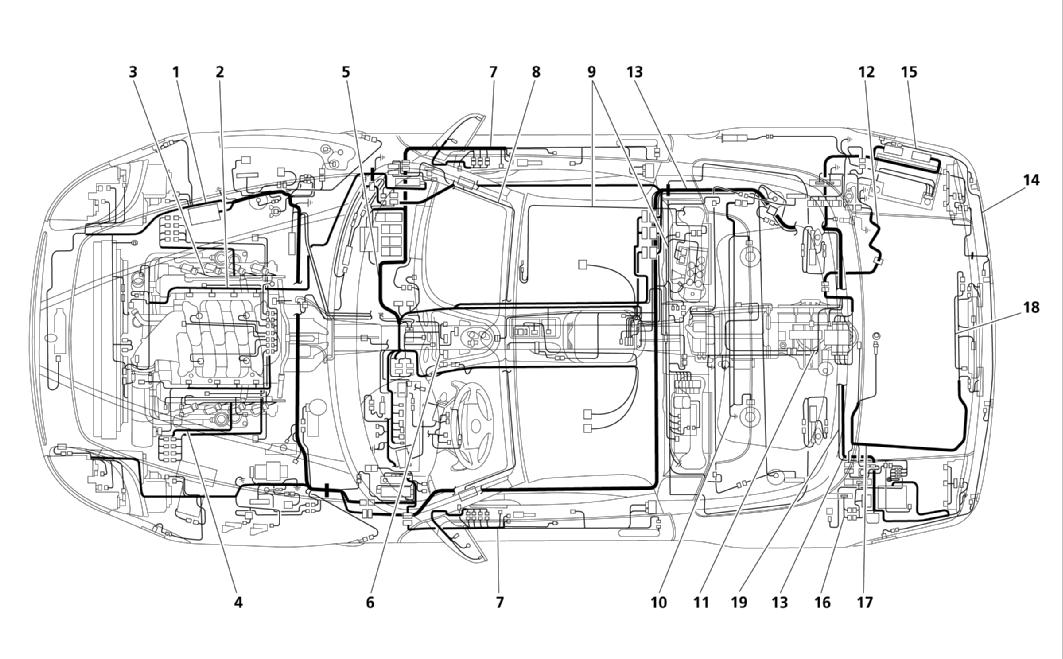

ELECTRICAL SYSTEM

Go to Split View

ELECTRICAL SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 186094 *Qty: 1 ENGINE COMPARTMENT CABLES
- Not for USA, CDN and RHD
$826.62
Location: 1 Prev | Next Part: 188842 *Qty: 1 ENGINE COMPARTMENT CABLES
- Valid for USA and CDN
$953.29
Location: 1 Prev | Next Part: 189425 *Qty: 1 ENGINE COMPARTMENT CABLES
- Valid for RHD
$951.66
Location: 2 Prev | Next Part: 190041 *Qty: 1 IGNITION DEVICE CABLES
- Valid for USA and CDN
$1,205.01
Location: 2 Prev | Next Part: 191275 *Qty: 1 INJECTION DEVICE CABLES
- Valid for RHD - Valid till car Ass. Nr. 9655
$1,101.07
Location: 2 Prev | Next Part: 191271 *Qty: 1 INJECTION DEVICE CABLES
- Not for USA, CDN and RHD - Valid till car Ass. Nr. 9717
$1,188.77
Location: 2 Prev | Next Part: 195034 *Qty: 1 INJECTION DEVICE CABLES
- Valid for RHD - Valid from car Ass. Nr. 9656
$1,265.10
Location: 2 Prev | Next Part: 195032 *Qty: 1 INJECTION DEVICE CABLES
- Not for USA, CDN and RHD - Valid from car Ass. Nr. 9718
Unavailable
Location: 3 Prev | Next Part: 189549 *Qty: 1 RH. HEAD SIDE CABLE
- Valid till engine Nr. 66289 - See also table 7
$250.10
Location: 4 Prev | Next Part: 189550 *Qty: 1 LH. HEAD SIDE CABLE
- Valid till engine Nr. 66289 - See also table 7
$250.10
Location: 5 Prev | Next Part: 195543 *Qty: 1 DASHBOARD CABLE
- Valid for RHD - Valid from car Ass. Nr. 7901
Unavailable
Location: 5 Prev | Next Part: 193157 *Qty: 1 DASHBOARD CABLE
- Valid for RHD - Valid till car Ass. Nr. 7900 - Valid till stock exhaustion after stock exhaustion replaced by 195543
$2,127.44
Location: 5 Prev | Next Part: 195542 *Qty: 1 DASHBOARD CABLE
- Not for RHD - Valid from car Ass. Nr. 7352
$2,224.88
Location: 5 Prev | Next Part: 186093 *Qty: 1 DASHBOARD CABLE
- Not for USA, CDN and RHD - Valid till car Ass. Nr. 7351 - Valid till stock exhaustion after stock exhaustion replaced by 195542
$2,176.16
Location: 6 Prev | Next Part: 184940 *Qty: 1 NAVIGATION SYSTEMCABLES $225.74
Location: 7 Prev | Next Part: 182221 *Qty: 2 DOOR CABLE $265.03
Location: 8 Prev | Next Part: 186096 *Qty: 1 ROOF LIGHT CABLE $58.87
Location: 9 Prev | Next Part: 189744 *Qty: 1 CAPOTE DEVICE CABLES $2,159.92
Location: 10 Prev | Next Part: 193164 *Qty: 1 TANK CABLE
- Not for USA and CDN
Unavailable
Location: 10 Prev | Next Part: 193165 *Qty: 1 TANK CABLE
- Valid for USA and CDN
Unavailable
Location: 11 Prev | Next Part: 184916 *Qty: 1 F1 GEAR CABLE ON GEARBOX
- Valid for F1
$560.28
Location: 12 Prev | Next Part: 186099 *Qty: 1 F1 GEAR CABLE ON BODYWORK
- Valid for F1
$389.76
Location: 13 Prev | Next Part: 193160 *Qty: 1 R.H. LONGITUDINAL CABLE
- Optional - Telephone and CD charger - Not for opt. HI FI system - Not for USA, CDN, RHD and J
Unavailable
Location: 13 Prev | Next Part: 193158 *Qty: 1 R.H. LONGITUDINAL CABLE
- Standard - Not for RHD - Valid from car Ass. Nr. 7352
$1,180.65
Location: 13 Prev | Next Part: 193162 *Qty: 1 R.H. LONGITUDINAL CABLE
- Optional - Telephone, CD charger and HI FI system - Not for RHD
$1,490.83
Location: 13 Prev | Next Part: 193163 *Qty: 1 R.H. LONGITUDINAL CABLE
- Optional - Telephone, CD charger and HI FI system - Valid for RHD
$1,520.06
Location: 13 Prev | Next Part: 188409 *Qty: 1 R.H. LONGITUDINAL CABLE
- Standard - Not for RHD - Valid till car Ass. Nr. 7351 - Valid till stock exhaustion after stock exhaustion replaced by 193158
$1,117.31
Location: 13 Prev | Next Part: 193423 *Qty: 1 R.H. LONGITUDINAL CABLE
- Optional - CD charger - Not for opt. HI FI system - Valid for RHD
Unavailable
Location: 13 Prev | Next Part: 193422 *Qty: 1 R.H. LONGITUDINAL CABLE
- Optional - CD charger - Not for opt. HI FI system - Not for RHD and J
$1,318.69
Location: 13 Prev | Next Part: 193161 *Qty: 1 R.H. LONGITUDINAL CABLE
- Optional - Telephone and CD charger - Not for opt. HI FI system - Valid for RHD
Unavailable
Location: 13 Prev | Next Part: 193159 *Qty: 1 R.H. LONGITUDINAL CABLE
- Standard - Valid for RHD
$1,216.38
Location: 13 Prev | Next Part: 190143 *Qty: 1 R.H. LONGITUDINAL CABLE
- Optional - Telephone - Valid till car Ass. Nr. 7351 - Valid till stock exhaustion after stock exhaustion replaced by 193160 or 193162
$1,325.18
Location: 14 Prev | Next Part: 186662 *Qty: 1 BUMPER PARKING SENSOR CABLE
- Optional - Parking sensor - Not for USA and CDN
$149.07
Location: 14 Prev | Next Part: 186663 *Qty: 1 SIDE MARKERS AND PARKING SENSOR CABLE
- Optional - Parking sensor - Valid for USA and CDN
$105.24
Location: 15 Prev | Next Part: 186674 *Qty: 1 SIDE MARKER CABLE
- Valid for USA and CDN
$44.98
Location: 16 Prev | Next Part: 186265 *Qty: 1 AMPLIFIER CABLES
- Optional - HI FI system - Valid till car Ass. Nr. 7351
$172.14
Location: 17 Prev | Next Part: 186153 *Qty: 1 TRUNK CABLE
- Optional - Telephone - Not for USA, CDN and J - Not for cars GB With outer antenna radio (draw 146 pos. 14) - See also draw 147
$99.56
Location: 17 Prev | Next Part: 190153 *Qty: 1 TRUNK CABLE
- Standard
$72.92
Location: 18 Prev | Next Part: 190142 *Qty: 1 STOP LAMP CABLE $23.87
Location: 19 Prev | Next Part: 195534 *Qty: 1 L.H. LONGITUDINAL CABLE FOR ANTENNA OUTER
- Valid for cars USA and CDN With outer antenna radio (draw 146 pos. 14)
$93.22
Location: 19 Prev | Next Part: 195533 *Qty: 1 L.H. LONGITUDINAL CABLE FOR ANTENNA OUTER
- With arrangement for opt. telephone - Valid for cars GB With outer antenna radio (draw 146 pos. 14) - See also draw 147
Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
