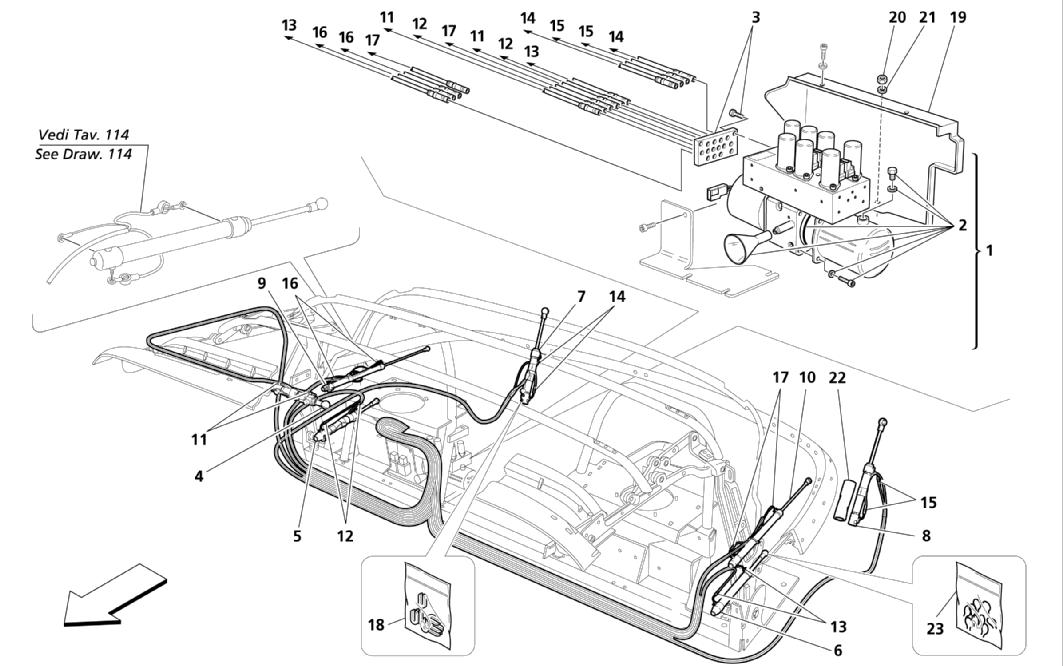

CAPOTE HYDRAULIC SYSTEM

Go to Split View

CAPOTE HYDRAULIC SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66106400 *Qty: 1 COMPLETE ELECTROHYDRAULIC GROUP $6,369.56
Location: 2 Prev | Next Part: 980001092 *Qty: 1 OIL TANK KIT $207.87
Location: 3 Prev | Next Part: 980001093 *Qty: 1 PIPES FIXING PLATE $148.27
Location: 4 Prev | Next Part: 66662600 *Qty: 1 HYDRAULIC CYLINDER ON FRONT CROSS MEMBER $417.37
Location: 5 Prev | Next Part: 66115400 *Qty: 1 R.H. CAPOTE MOVEMENT FOR ELECTROHIDRAULIC CYLINDER $391.38
Location: 6 Prev | Next Part: 66115500 *Qty: 1 L.H. CAPOTE MOVEMENT FOR ELECTRHYDRAULIC CYLINDER $357.28
Location: 7 Prev | Next Part: 66115600 *Qty: 1 R.H. COVER MOVEMENT FOR ELECTOHYDRAULIC CYLYNDER $985.77
Location: 8 Prev | Next Part: 66115700 *Qty: 1 L.H. COVER MOVEMENT FOR ELECTRHYDRAULIC CYLINDER $634.98
Location: 9 Prev | Next Part: 66115800 *Qty: 1 R.H. CAPOTE ARCH MOVEMENT FOR ELECTRHYDRAULIC CYLINDER $1,044.23
Location: 10 Prev | Next Part: 66115900 *Qty: 1 L.H. CAPOTE ARCH MOVEMENT FOR ELECTROHYDRAULIC CYLINDER $1,044.23
Location: 11 Prev | Next Part: 980002002 *Qty: 1 FRONT CROSS MEMBER OIL CYLINDER PIPES KIT $263.09
Location: 12 Prev | Next Part: 980002003 *Qty: 1 R.H. CAPOTE MOVEMENT CYLINDER OIL PIPE KIT $58.95
Location: 13 Prev | Next Part: 980002004 *Qty: 1 L.H. CAPOTE MOVEMENT CYLINDER OIL PIPE KIT $156.39
Location: 14 Prev | Next Part: 980002005 *Qty: 1 R.H. COVER MOVEMENT CYLINDER OIL PIPE KIT $232.23
Location: 15 Prev | Next Part: 980002006 *Qty: 1 L.H. COVER MOVEMENT CYLINDER OIL PIPE KIT $266.34
Location: 16 Prev | Next Part: 980002007 *Qty: 1 R.H. CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT $285.82
Location: 17 Prev | Next Part: 980002008 *Qty: 1 L.H. CAPOTE ARC MOVEMENT CYLINDER OIL PIPE KIT $305.31
Location: 18 Prev | Next Part: 980001094 *Qty: 1 PIPES FIXING CLIP KIT $34.51
Location: 19 Prev | Next Part: 66956400 *Qty: 1 CAPOTE PUMP COVER $46.42
Location: 20 Prev | Next Part: 15896472 *Qty: 2 NUT $0.90
Location: 21 Prev | Next Part: 13577778 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 980002015 *Qty: 1 SHEATHS KIT $75.40
Location: 23 Prev | Next Part: 980002017 *Qty: 1 RINGS KIT $56.08

* Quantity shown indicates the number of pieces used in the diagram.
