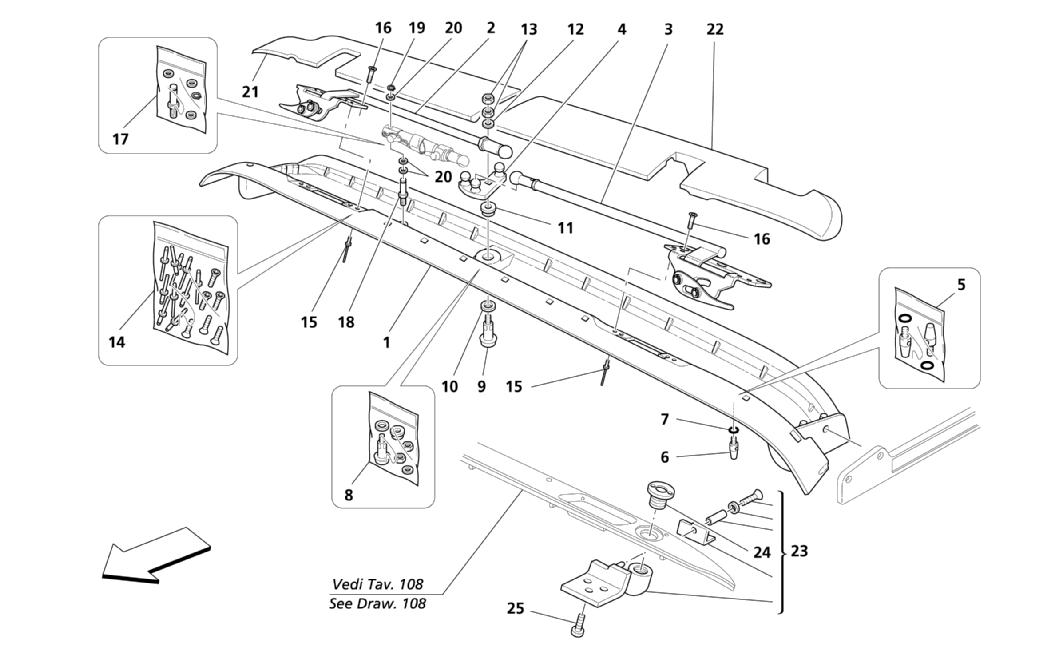

CAPOTE FRONT CLOSING

Go to Split View

CAPOTE FRONT CLOSING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 66104700 *Qty: 1 COMPLETE FRONT CROSS MEMBER $2,923.20
Location: 1 Prev | Next Part: 66118300 *Qty: 1 PAINTED CROSS MEMBER $1,883.84
Location: 2 Prev | Next Part: - *Qty: 1 R.H. FRONT SEAL
- Not as spare part - With complete cross member
Unavailable
Location: 3 Prev | Next Part: - *Qty: 1 L.H. FRONT SEAL
- Not as spare part - Whith complete cross member
Unavailable
Location: 4 Prev | Next Part: 66117100 *Qty: 1 CENTER ROCKER $55.91
Location: 5 Prev | Next Part: 980001080 *Qty: 1 CROSS MEMBER CENTERING PIN KIT $93.18
Location: 6 Prev | Next Part: - *Qty: 2 CENTERING PIN
- Not as spare part - Supplied With cross member centering kit
Unavailable
Location: 7 Prev | Next Part: - *Qty: 2 O.R.GASKET
- Not as spare part - Supplied With cross member centering kit
Unavailable
Location: 8 Prev | Next Part: 980001078 *Qty: 1 LEVER PIN KIT $72.82
Location: 9 Prev | Next Part: - *Qty: 1 PIN
- Not as spare part - Supplied with lever pin kit
Unavailable
Location: 10 Prev | Next Part: - *Qty: 1 WASHER
- Not as spare part - Supplied with lever pin kit
Unavailable
Location: 11 Prev | Next Part: - *Qty: 1 BUSH
- Not as spare part - Supplied with lever pin kit
Unavailable
Location: 12 Prev | Next Part: - *Qty: 1 WASHER
- Not as spare part - Supplied with lever pin kit
Unavailable
Location: 13 Prev | Next Part: - *Qty: 2 NUT
- Not as spare part - Supplied with lever pin kit
Unavailable
Location: 14 Prev | Next Part: 980001077 *Qty: 1 FRONT CROSS MEMBER FIXING KIT $27.26
Location: 15 Prev | Next Part: - *Qty: 10 RIVET
- Not as spare part - Supplied with cross member fixing kit
Unavailable
Location: 16 Prev | Next Part: - *Qty: 6 SCREW
- Not as spare part - Supplied with cross member fixing kit
Unavailable
Location: 17 Prev | Next Part: 980001079 *Qty: 1 HYDRAULIC CYLINDER PIN KIT $23.29
Location: 18 Prev | Next Part: - *Qty: 1 PIN
- Not as spare part - Supplied with hydraulic cylinder pin kit
Unavailable
Location: 19 Prev | Next Part: - *Qty: 1 STOP RING
- Not as spare part - Supplied with hydraulic cylinder pin kit
Unavailable
Location: 20 Prev | Next Part: - *Qty: 3 WASHER
- Not as spare part - Supplied with hydraulic cylinder pin kit
Unavailable
Location: 21 Prev | Next Part: 66729600 *Qty: 1 R.H. CROSS MEMBER LOCK COVER $29.85
Location: 22 Prev | Next Part: 66729700 *Qty: 1 L.H. CROSS MEMBER LOCK COVER $53.49
Location: 23 Prev | Next Part: 66106600 *Qty: 1 L.H. CAPOTE HOOK SUPPORT $81.44
Location: 23 Prev | Next Part: 66106500 *Qty: 1 R.H. CAPOTE HOOK SUPPORT $81.44
Location: 24 Prev | Next Part: 66607100 *Qty: 2 RING NUT $7.07
Location: 25 Prev | Next Part: 14442021 *Qty: 6 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
