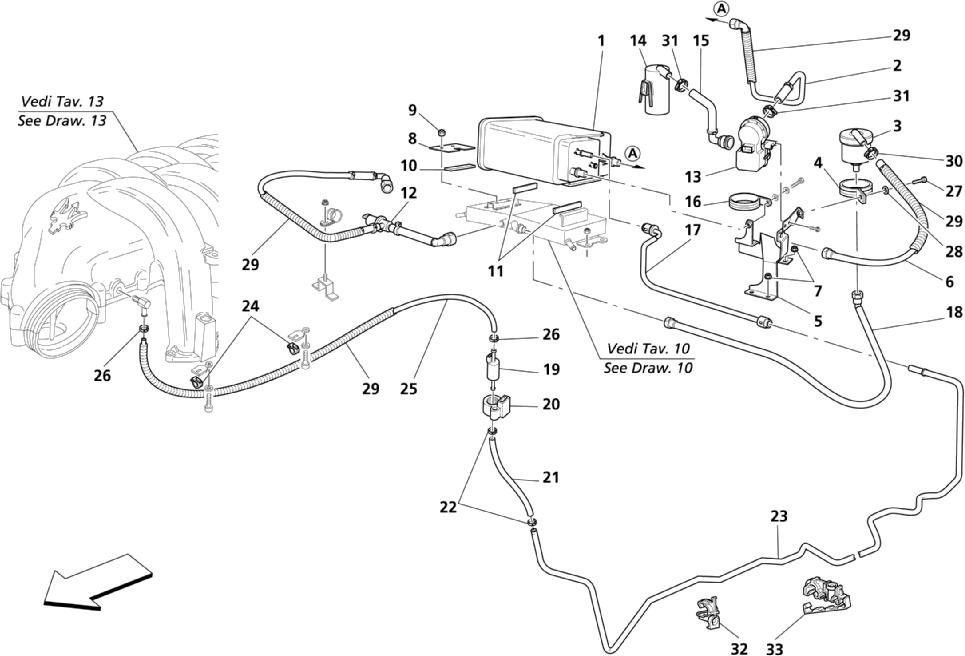

ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN

Go to Split View

ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 185135 *Qty: 1 FUEL VAPOR FILTER $245.50
Location: 2 Prev | Next Part: 184555 *Qty: 1 PIPE FROM CANISTER TO PUMP $190.01
Location: 3 Prev | Next Part: 180573 *Qty: 1 ROLL-OVER VALVE $112.28
Location: 4 Prev | Next Part: 189894 *Qty: 1 BRACKET $239.84
Location: 5 Prev | Next Part: 189895 *Qty: 1 BRACKET $239.84
Location: 6 Prev | Next Part: 184553 *Qty: 1 PIPE FROM ROLL OVER TO CANISTER $50.34
Location: 7 Prev | Next Part: 12574211 *Qty: 4 NUT Superseded
Location: 8 Prev | Next Part: 186920 *Qty: 1 FUEL VAPOR FILTER BRACKET $4.14
Location: 9 Prev | Next Part: 12574211 *Qty: 2 NUT Superseded
Location: 10 Prev | Next Part: 184766 *Qty: 1 RUBBER THICKNESS $10.01
Location: 11 Prev | Next Part: 184221 *Qty: 2 RUBBER THICKNESS $2.93
Location: 12 Prev | Next Part: 186003 *Qty: 1 PIERBURG VALVE COMPLETE TUBE $230.61
Location: 13 Prev | Next Part: 185405 *Qty: 1 DIAGNOSIS PUMP $179.26
Location: 14 Prev | Next Part: 183221 *Qty: 1 FILTER FOR OBD PUMP $23.43
Location: 15 Prev | Next Part: 184554 *Qty: 1 UNIONS COMPLETE TUBE $454.72
Location: 16 Prev | Next Part: 189893 *Qty: 1 BRACKET $52.28
Location: 17 Prev | Next Part: 184557 *Qty: 1 PIPE FROM CANISTER TO UNDERFLOOR $22.57
Location: 18 Prev | Next Part: 187468 *Qty: 1 PIPE FROM DISAREATOR TO ROLL-OVER $454.72
Location: 19 Prev | Next Part: 180861 *Qty: 1 WASHING VALVE $32.48
Location: 20 Prev | Next Part: 174623 *Qty: 1 BUFFER FOR SUPPORT $11.13
Location: 21 Prev | Next Part: 181703 *Qty: 1 WASHING VALVE INLET TUBE $8.44
Location: 22 Prev | Next Part: 13432070 *Qty: 2 SCREW COLLAR $0.90
Location: 23 Prev | Next Part: 190518 *Qty: 1 COMPLETE UNDERFLOOR TUBE $30.21
Location: 24 Prev | Next Part: 10441790 *Qty: 2 BRACKET WITH SHEATH
- Not for cars with bracket 190509 - (See draw 13 pos. 29)
$0.90
Location: 24 Prev | Next Part: 178430 *Qty: 2 CLIP
- Valid for cars with bracket 190509 - (See draw 13 pos. 29)
$0.90
Location: 25 Prev | Next Part: 181704 *Qty: 1 WASHING VALVE OUTLET PIPE $31.02
Location: 26 Prev | Next Part: 190471 *Qty: 2 FIXING CLIP $1.98
Location: 27 Prev | Next Part: 10902021 *Qty: 1 SCREW Superseded
Location: 28 Prev | Next Part: 14499324 *Qty: 1 WASHER Superseded
Location: 29 Prev | Next Part: 318720333 *Qty: 1 PIPE
- Supplied in meters - (Minimum quantity 1m. or multiples)
$7.23
Location: 30 Prev | Next Part: 13433370 *Qty: 1 COLLAR FOR SLEEVE $0.94
Location: 31 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 32 Prev | Next Part: 187840 *Qty: 1 CLIP
- (Quantity defined during at assembly)
$1.20
Location: 33 Prev | Next Part: 190409 *Qty: 1 CLIP
- (Quantity defined during at assembly)
$5.80

* Quantity shown indicates the number of pieces used in the diagram.
